9
Measure the height of the front and back of the cut-out 1.
with a tape measure.
Measure the height of of the front and back of the
2.
dishwasher.
Using a crescent wrench, loosen the leg nut on all four
3.
legs and turn the legs to adjust them. The maximum
height of the dishwasher must be 1/8” lower than the
maximum height of the cut-out.
Remove the lower rack from the dishwasher and place 4.
a level on the tank side wall rack guides to verify the
unit is level front to back. To verify left to right level,
place a level on the front door jamb.
Adjust the legs until the unit is level and does not
5.
exceed the height specifications in step 3.
Tighten the leg nut to the chassis to secure the leg in
6.
place.
NOtE: The leg nuts can be removed to make the
dishwasher lower. See page 10.
Plumbing Connections
Connect one end of the 3/8” flexible braided fill hose to 1.
the water supply valve.
Route the hose through the utility access hole in the
2.
side of the appliance cut-out. Put the unconnected end
of the hose over a bucket. Turn on the water to clean
any debris out of the supply line and fill the hose for
leak testing. Turn the valve off.
Keeping as much water as possible in the hose, route
3.
it through the bottom of the dishwasher chassis and
connect it to the water inlet. Access the water inlet
through the hole on the left side of the chassis.
4. Turn on the water valve and check both ends for leaks.
5. Using the included plastic fasteners, attach the left side
access panel. NOTE: The top edge of the access panel
slides behind the chassis corner as shown below.
6. Slide the drain hose into the utility access hole in the
side of the appliance cut-out. See facing page.

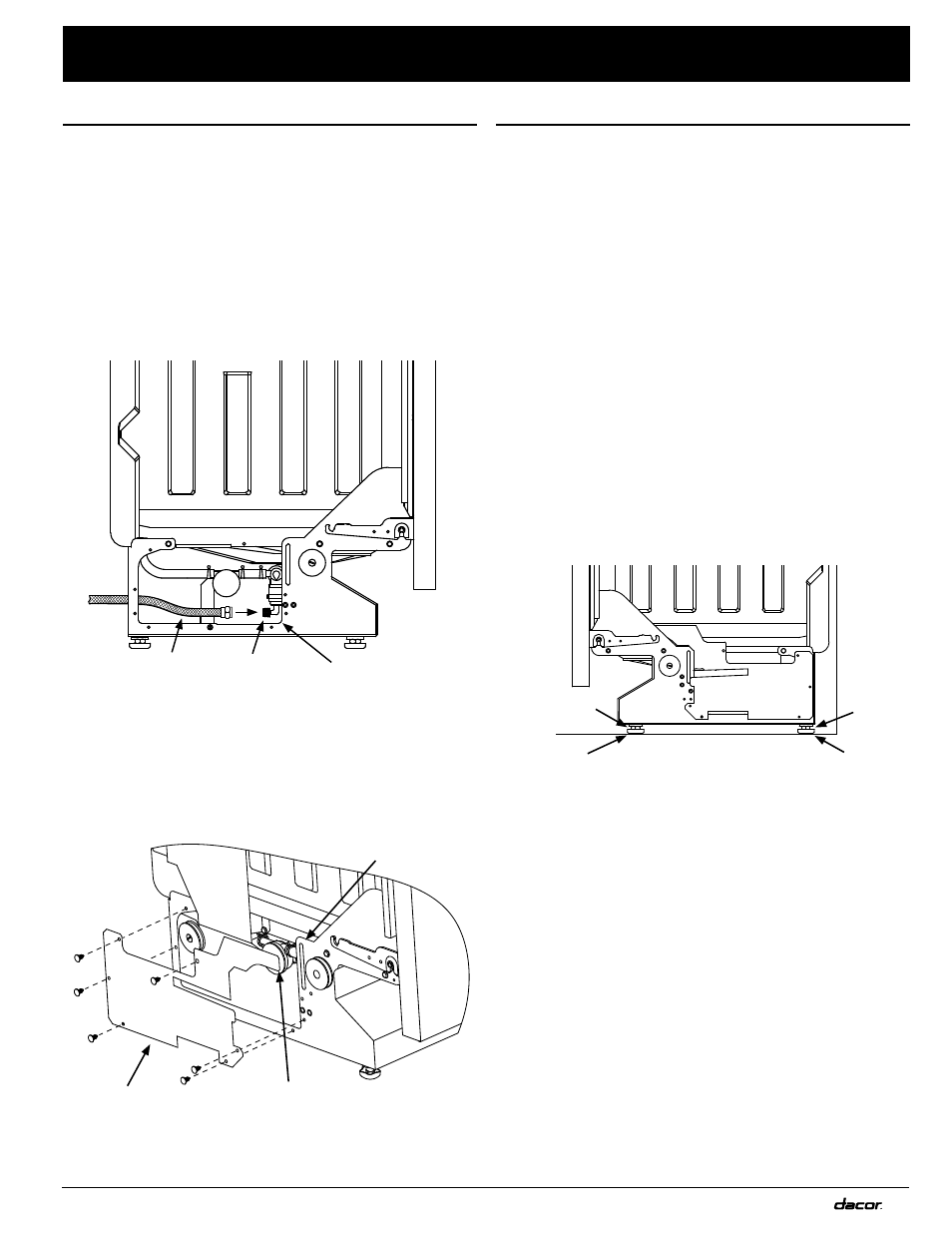

Installation Instructions
Front
leg
Rear
leg
Leg
nut
Leg nut
Dishwasher Left Side
Fill hose Water inlet Access hole in side
Chassis
corner
Slide this edge behind
chassis corner
Access panel
Installing the Unit in the Cabinet
Make sure the water valve is off before sliding the unit •
into the cabinet.
Care should be exercised when the appliance is
•
installed or removed to reduce the likelihood of damage
to the power cord or hoses.
Before sliding the unit into the cut-out, make sure the
•
hoses and wiring are positioned in the utility cut-outs as
shown on the facing page.
Level the Dishwasher
Level the dishwasher using the adjustable legs on the front
and back before sliding the unit into the cut-out.
