Preparing for Installation

WARNING

Observe all governing codes and ordinances during

planning and installation. Contact your local building

department for further information.

Preparing the Location

Carefully check the location where the dishwasher is to be

installed. Put it in a location with convenient access. Make

certain that electrical power can be provided in the selected

location.
Plan the installation so that the appliance can be removed

if service is required.

IMPORtANt: Follow all cabinet and countertop minimum

dimensions shown below to insure safe operation.
Prepare the installation location as shown below. All

minimum product dimensions be must met or exceeded

(see page 3). Dimensions shown provide minimum

clearances, unless otherwise noted.
The floor must be level and all cut-out surfaces must be

at right angles. The dishwasher must be secured to the

adjacent cabinets using the anti-tip brackets for safety and

proper operation.

Fasten anti-tip anchors into material

under counter top and adjacent cablinets

Access Hole for Utilities

90°

90°

24” (61.0 cm)

24” (61.0 cm)

8” H X 5“ D

(20.3 cm X 12.7 cm)

33 3/4”

(85.7 cm)

to

36 1/4”

(92.1 cm)

Min. Countertop 25" (63.5 cm)

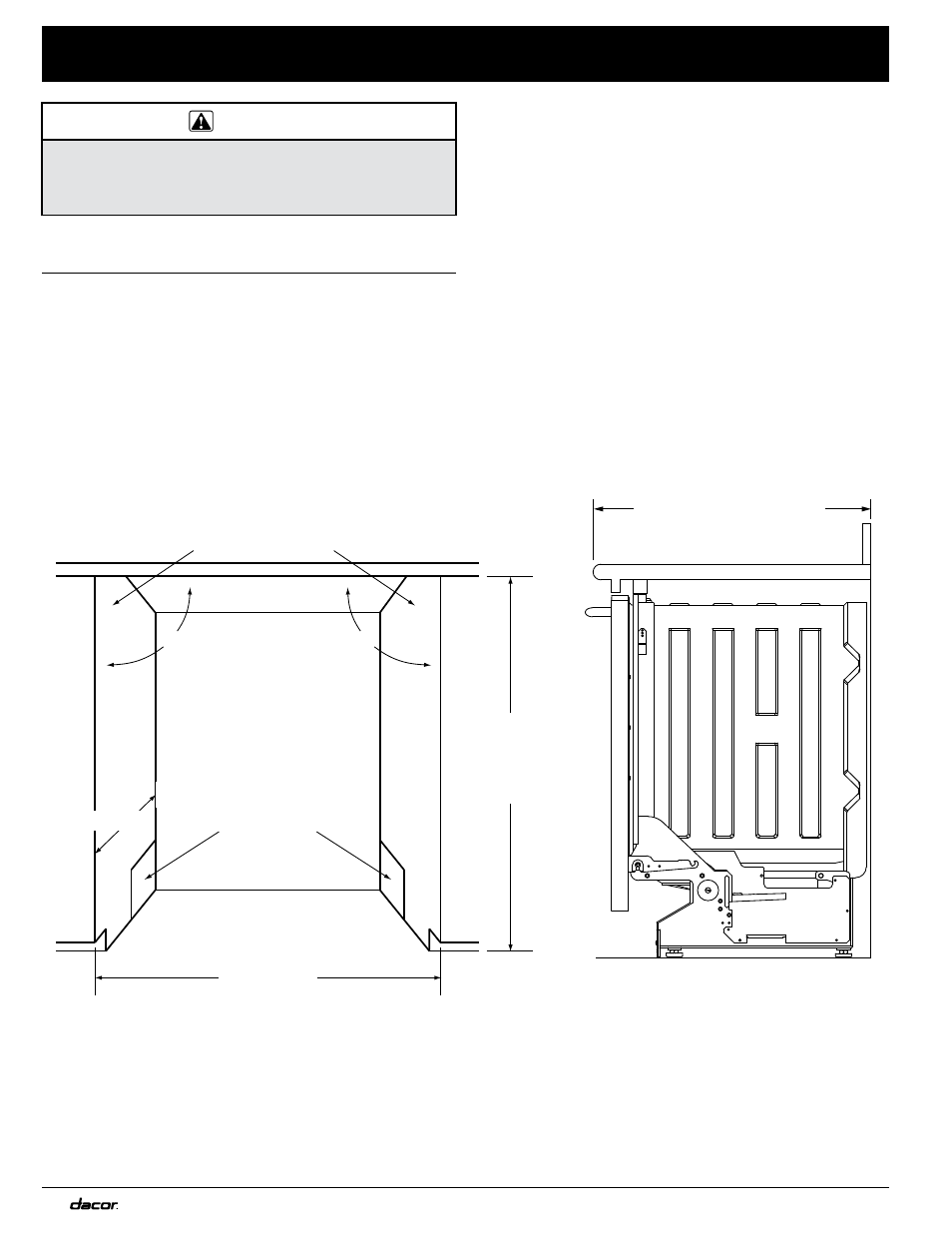

CUt-OUt FRONt VIEW

CABINEt INStALLAtION SIDE VIEW
