Calibration Mode

Compass Calibration

1. Fast altering Flight Mode switch between modes. When LED flashing red and green, the

controller enters Calibration Mode.

2. Throttle down to lowest, the LED shows single green flashing.
3. Fast altering Flight Mode switch again. When green lamp is solid on, start the compass

calibration.

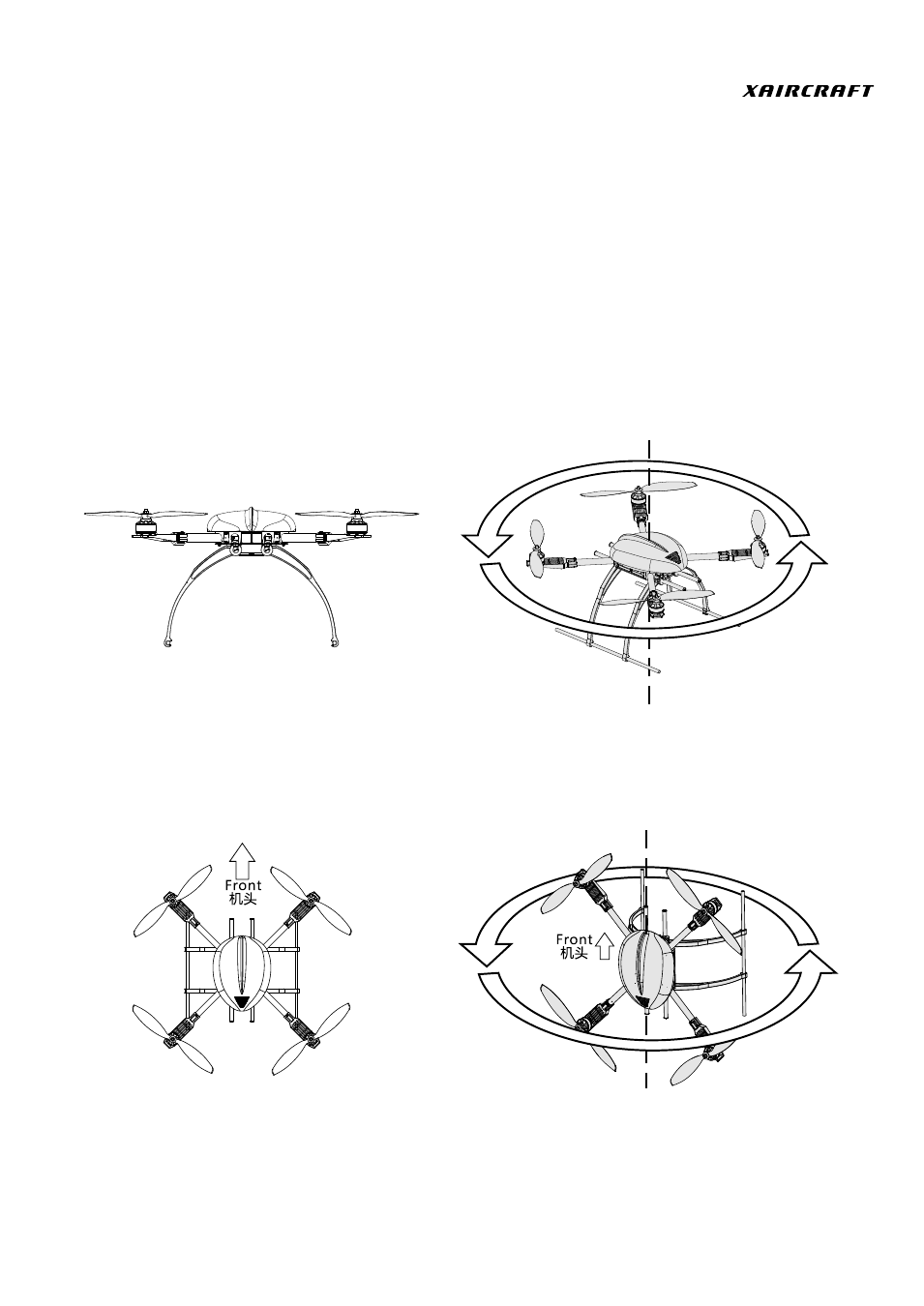

4. Horizontal Calibration: put copter horizontal and then revolve slowly (green lamp flashing fast

when revolving, see diagram below). Until LED shows slow green flashing then enter next
step.

Copter stays horizontal

Revolving slowly until slow green LED flashing

5. Vertical Calibration A: Copter head up, and then revolve the copter slowly. Until LED shows

slow green flashing then enter next step.

Copter head up

Revolving slowly until LED flashing
