Notes for Use

Due to geographical limit and magnet influence on GPS module, please note:
1. Do not use GPS ATT Mode and Return to Home function in the areas which suffer from

magnetic interference, for example, between buildings or indoor.

2. Do not use GPS ATT Mode and Return to Home function in polar region.
3. GPS module should avoid high voltage lines, and keep cables tidy around GPS.
4. When calibrating the compass, you do not have any electronic or magnetic objects such as

cell phones.

Installation

Install MiniX Modules

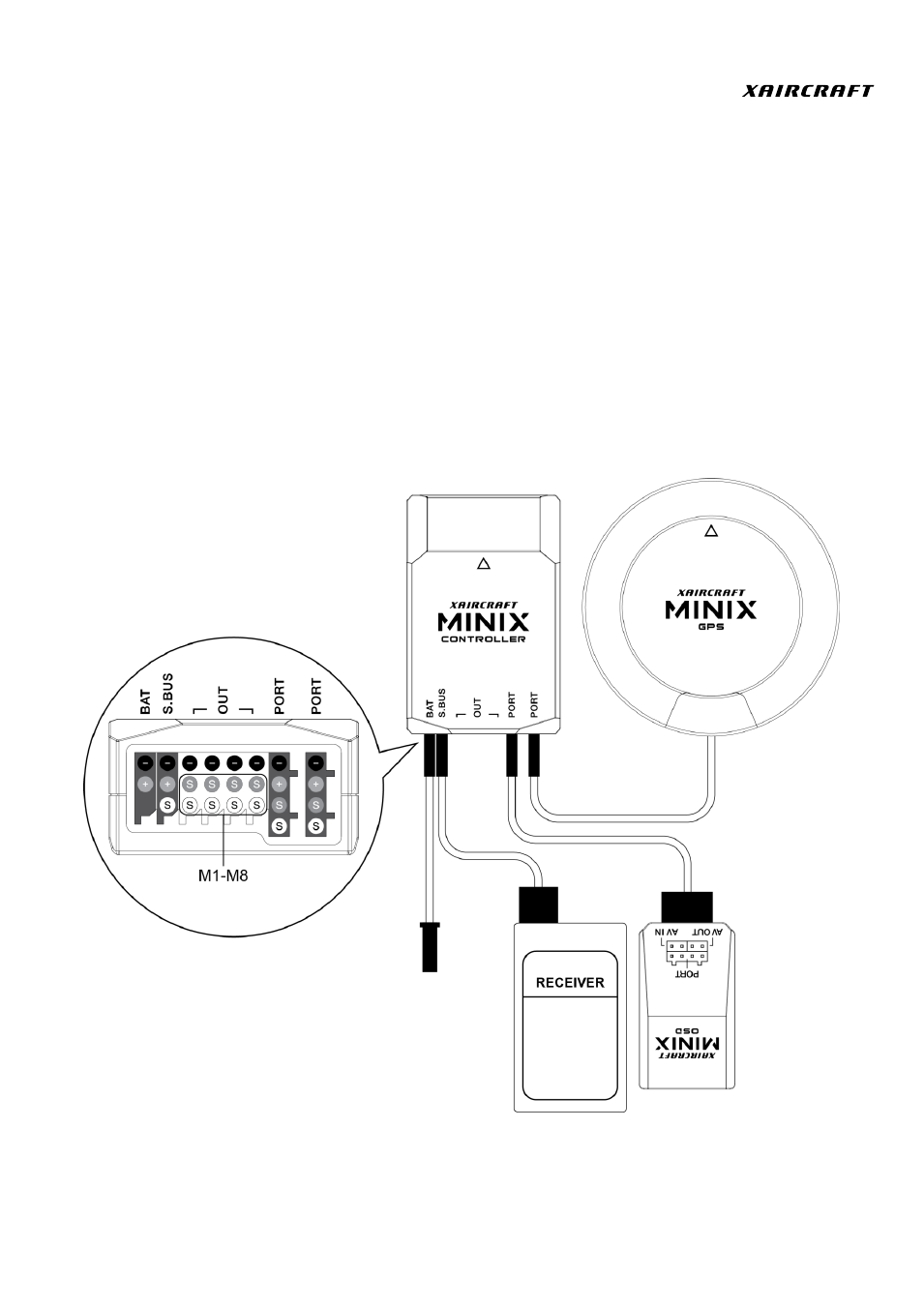

Connect Flight Controller, GPS Module, OSD Module as diagram shows.
