Secure the air conditioning silencer and the

oil drain hose to the mounting bracket

using the adel clamp, #10 bolt and washer.

(See Fig. 8.2-g.)

*K. Route the oil drain hose down to the oil pan

tube previously installed. The hose must be

routed downhill, free of dips and kinks. Trim

the hose end if necessary, slide the hose

onto the drain tube and secure it with a #8

hose clamp. Support the fitting in the oil

pan with a wrench while tightening the

drain tube fitting.

*L. Route the oil feed hose next to the drain

hose, down to the feed fitting and secure.

Trim 1" of hose from the radiator end of the

upper radiator hose (straight portion). (See

Fig. 9-b.) Cut the radiator hose, into 2

pieces in the middle of the upper straight

section.

Install the supplied stainless steel radiator

tube into the separated radiator hose and

secure with the supplied clamps. Reinstall

radiator hose, and refill radiator (see Fig.

9-a).

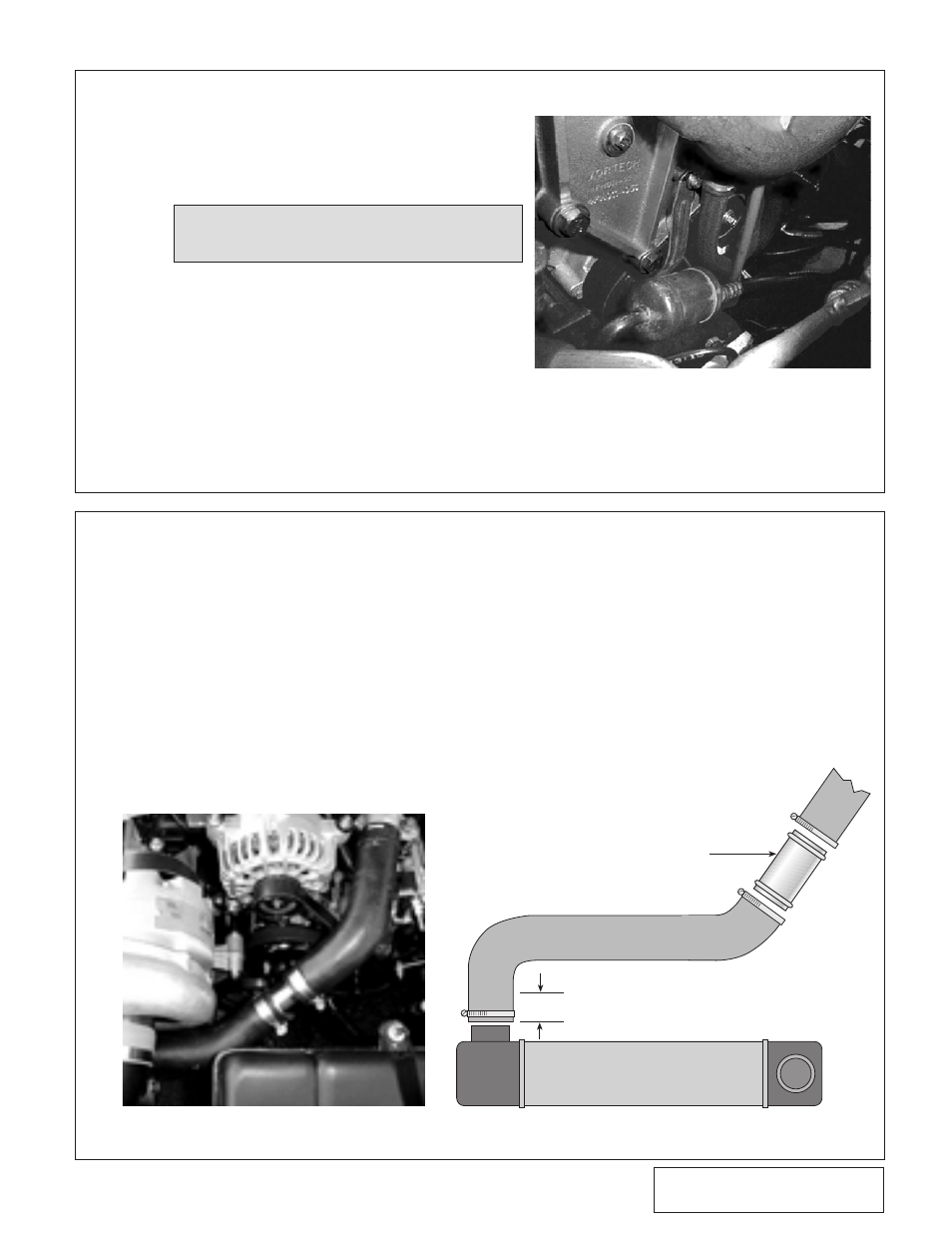

Fig. 9-a

Fig. 8.2-g / Air Conditioning Silencer

Fig. 9-b

NOTE: Minor bending of the air

conditioning lines may be

necessary.

8.2 MAIN BRACkET ASSEMBLY (2000-2004 MODELS ONLY), CONT’D.

9. COOLANT HOSE MODIFICATION

RADIATOR

TRIM 1”

SUPPLIED TUBE

* Applies to "engine oil-fed" units only. V3 applications skip these steps.
