Vortech 1996-2004 Ford 4.6 Mustang GT User Manual

Page 28

P/N: 4FL020-010

14APR08 v3.0 MusGT Bull(4FLv3.0)

NOTE: When mounting the supercharger bracket assembly to the front

cover, make sure the wiring harness support bracket is sandwiched

in-between the timing cover and the Vortech aluminum bracket in

position #1. (See Fig. 8.2d.)

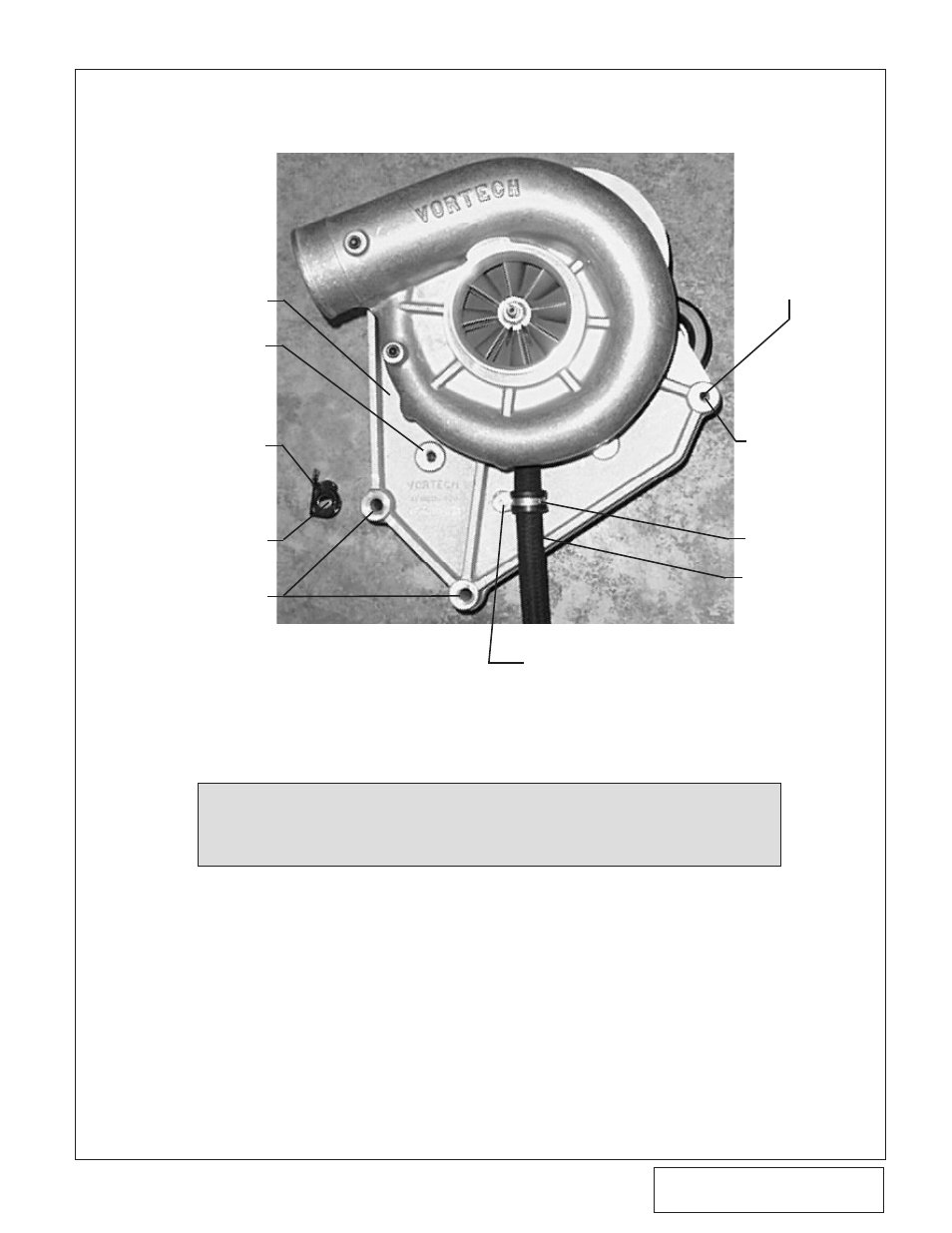

Fig. 8.2-d / Supercharger-Front View

8.2 MAIN BRACkET ASSEMBLY (2000-2004 MODELS ONLY), CONT’D.

SUPPLIED SPACER

(2.249"- GT Models

/2.049" Bullitt

Models) MUST BE

SANDWICHED

BETWEEN THE

ALTERNATOR AND

SUPERCHARGER

MOUNTING BRACKET

VORTECH MOUNTING

BRACKET

6mm x 50mm

BOLT & WASHER

ENLARGE TO 27/64"

10-24 x 1/2" BOLT AND WASHER

OIL DRAIN

HOSE (Oil-fed

models only

8mm x 140mm

BOLT & WASHER

ADEL CLAMP

AIR CONDITIONING

SILENCER BRACKET

(SANDWICH TABS BETWEEN

ENGINE COVER AND TIMING

SUPERCHARGER BRACKET)

2001-2004 MODELS - USE

THE

SUPPLIED 10mm x .06 THICK

WASHER IN THIS POSITION

1999-2000 MODELS -

10mm x 140mm BOLTS AND

WASHERS

2001 MODELS - 8mm x 140

BOLTS & WASHERS
