Speaker-level connections – Velodyne Wi-Q User Manual
Page 19

19
Subwoofer Controls/Connections/Features
Wi-Q User’s Manual
Speaker-Level Connections
Use the speaker-level jacks to connect the subwoofer directly to the speaker outputs of an integrated
amplifier or receiver. Your amplifier bears no additional load when you use these high-impedance
inputs.
With speaker-level connections, use a high-quality speaker cable that mates well with the
connectors. Be very careful to avoid any loose strands or frayed wires that may result in a short and
damage your equipment. Cables of extremely large size are not required due to the low current draw
of this type of connection. Extremely large gauge wire may not properly fit in the terminals and may
result in a poor connection or short circuit.

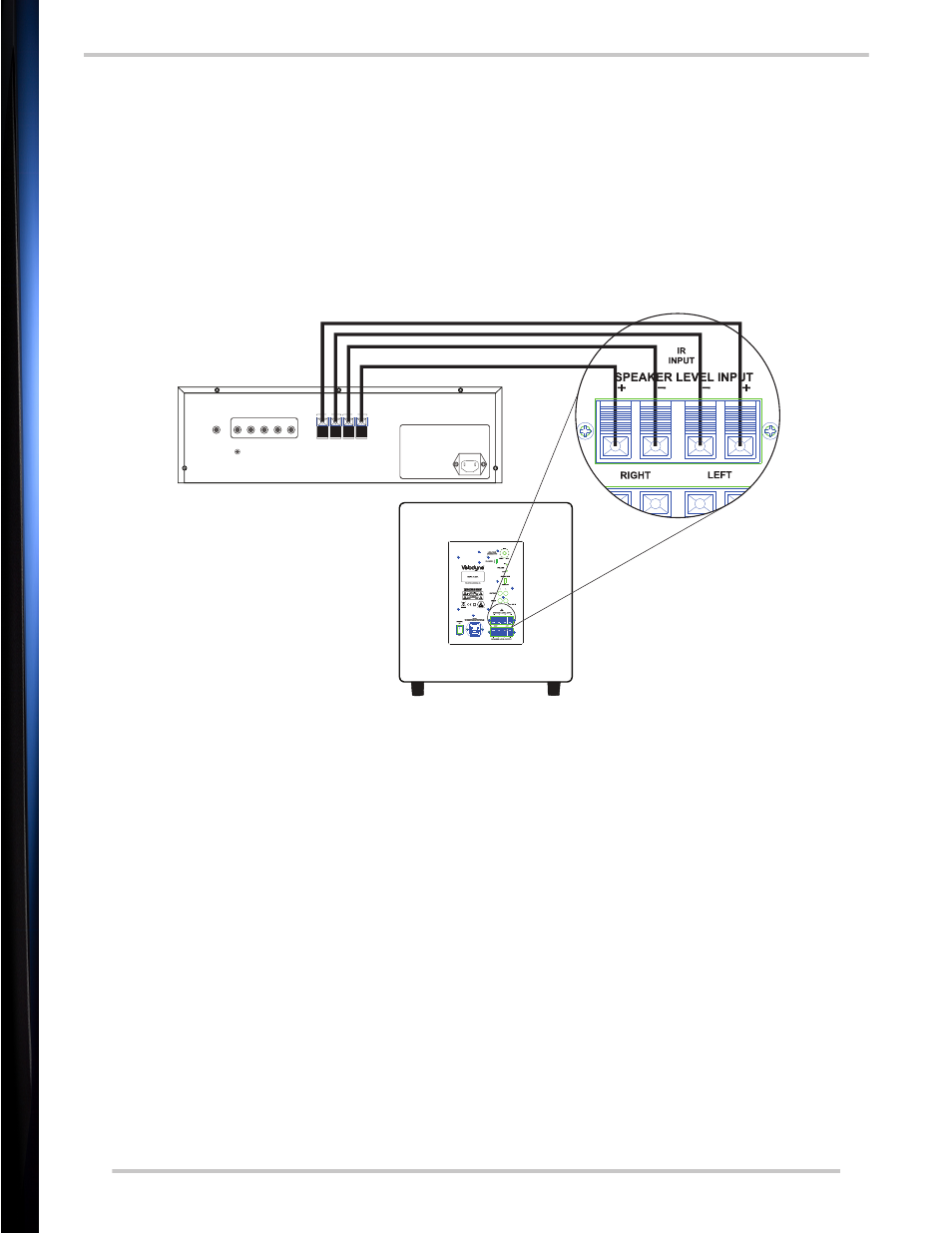

Figure 11: High-Level Subwoofer Connection
LFE
Front
Center
Surround
L
R
L
R
Front
+
-
+
-
12v
Trigger
