Connect Wireless Transmitter to Audio Receiver

Use one of the following two setups to connect the wireless transmitter to receiver:

SETUP #1: MOST COMMON (RECEIVER HAS LFE/SUB OUTPUT)

[ 5 ]

W iConnect System User’s Manual

SET UP

SETUP #1:

MOST COMMON

(RECEIVER LFE/SUB OUTPUT)

This setup requires one RCA cable.

SETUP #2:

LESS COMMON

(NO RECEIVER LFE/SUB OUTPUT)

This setup requires one RCA cable for

each of the L and R channels.

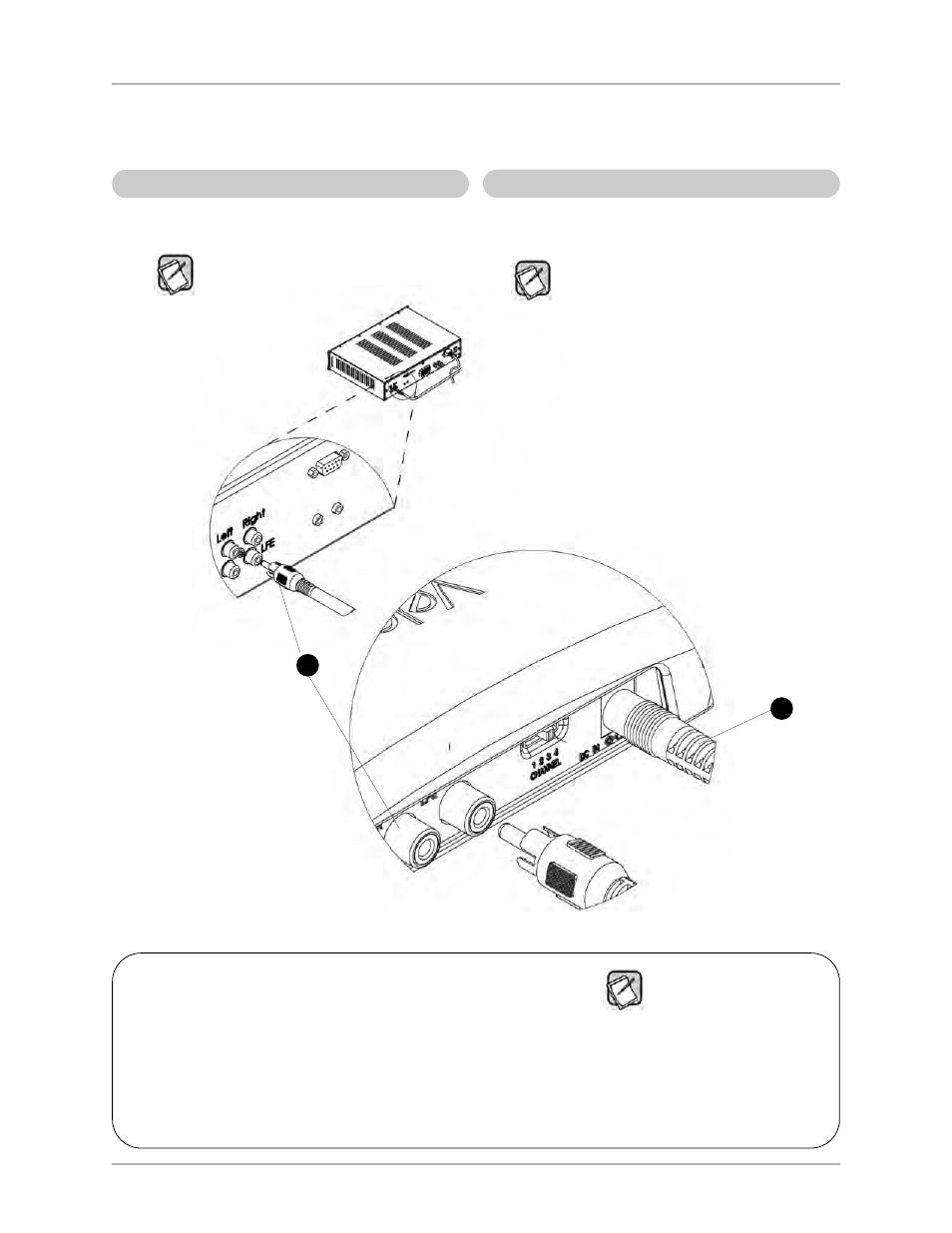

1. Use one of the RCA cables supplied

to connect the wireless transmitter’s
LFE input to your receiver’s LFE or
SUB output. Connect with one
lead only.

2. Plug the wireless transmitter’s 5V DC

power adapter into the back of the
wireless transmitter. Plug the other

end of the adapter into a power outlet.

3. go to the Select Receiver Options

for Optimal Subwoofer Performance
instructions next.

The WiConnect System receiver
must be within 50 feet (15

meters) from its transmitter to be able to
receive the wireless signal. Also, make
sure that the same CHANNEL is selected
on both the transmitter and receiver.
