Mount Wireless Transmitter or Receiver on Wall (Optional)
Optionally, you can mount the wireless transmitter or receiver on the wall or place in a location that better organizes your audio components.
The WiConnect System doesn’t have to be visually in view in the room to function properly

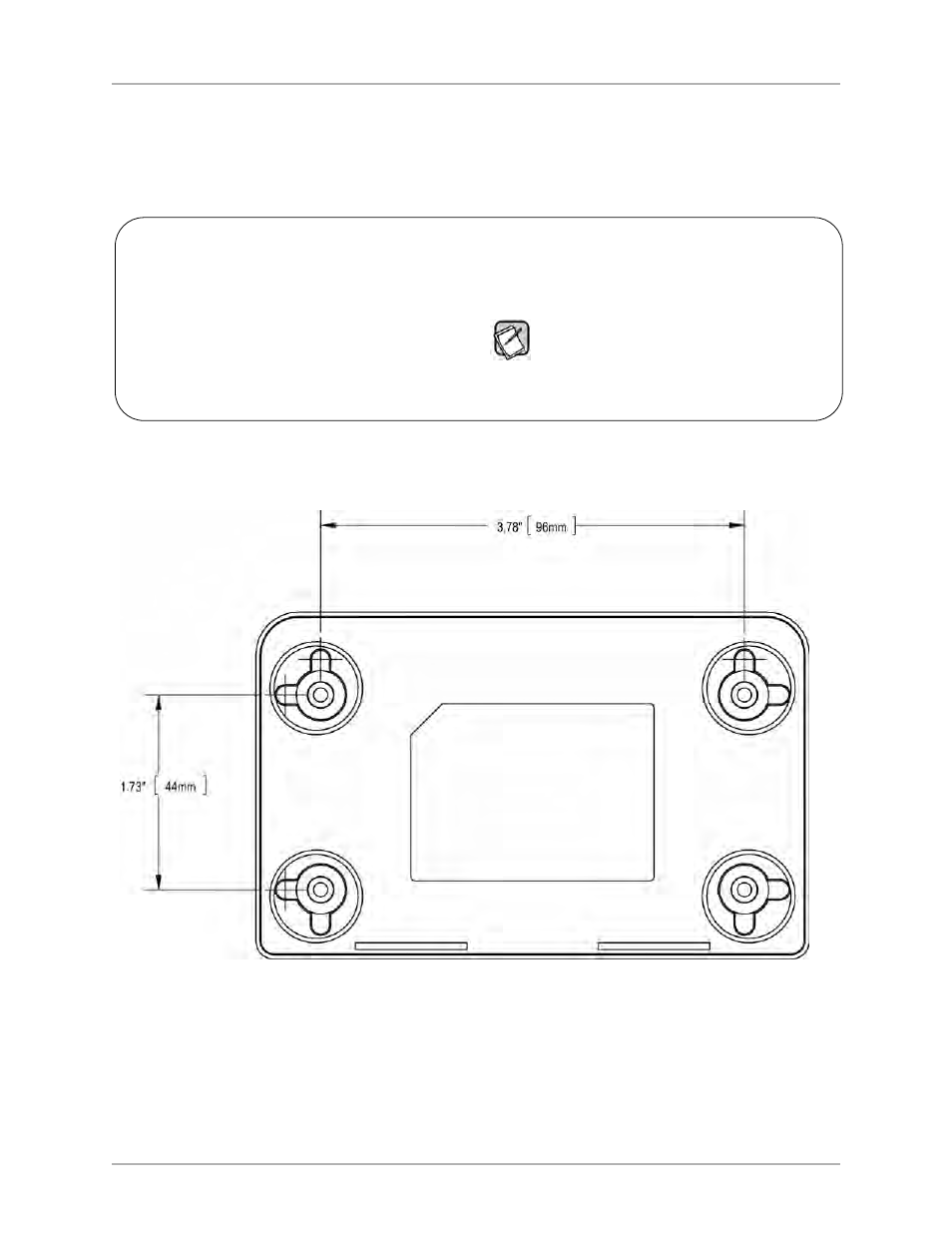

wireless Transmitter Mounting Template
[ 10 ]
W iConnect System User’s Manual
SET UP
1. Use the template below to mark the mounting locations on the
wall. Mark the two screw locations for either the horizontal or
vertical mounting orientation.
2. Hand turn one of the included self-tapping wood screws into
each marked location. Tighten the screws until about 1/8”
(3.17mm) of the screw shank is exposed.
3. Hook two of the slotted holes on back of the wireless
transmitter to the two screws. There is no right way up for
the transmitter. It can be mounted in any orientation.
The provided wood screws aren’t suitable for stone
or other hard wall surfaces. If you can’t hand drive
the screws, you may need to drill holes and provide other
wall anchors.
