Velodyne WiConnect User Manual
Page 6

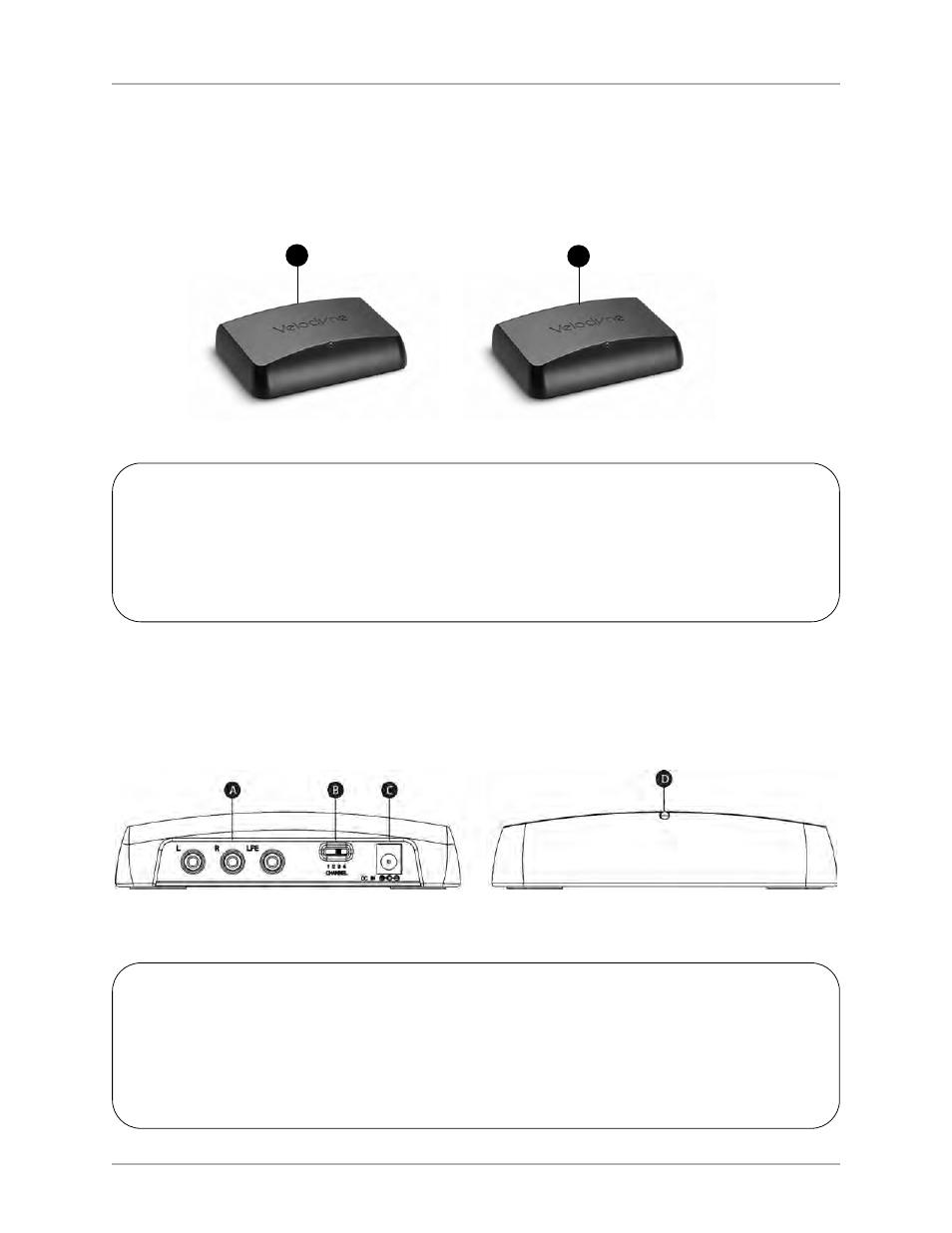

Box Contents
Now that you’ve unpacked the WiConnect System, make sure you have the components and Velodyne supplied accessories shown below.
If any components or Velodyne supplied accessories are missing or damaged, contact the retailer where you purchased this product.
wireless Transmitter
[ 3 ]
W iConnect System User’s Manual
SET UP
Components
A. Wireless transmitter
b. Wireless receiver
Velodyne Supplied Accessories
• (2) 5V DC power adapters for
wireless transmitter.
• Self-tapping wood screws (2) for
wireless transmitter mounting.
• (2) 1 meter RCA cables. One for
connecting wireless transmitter to
receiver, and the second for connecting
wireless receiver to subwoofer.
b
A. INPUTS
• L and R: Inputs for connecting to your
receiver’s RCA output.
• LFE: Output for connecting to your
receiver’s LFE output.
b. ChANNEl SElECTOR: Switch for
choosing the broadcast frequency by
CHANNEL. This CHANNEL selector
switch of the WiConnect System
receiver should be set to the same
CHANNEL as the transmitter.
C. 5V dC Power adapter socket
d. blUE lEd: Indicates transmitter
is active.
A
