34 SCSI Channel Configurations
StorCase Technology, Inc. InfoStation User's Guide - Rev. B01

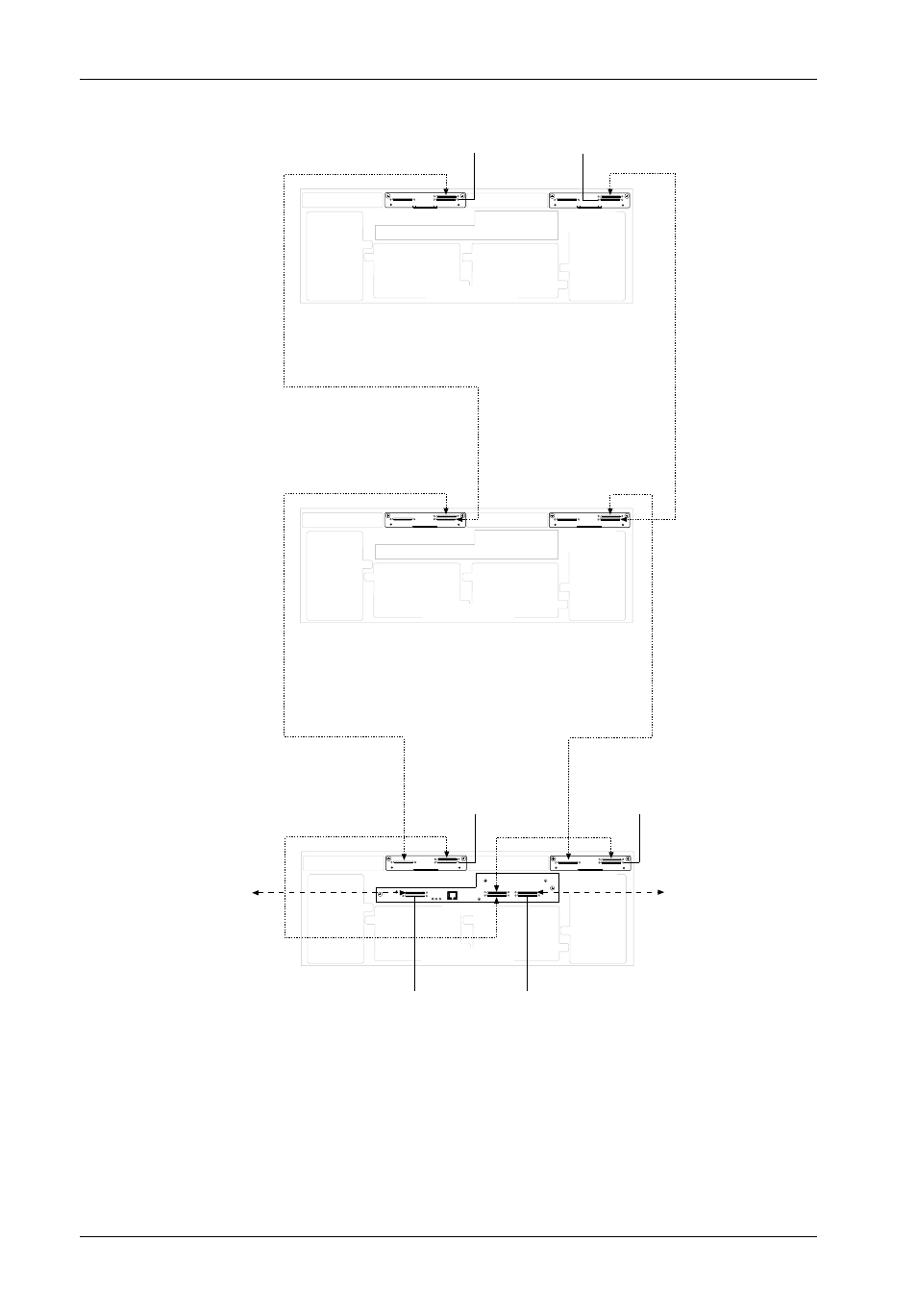

Figure 15: Typical InfoStation RAID Module Dual SCSI Host Configuration
(Multiple InfoStation)
IFS_RAID22
Disk Ch. 1
(4 Disks)
Disk Ch. 2
(5 Disks)
Terminator Terminator
Terminator Terminator
To Host 0 To Host 1
I/O Repeater
Module #2
I/O Repeater
Module #1
RAID Module
Disk Ch. 2
(5 Disks)
I/O Repeater
Module #2
I/O Repeater
Module #1
Terminator Terminator
I/O Repeater
Module #2
I/O Repeater
Module #1
Disk Ch. 1
(4 Disks)
Disk Ch. 2
(5 Disks)
Disk Ch. 1
(4 Disks)
InfoStation #3
InfoStation #2
InfoStation #1
NOTE: Maximum 15 Disks per SCSI Channel
