InfoStation User's Guide - Rev. B01 StorCase Technology, Inc.
SCSI Channel Configurations 33
IFS_RAID21
Disk Ch. 1
(4 Disks)
Disk Ch. 2
(5 Disks)
Terminator Terminator
Terminator Terminator
To Host 0 To Host 1
I/O Repeater
Module #2
I/O Repeater
Module #1
RAID Module

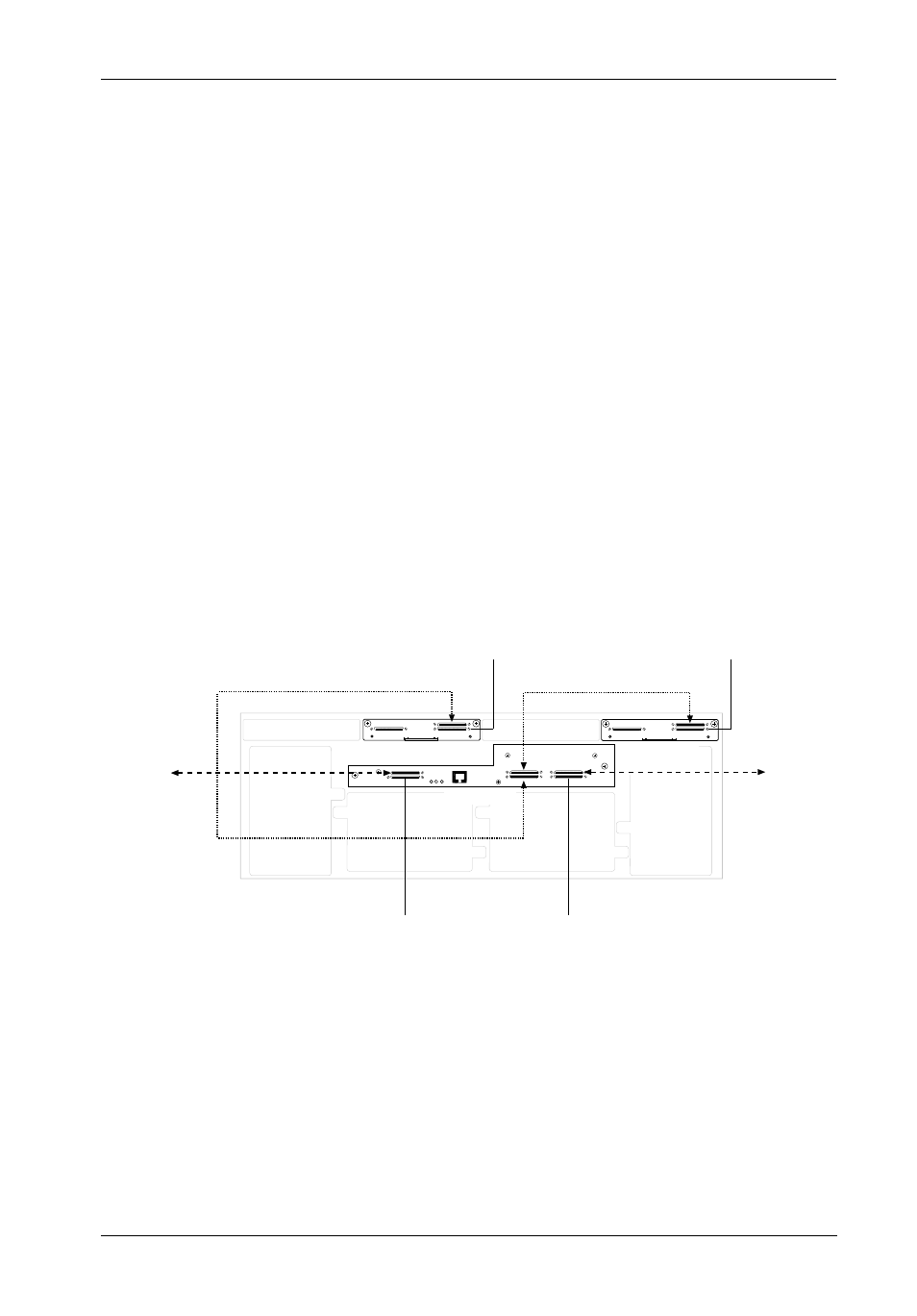

Figure 14: Typical InfoStation RAID Module Dual SCSI Host Configuration
(Single InfoStation)
RAID CHANNEL CONFIGURATIONS
NOTE: The installation, configuration, and use of the DXINFOSTATION-160/RAID
module option for the StorCase InfoStation chassis requires a certain level
of expertise and experience on the part of the user/integrator. Since there
are many configuration options and variables (ie. host platforms, applica-
tions, etc), only general guidelines will be discussed in this User's Guide.
CAUTION: Offset VHDCI cable connectors must be used for proper fit. Failure to use
proper cables may result in damage to the I/O VHDCI connectors on the
InfoStation I/O repeater modules and RAID Module! RAID Controller "Kits"
containing external I/O cables are available; contact StorCase for further
ordering information.
Typical RAID Channel Configurations
