D89-0000-0187 Rev. A04 StorCase Technology, Inc.
S30A110 9
SAF-TE Board with I/O Board Configuration
NOTE: The optional I/O Board is available as an upgrade (your particular DS550 may
or may not already be equipped with I/O Board). Contact StorCase for further
ordering information.
1. Connect one end of the I/O Cable (provided) to the black I/O connector located on
top of the SAF-TE Board; connect the remaining end of the I/O Cable to the I/O Board
(not included) as shown in Figure 6. Make sure to fold the cable as shown in Figure
6 for proper fit.
2. Connect one end of the I 2 C Cable (provided) to the I 2 C connector located on the
SAF-TE Board (Figure 6); connect the remaining end of the I 2 C Cable to the I 2 C
Connector (JB1) located on the DS550 Power Strip (Figure 7).
3. Connect one end of the DC Power Cable (provided) to the DC Power Connector
located on the SAF-TE Board (Figure 6); connect the remaining end of the DC Power
Cable to the DS550 Power Strip (Figure 7).
4. Connect the DS550 internal I/O Cable to the silver I/O connector located at the end
of the SAF-TE Board.
5. If necessary, use the provided tie wraps to tie down any loose cables inside the
DS550 chassis.
SAF-TE Processor
Board
Optional I/O Board
(Not Included)
I/O Cable
550_32
DC Power
Connector
I/O
Connector
I C
Connector
2
I/O
Connector
(To SCSI Bus)

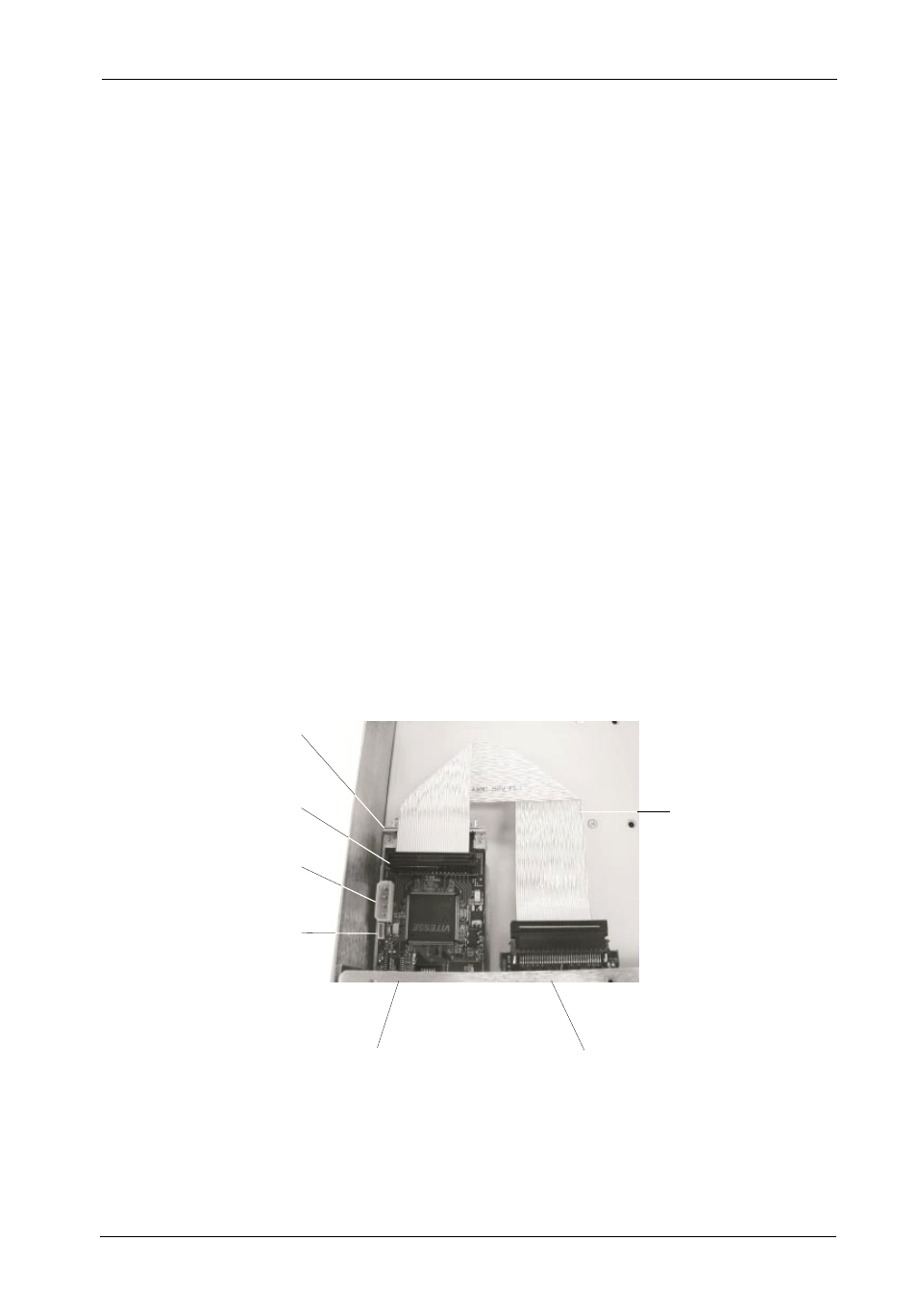

Figure 6: Installing the I/O Cable
(I/O Board Configuration)
