D89-0000-0187 Rev. A04

StorCase Technology, Inc.

S30A110

13

SAF-TE Board Front Panel

(Figure 10)

Reset Switch

Resets the SAF-TE processor Board (resetting the SAF-TE Board is

required if SCSI ID has been changed).

RS-232 Serial Port

Reserved.

SCSI ID Select

Provides convenient SCSI ID selection. The rotating switch can be

Switch

adjusted with the provided alignment tool (refer to section “Selecting

the SCSI ID Number” for further information).

Reset

Switch

RS-232

Serial Port

SCSI ID

Select Switch

550_24

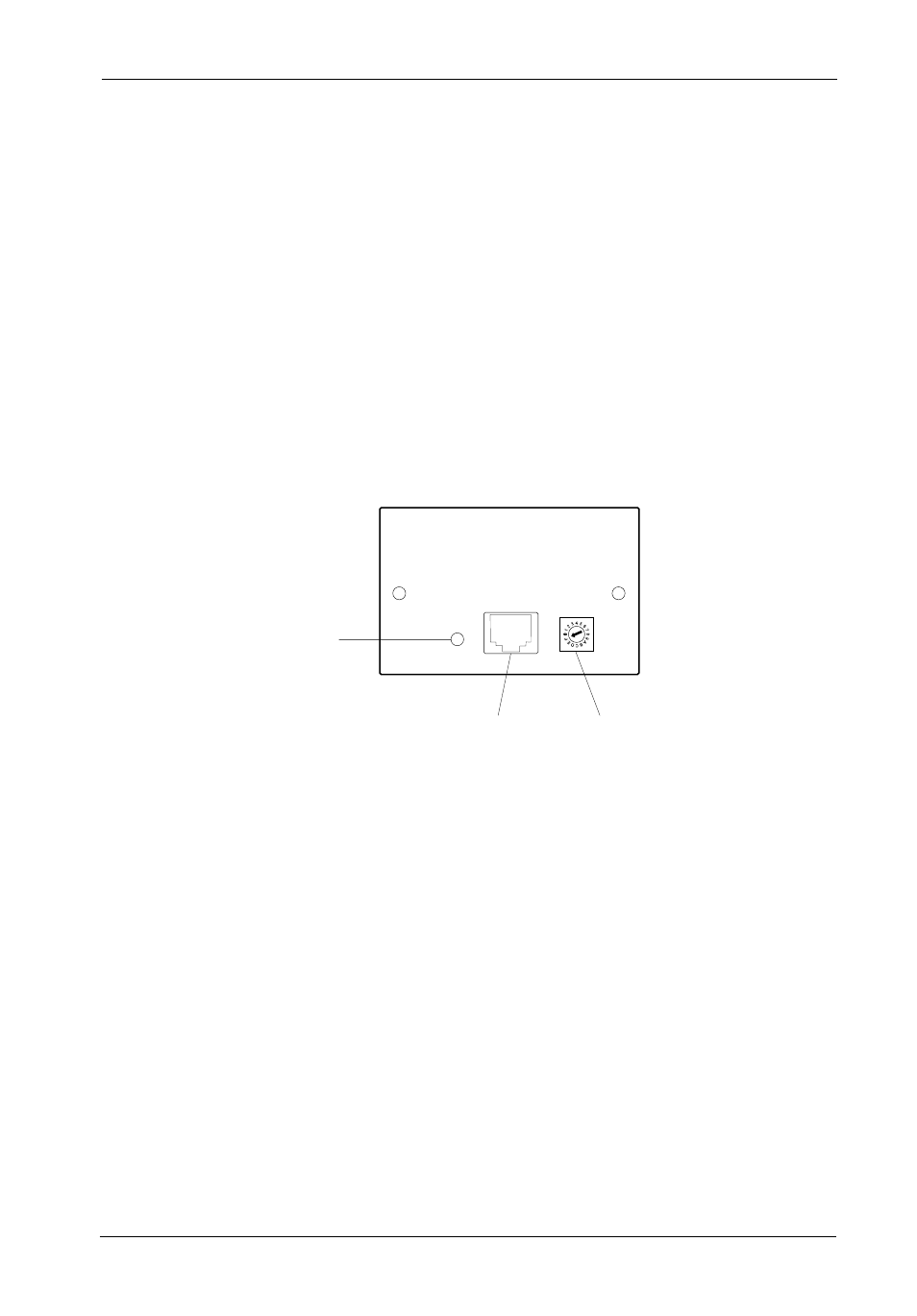

Figure 10: SAF-TE Board Front Panel
