D89-0000-0187 Rev. A04 StorCase Technology, Inc.
S30A110 19
Chassis Configuration Status Screen
NOTE: When remote monitoring via the internet, always hit "Refresh" on the browser
to make sure you are viewing the most up-to-date information.
The Chassis Configuration Status Screen (Figure 14) displays the current configuration of the
InfoStation chassis.

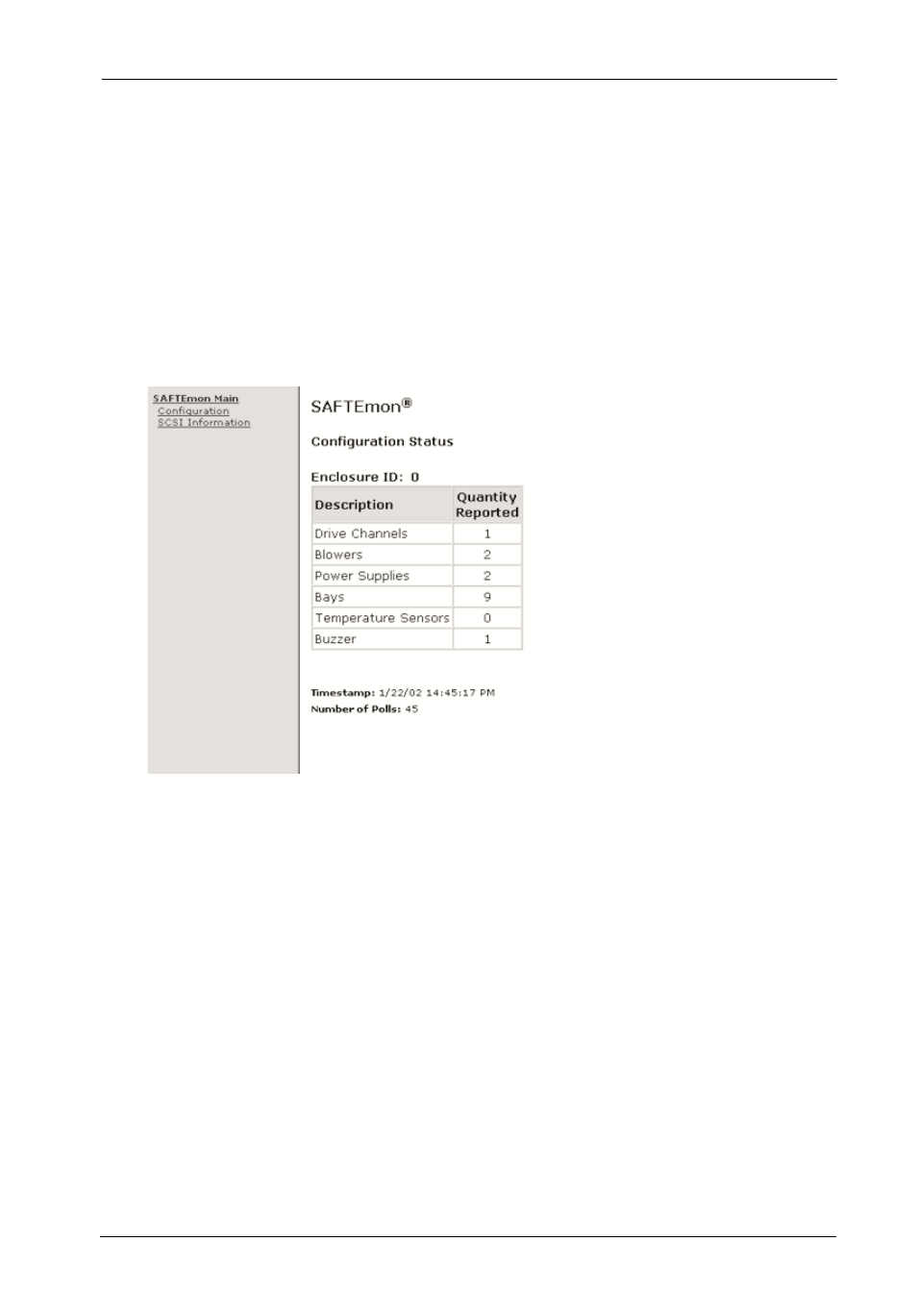

Figure 14: Chassis Configuration Status Screen
NOTE: The “Bay Quantity” in this screen will always indicate 9 bays.
