2 Introduction
StorCase Technology, Inc. S20A120 User's Guide - Rev. A01
Package Contents
The DE300 package contents include the following items. If any item is missing or damaged,
contact your StorCase dealer for a replacement.

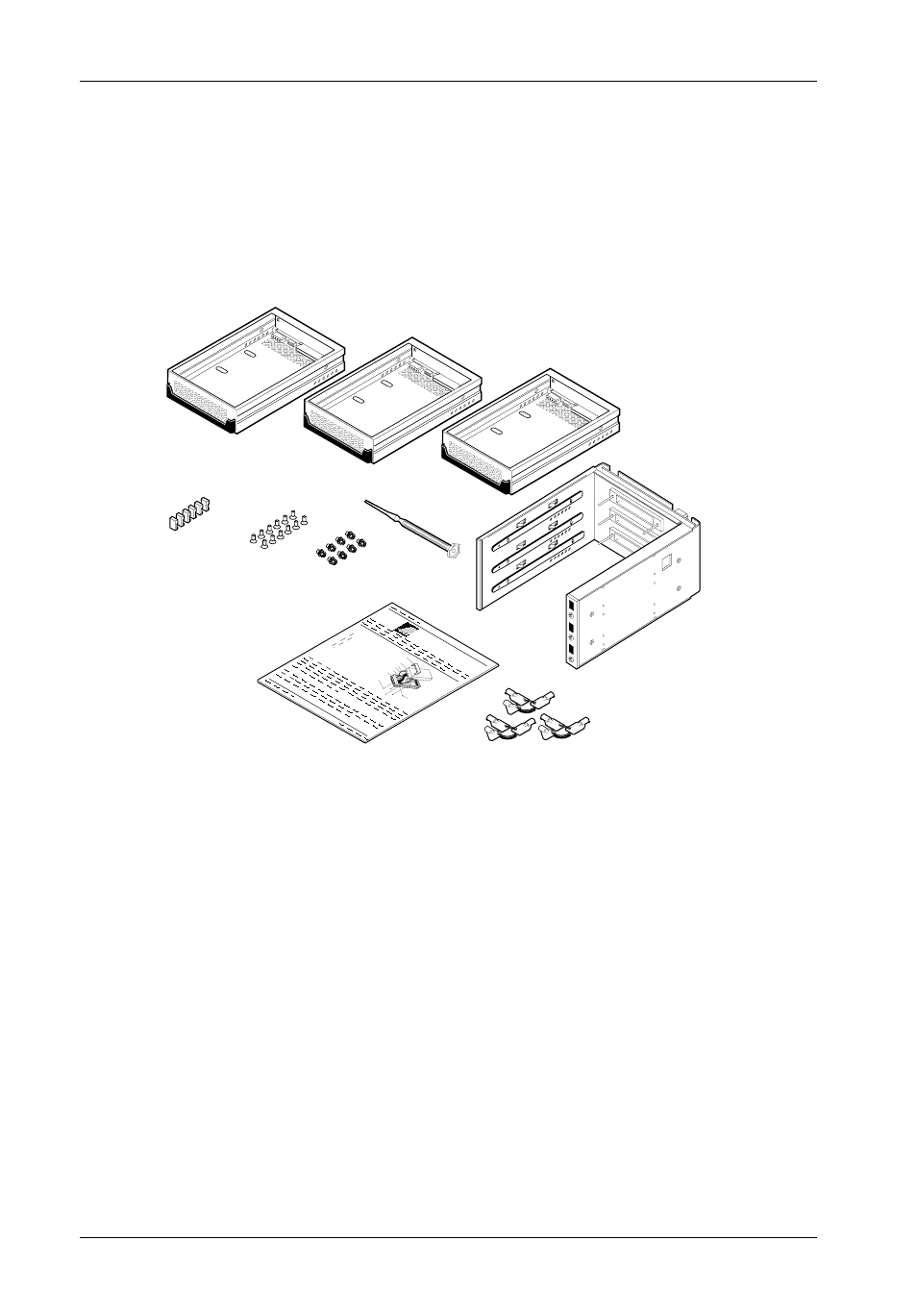

Figure 1: Package Contents
6. #6-32 Phillips Flat Hd.
Mounting Screws
7. #6-32 Phillips Pan Hd.
Mounting Screws
8. Alignment Tool
1. Drive Carrier
2. Receiving Frame
3. Drive Lock Keys
4. Insert Sheet
5. Jumper Plugs
1
5
2
4
3
6
8
7
Data E
xpress
Drive C arrier
Disk D rive (Not In cluded ) Power Cable I/O Ca ble
Drive M ountin g Hardw are (4 ea) Phillip s # 6-3 2 x 3/16 F lat HD
ID Sele ct Cab le
0151
Cable Cover (Provid ed)
Cable Cove r Screw s (2 plc s) # 6-32 x 3/16 Flat H D
0509c
