StorCase Technology S20A120 User Manual

Page 20

S20A120 User's Guide - Rev. A01

StorCase Technology, Inc.

Installation

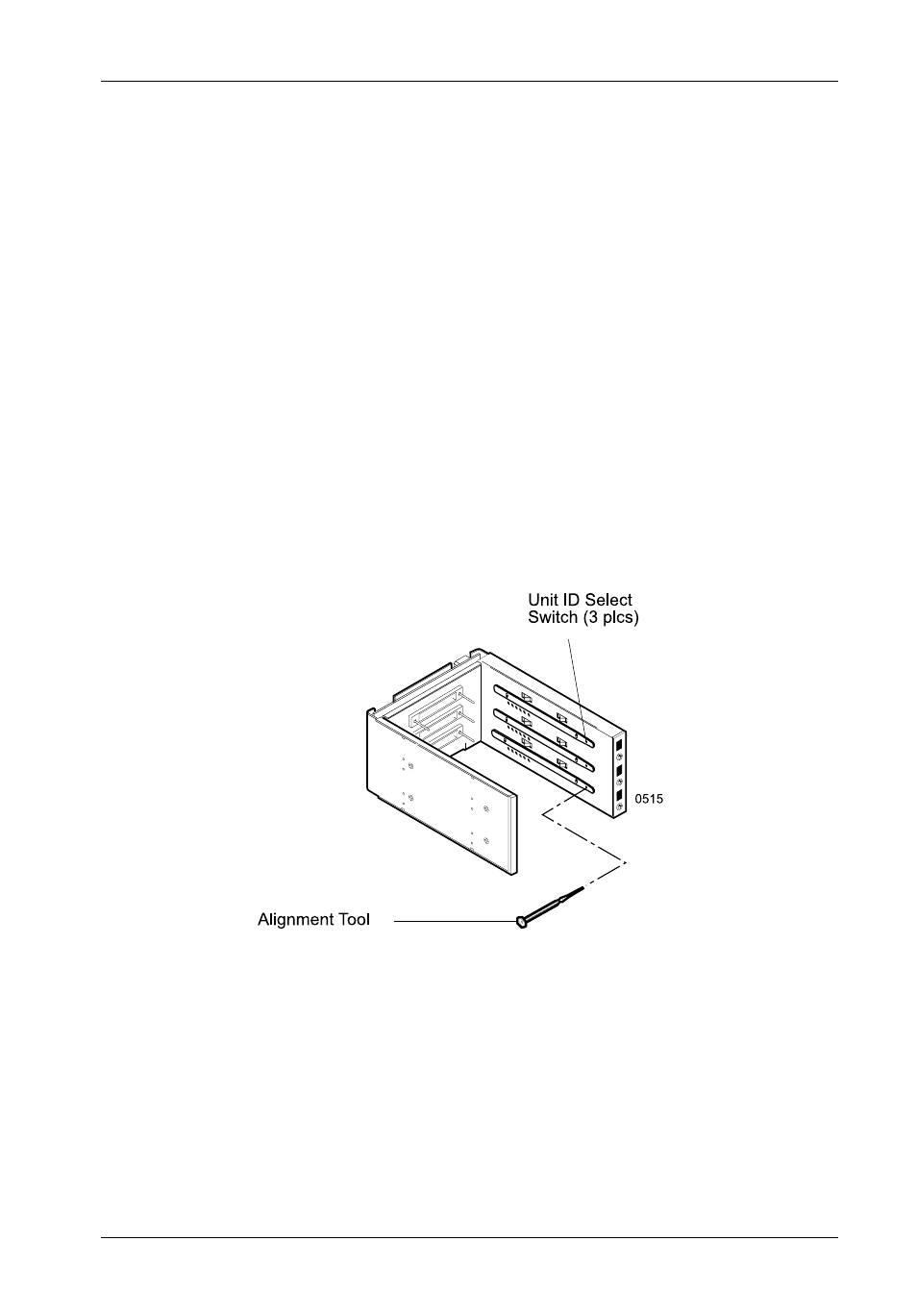

Figure 9: Unit ID Select Switch Location

WARNING:

Unlocking the carrier unit switches DC power off to the drive.

Since drives require a short amount of time to spin down, allow

at least 15 seconds before pulling the carrier unit out of the

receiving frame to avoid possible damage to the drive.

3. Use the alignment tool supplied with the DE300 to select the ID number of the disk drive.

Refer to Figure 9 for the location of the ID select switch inside the receiving frame.

WARNING:

Selecting an invalid ID number, or selecting the same unit ID

number on different devices may cause unpredictable results

and the computer system may not recognize the installed

device(s). If the computer system can not recognize the boot

disk, the computer system may fail to start-up properly.

4. After selecting an appropriate unit ID number, replace the DE300 carrier in the receiving

frame, and LOCK IT IN PLACE.

5. The new drive may need to be formatted or initialized prior to use with the operating

system and applications software. Refer to the drive and/or computer manufacturer's

documentation for formatting information.
