14 Installation
NOTE: The lock on the DE200i-SWU2 receiving frame serves two
functions: 1) as a lock to secure the drive, and 2) as a DC power
switch for the carrier unit. The lock must be engaged (turned
counterclockwise) in order to supply power to the drive carrier.
5. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.
DISPLAY
(HEX)
UNIT
NUMBER (
10
)
DISPLAY
(HEX)
UNIT
NUMBER (
10
)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0147
Table 3: 16-Bit Wide Single-Ended Unit ID Display

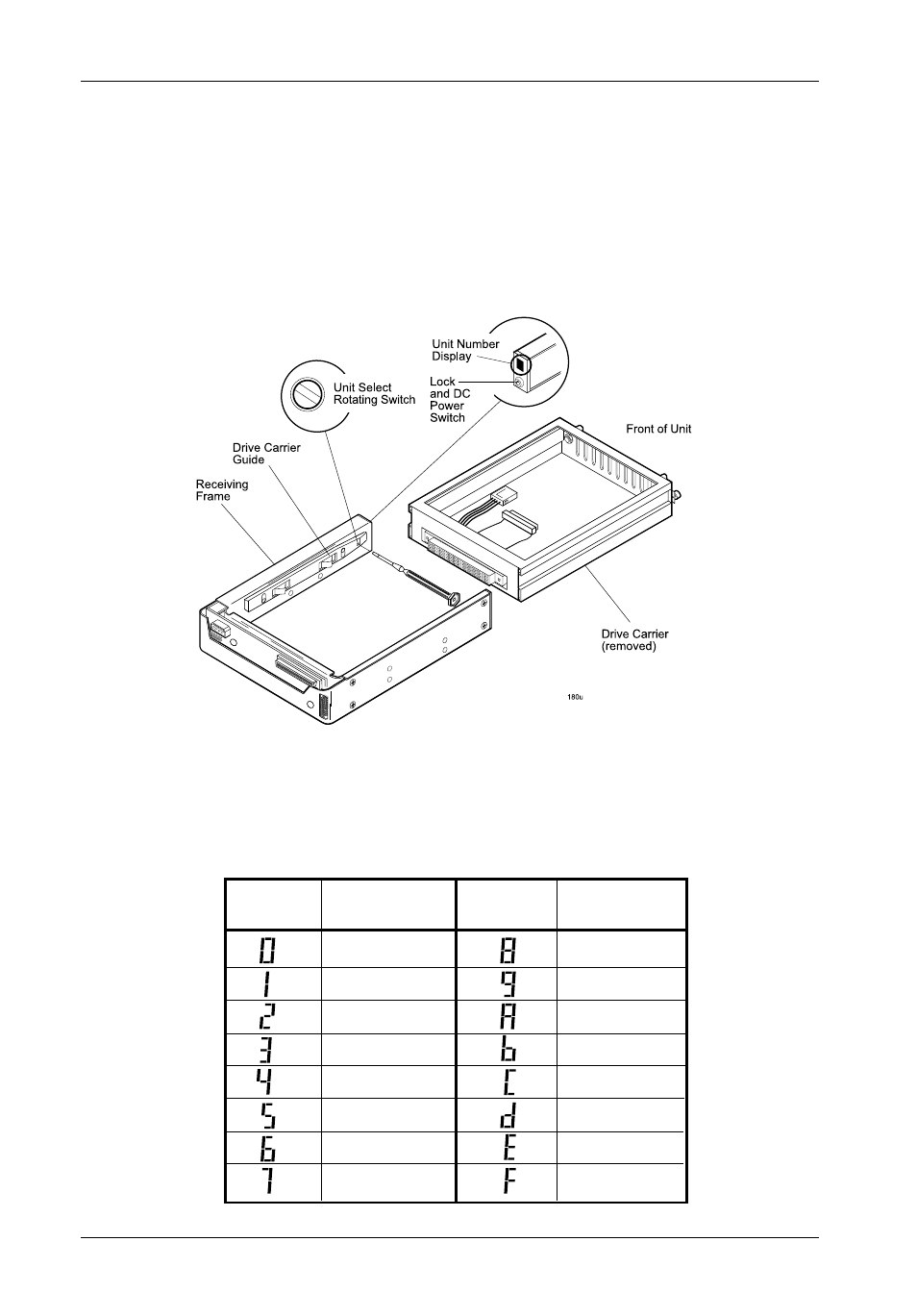

Figure 10: Unit ID Select Switch Location
