8 Installation

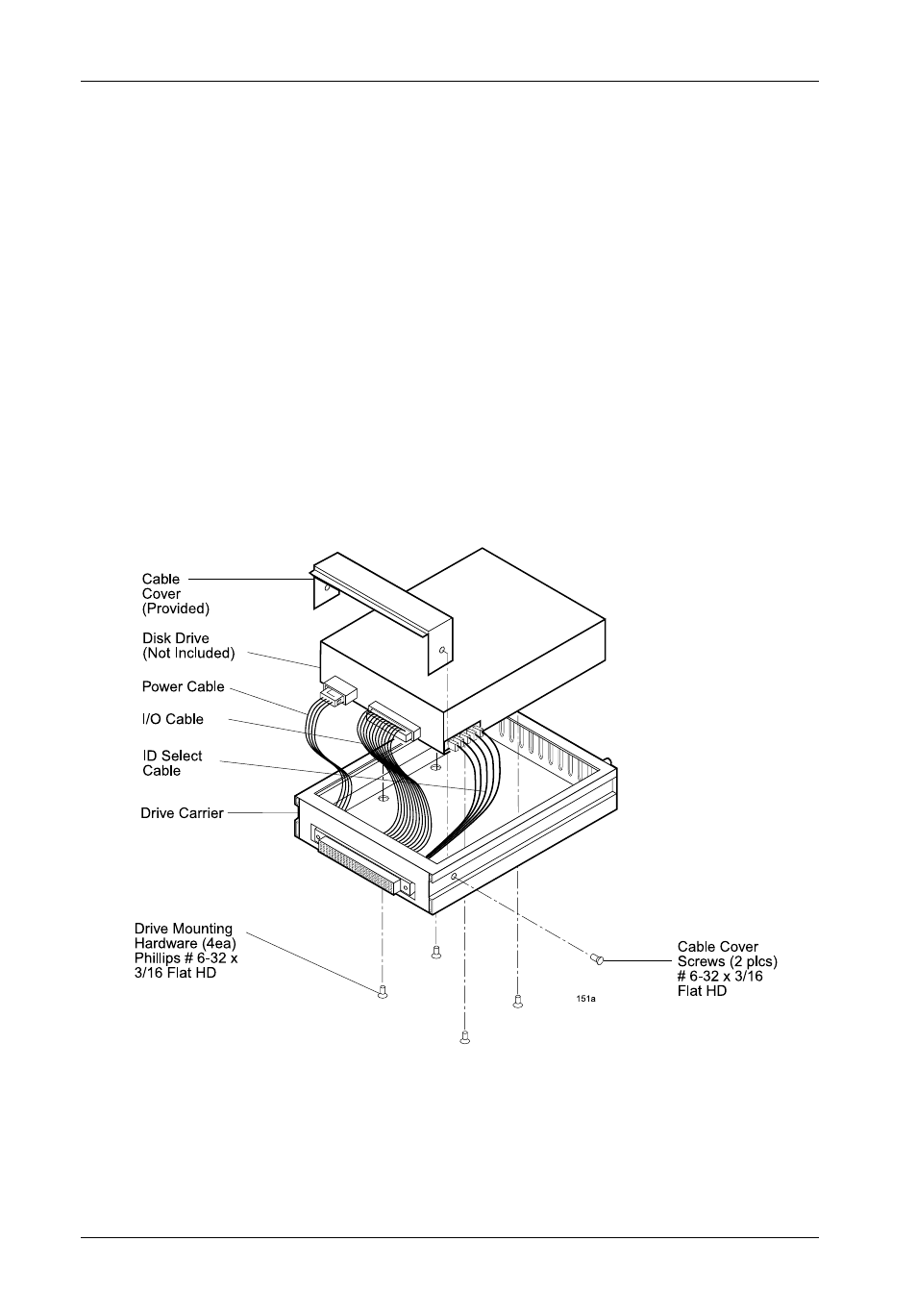

Figure 6: Drive Installation Assembly
Installation
1. Attach the I/O cable from the rear distribution board of the DE200i-SWU2
carrier to the disk drive (Figure 6).
2. Attach the 4-pin power cable from the rear distribution board to the disk
drive (Figure 6).
3. Install the 5-pin ID select cable into the rear signal distribution board
connector. Refer to Figure 7 for a typical 2mm drive pin connection.
4. Carefully insert the drive into the carrier at an angle, cable-end first. Make
sure that none of the cables are pinched. Lower the front of the
drive carefully into place. Fasten the drive into the carrier with four (4) #6-
32 x 3/16" Flat Head screws provided.
5. Attach the provided cable cover with two (2) #6-32 x 3/16" Flat Head
screws provided.
