4

Introduction

StorCase Technology Inc.

DE200i-SWU2 User's Guide - Rev. A00

Receiving Frame Front Panel

•

The Key Lock/Drive Power Switch performs three functions. The key lock

assures proper seating of the drive carrier within the receiving frame, turns

power to the drive carrier on and off, and prevents unauthorized removal or

installation of the carrier. For the computer to access data on the DE200i-SWU2

disk drive, the key must be turned counterclockwise to the locked position.
The key is permanently attached to the lock but can be reconfigured to be

removable, if desired (as shown in Appendix C).

•

The Unit Number Indicator (Figure 4) displays the physical address of the

DE200i-SWU2 drive carrier when the carrier is Installed and Locked in the

receiving frame or Removed from the receiving frame. If the drive carrier is

Installed but Not Locked, a "u" will be displayed to indicate an unlocked

condition. The unit number is selected by means of the unit select switch inside

the receiving frame using a special alignment tool supplied with the DE200i-

SWU2. This procedure is explained later during the installation process.

•

The Activity Indicator is a small dot next to the Unit Number which illuminates

to show when the host computer is accessing the data on the DE200i-SWU2

carrier. This dot will flash during communication with the host computer.

•

Device Spin Down/Up Timer allows the receiving frame unit number display

to provide a visual indication of drive spin down/up activity. Refer to Figure B-4

for switch settings.

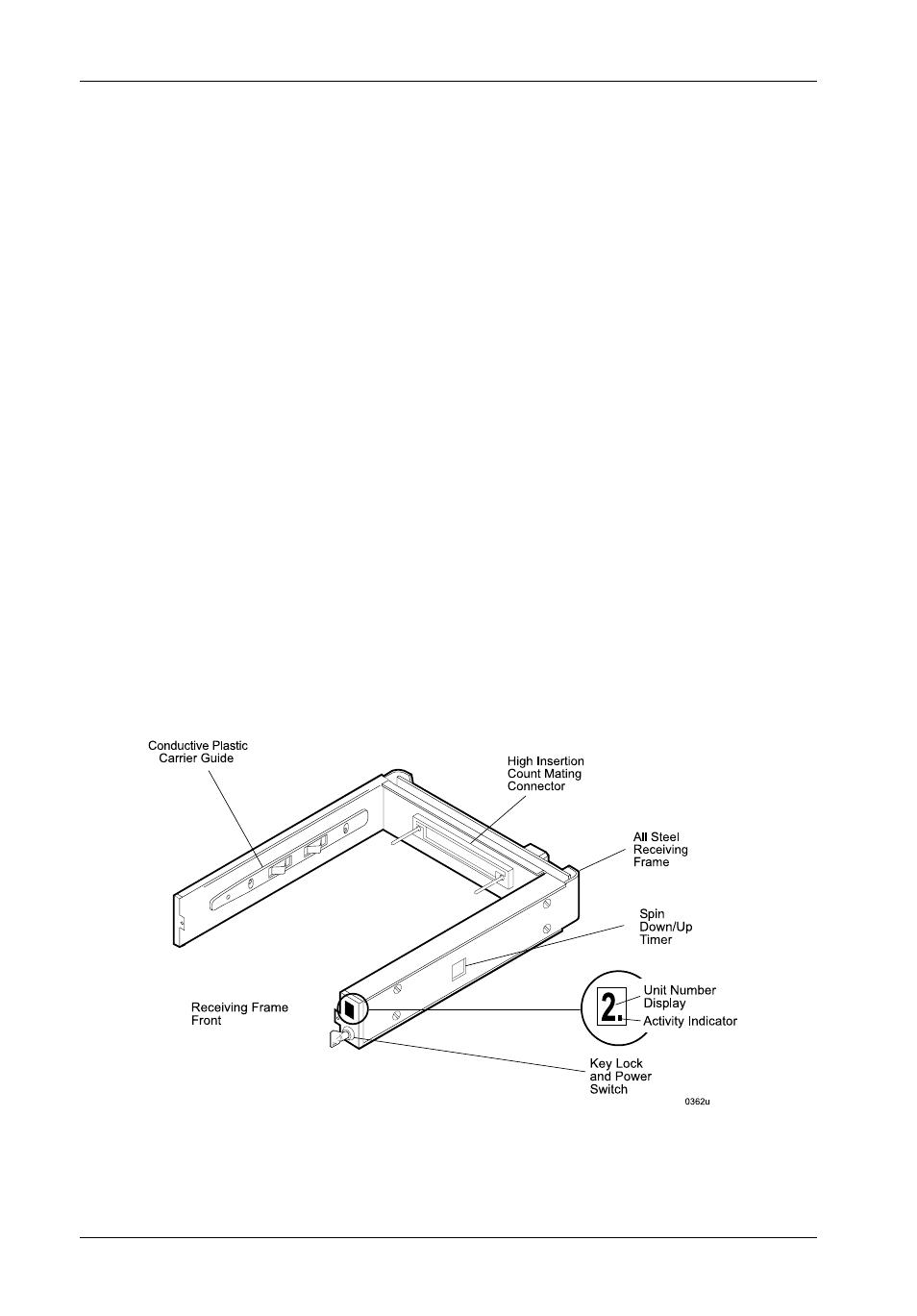

Figure 3: Receiving Frame Front Panel
