12 Installation
StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00
Selecting the Unit ID Number
1. Verify that power is turned on to the DE75i-A66 receiving frame by turning
on the computer. A number should appear in the unit display window if the
carrier is locked in place.
2. Unlock the DE75i-A66 drive carrier and remove it from the receiving frame.
A "u" will be displayed initially when the unit is unlocked but will return to a
number when the carrier is removed from the receiving frame.
WARNING: Unlocking the carrier unit switches DC power off to the drive. Since
disk drives require a short amount of time to spin down, allow about
15 seconds before pulling the carrier unit out of the receiving frame
to avoid possible damage to the drive.
3. Use the alignment tool supplied with the DE75i-A66 to select the ID number
of the drive. Refer to Figure 10 for the location of the Unit ID Select Switch
inside the receiving frame. Table 2 lists the valid unit ID numbers that can
be used for the drive.
NOTE: If using drive or receiving frame jumpers to determine Master/Slave status,
set the unit number to "0" on the receiving frame.
4. After selecting an appropriate unit ID number, replace the DE75i-A66 carrier
in the receiving frame, and LOCK IT IN PLACE.
NOTE: The lock on the DE75i-A66 receiving frame functions as a lock and a DC
power switch for the carrier unit. The lock must be engaged in order to
supply power to the carrier and installed drive.
5. Reboot the computer. The new device is now ready for use, although it
may have to be formatted or initialized prior to use with your operating
system and applications software.

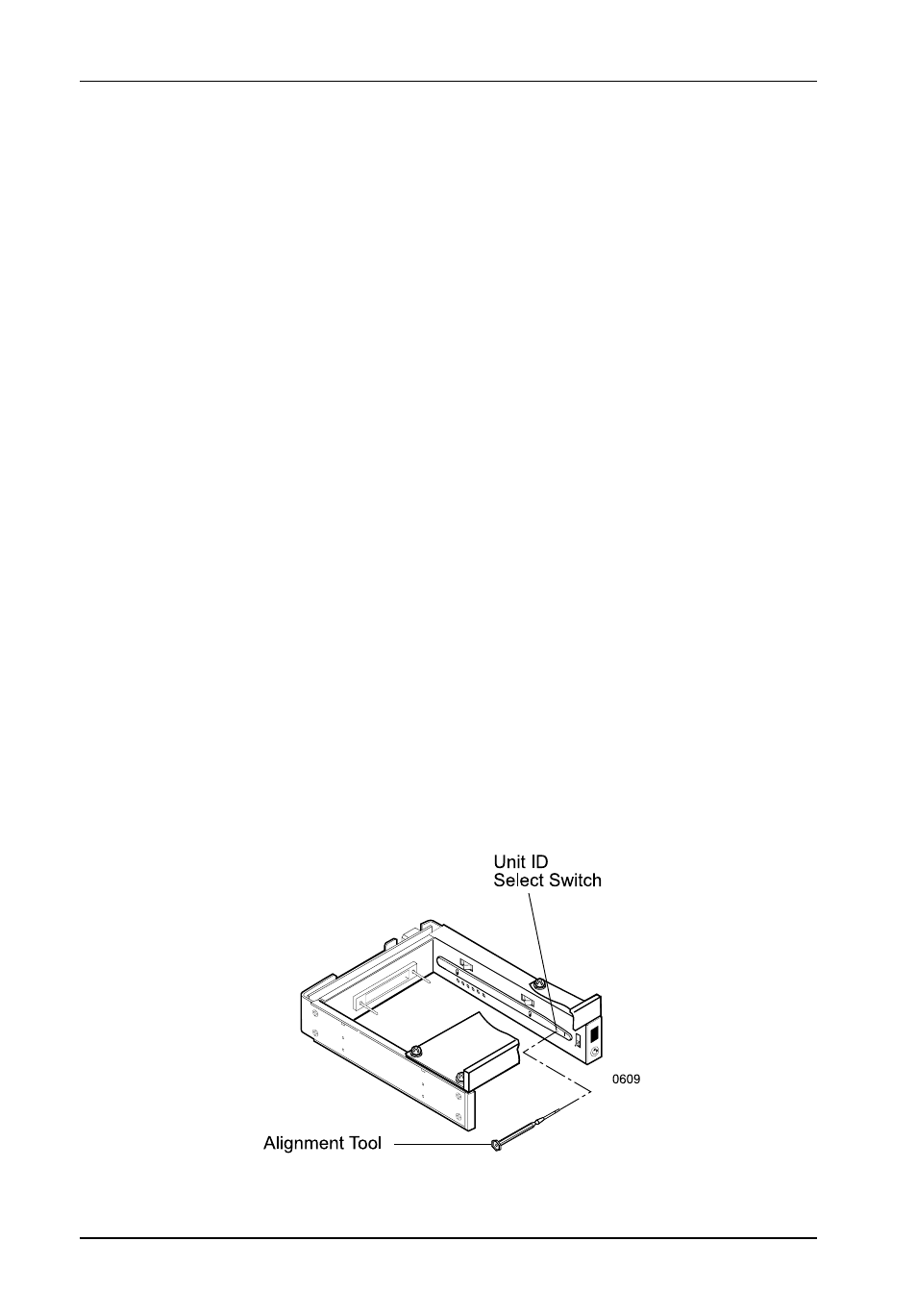

Figure 10: Unit ID Select Switch Location
