DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.
Installation 9
4. Carefully insert the drive into the drive carrier at an angle, cable-end first.
Make sure none of the cables are pinched. Lower the front of the
drive carefully into place. Fasten the drive into the carrier with four of the
eight screws provided as shown in Figure 7.
5. Install the provided drive cover.

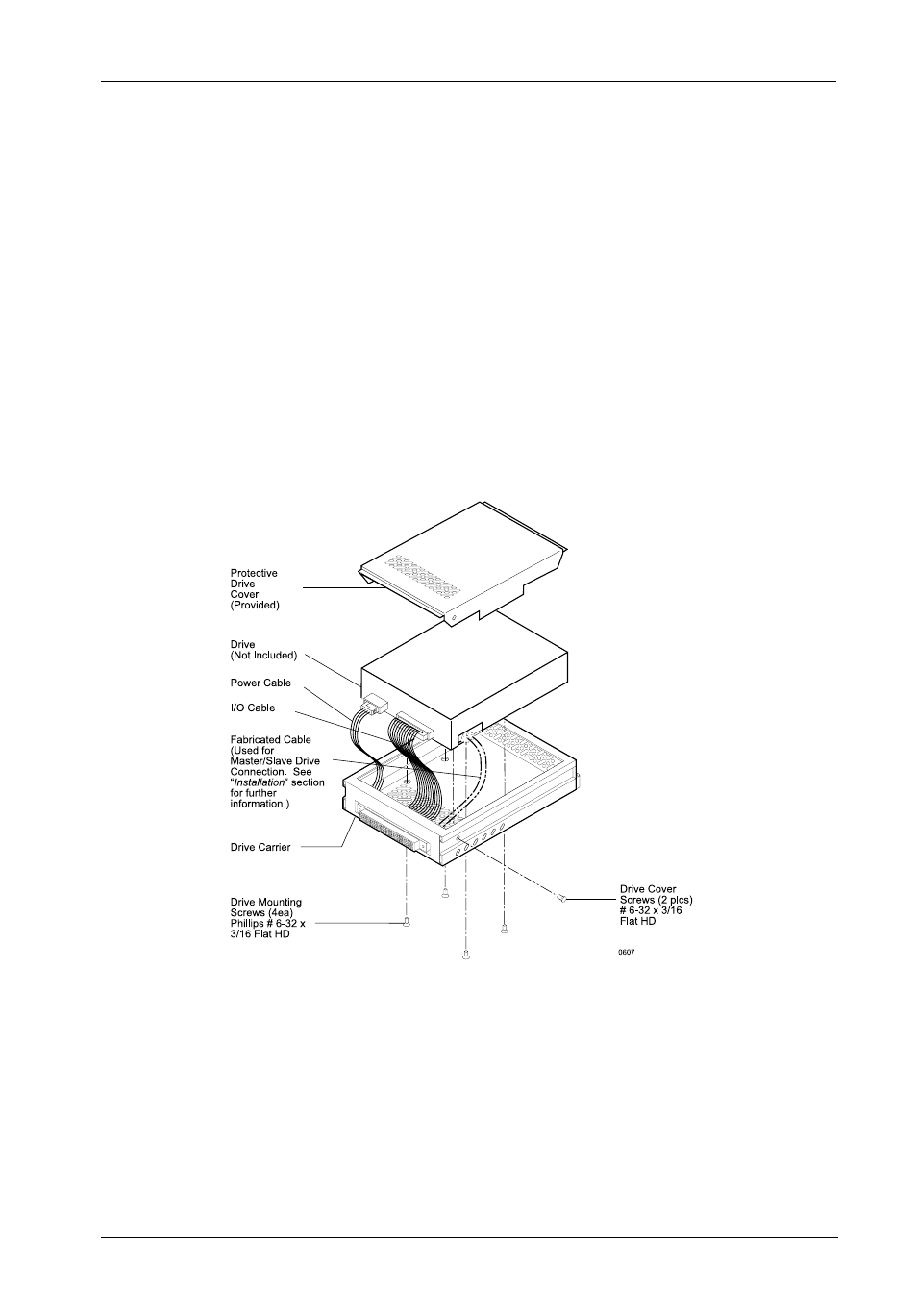

Figure 7: Drive Installation Assembly
Installation
1. Attach the I/O cable on the drive carrier circuit board to the drive. Refer to
Figure 7 for an illustration of the installation process.
2. Attach the 4-pin power cable on the drive carrier circuit board to the drive.
If you are installing only one drive carrier, skip to Step 4.
3. For Method 2 Users:
If a Master/Slave cable was fabricated as outlined in the previous section,
install it now between the appropriate drive pins and connectors JP3 and
JP4 on the drive carrier circuit board. See Figure 6 for typical Ultra ATA/66
Master/Slave drive connections. Also refer to the documentation that
accompanied the drive for more specific information.
