DE75i-A66 User's Guide - Rev. A00

StorCase Technology Inc.

Introduction

3

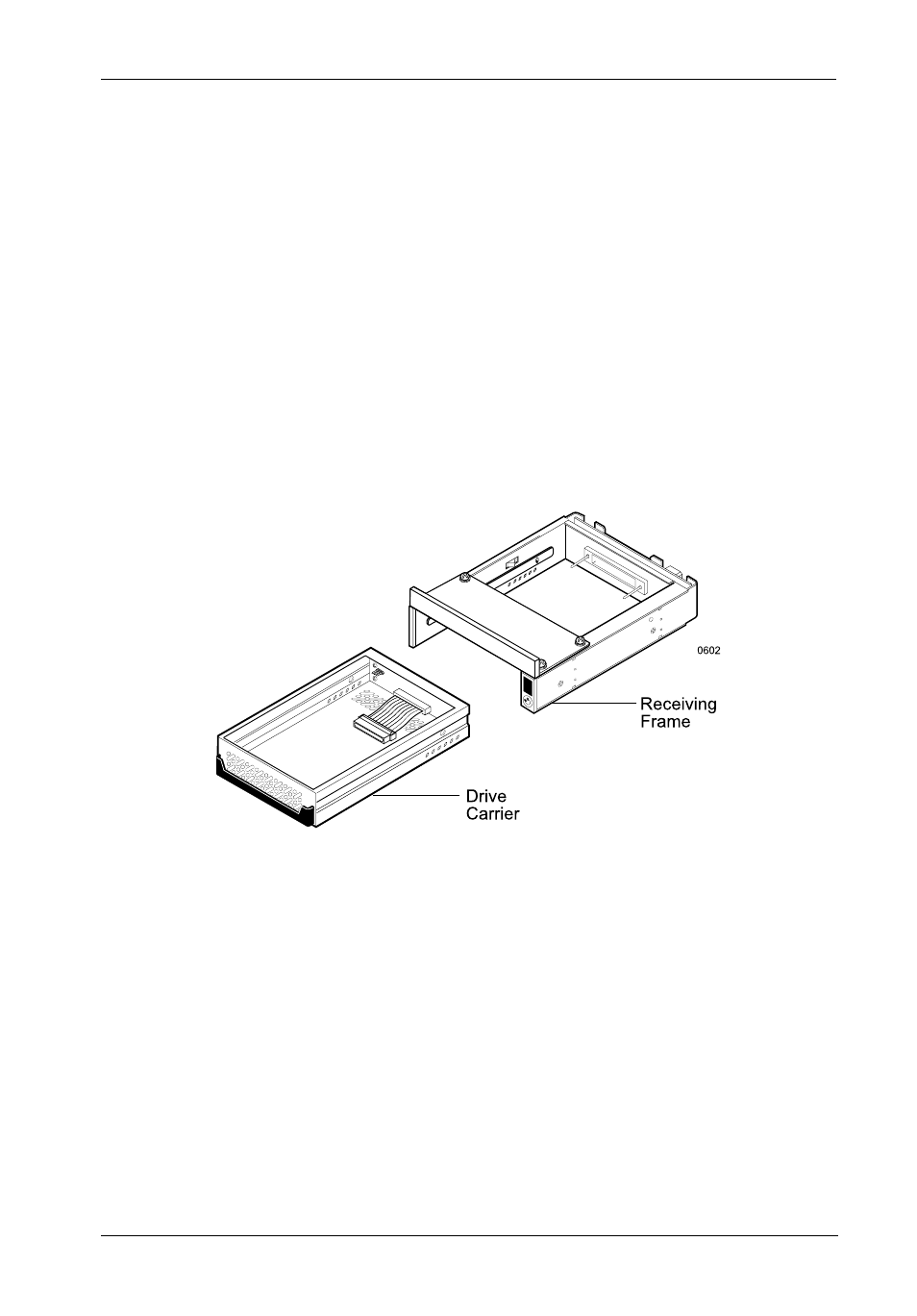

Figure 2: DE75i-A66 Receiving Frame and Carrier

This User's Guide describes the steps required to install the StorCase Data Express

DE75i-A66 removable enclosure into a computer peripheral bay. This guide supplements

documentation provided with the host computer system, operating system, and the drive

to be installed within the Data Express carrier.

General Description

The StorCase Technology Data Express

®

DE75i-A66 is a removable low-profile drive

carrier and receiving frame. The DE75i-A66 is designed to provide durable and reliable

mounting for one (1) 3.5” low profile Ultra ATA/66 drive within a 5.25" half-height

peripheral slot (Figure 2). It is downward compatible with earlier technology AT/IDE

drives.

The DE75i-A66 allows the carrier unit and installed drive to be removed and transported to

another DE75i-A66 equipped computer, and also provides the ability to secure sensitive

data by removing and storing the carrier/drive safely for future use.

NOTE:

For Ultra ATA/66 (66MByte/sec) operation, an Ultra ATA/66 controller and hard

drive(s), and a special 40-pin, 80-conductor cable is required.
