StorCase Technology Inc.

DE75i-A66 User's Guide - Rev. A00

4

Introduction

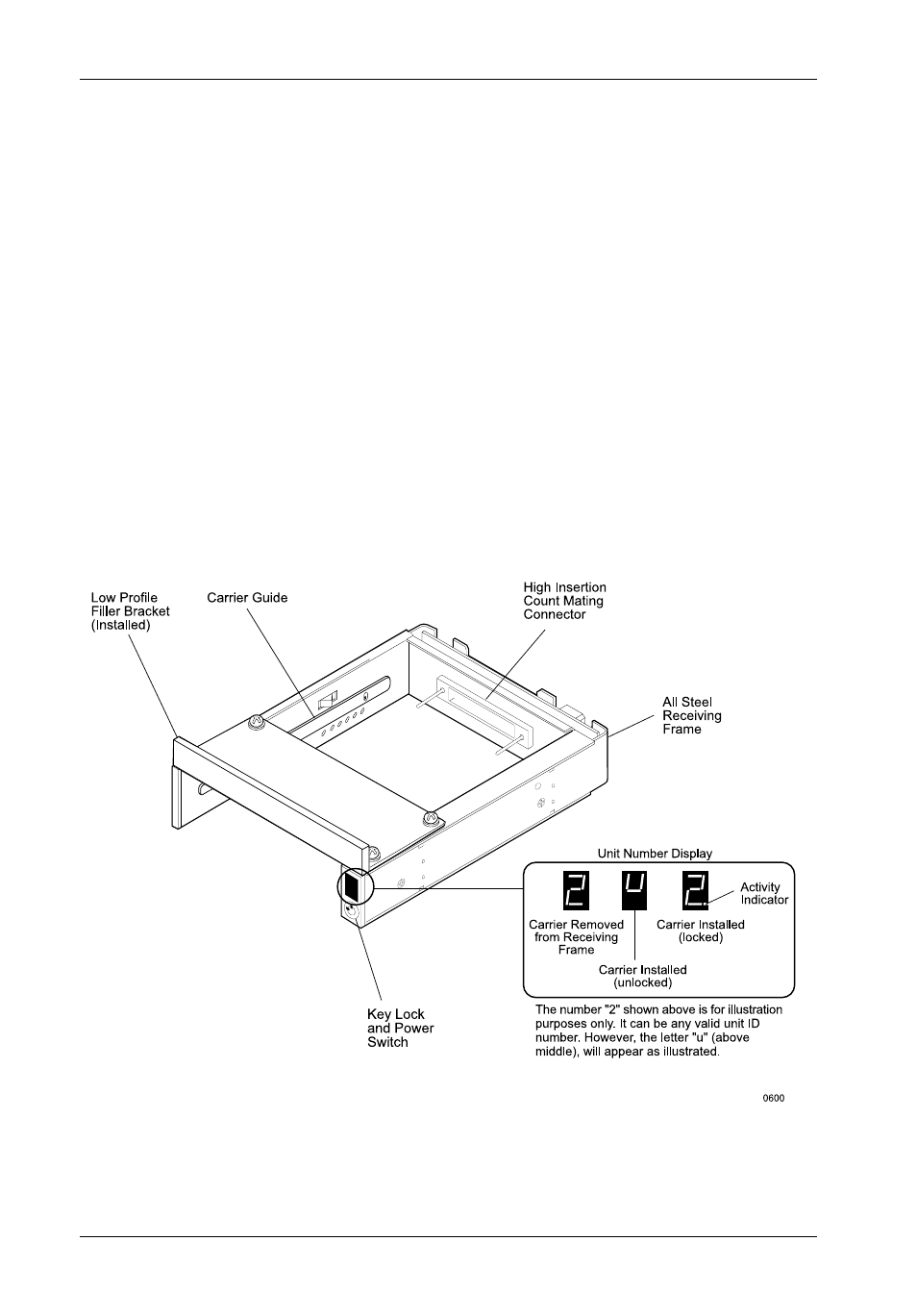

Figure 3: Receiving Frame Front Panel

Receiving Frame Front Panel

(Figure 3)

•

The Key Lock/Drive Power Switch performs three functions. The key lock

assures proper seating of the drive carrier within the receiving frame, turns

power to the drive carrier on and off, and prevents unauthorized removal or

installation of the carrier. For the computer to access data on the DE75i-A66

drive, the key must be turned counterclockwise to the locked position.

•

The Unit Number Indicator displays the physical address of the DE75i-A66

drive carrier when the carrier is Installed and Locked in the receiving frame or

Removed from the receiving frame. If the drive carrier is Installed but Not

Locked , a "u" will be displayed. The unit number is selected by means of the

unit select switch located inside the receiving frame using a special alignment

tool supplied with the DE75i-A66. This procedure is explained later during the

installation process.

•

The Activity Indicator is a small dot next to the Unit Number which illuminates

to show when the host computer is accessing the data on the DE75i-A66

carrier.
