-7-
2-Head/4-Head Separate Activation (High Power Only) (CONT’D)
2-Head/4-Head Separate Activation (Low Power Only)
1. For this set up, only two On/Off switches are necessary (not included). Use Star Model
#SP3860-2 switch panel, or any other standard two-switch switch panel capable of
delivering 15 amps.
2. Connect the black wire from the POWER connector and the white wire from the
ENABLE plug to a good chassis ground.
3. Connect the black wire from the ENABLE plug to +12VDC through your second switch.
4. Connect the red wire from the ENABLE plug to +12VDC through your first switch.
Please Note: When the red POWER wire is connected to +12VDC the pack will draw a
small current (50 mA). If your vehicle will be sitting for extended periods of time (i.e.
more than a few days), it is recommended all +12VDC wires be routed through an
ignition switched power source.
5. The white wire from the POWER connector will be left unconnected for now. Once your
system is installed, the white wire will be used to program the flash pattern. Proceed to
the Pattern Selection section on page 8.

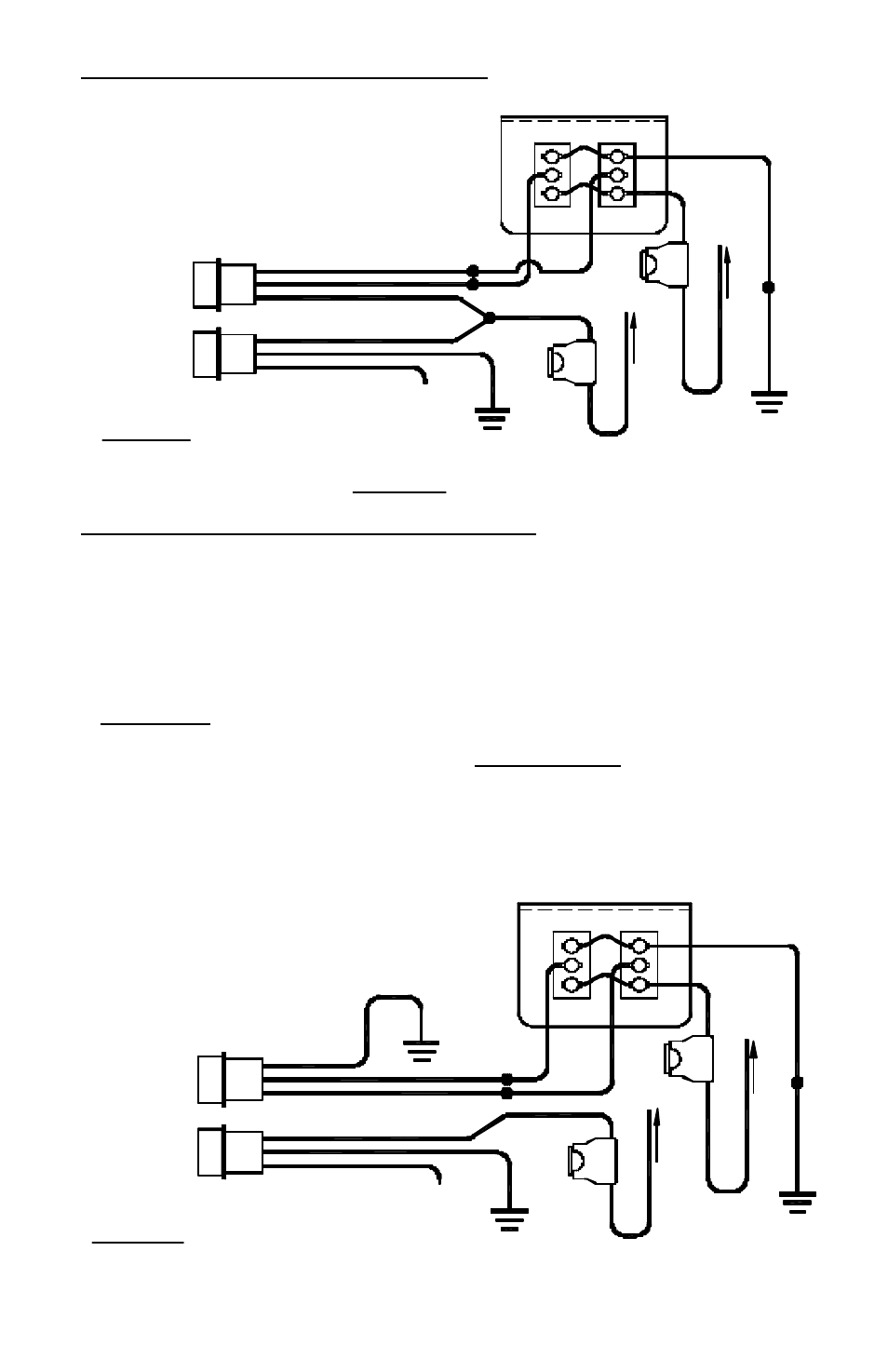

RP966/RP996
Two-Head/Four-Head Switching
High Power Only
(Set Jumper in High/Low Option Position)
RED
PLUGS
INTO
POWER
PAK
ENABLE
CONNECTOR
WHITE
BLACK
PLUGS
INTO
POWER
PAK
POWER
CONNECTOR
RED
WHITE
BLACK
Pattern Select:
Touch and release to +12VDC
to set pattern then tape off
1 1
SW1
OFF
SW2
GOOD
CHASSIS
GROUND
CONNECT TO +12 VDC
15 AMP
FUSE BLACK
SP3860-2 LIGHTED SWITCH PANEL (REAR VIEW)
ON
2
3
2
3
BLUE
OFF
ON
15 AMP
FUSE
CONNECT TO +12 VDC
RED
Please Note: When the red POWER wire is connected to
+12VDC the pack will draw a small current (50 mA).
If your vehicle will be sitting for extended periods of time (i.e. more than a few days), it
is recommended that all +12VDC wires be routed through an ignition switched power source.
RP966/RP996
Two-Head/Four-Head Switching
Low Power Only
(Set Jumper in High/Low Option Position)
RED
PLUGS
INTO
POWER
PAK
ENABLE
CONNECTOR
WHITE
BLACK
PLUGS
INTO
POWER
PAK
POWER
CONNECTOR
WHITE
RED
BLACK
Pattern Select:
Touch and release to +12VDC
to set pattern then tape off
1 1
SW1
OFF
SW2
RED
GOOD
CHASSIS
GROUND
CONNECT TO +12 VDC
BLACK
SP3860-2 LIGHTED SWITCH PANEL (REAR VIEW)
O N
2
3
2
3
OFF
ON
CONNECT TO +12 VDC
WHITE
GOOD
CHASSIS
GROUND
BLUE
GOOD
CHASSIS
GROUND
Please Note: When the red POWER wire is connected to
+12VDC the pack will draw a small current (50 mA).
If your vehicle will be sitting for extended periods of time (i.e. more than a few days), it
is recommended that all +12VDC wires be routed through an ignition switched power source.
15 AMP FUSE
15 AMP
FUSE
