CK473
1. Enclosed you will find a kit containing 1 cable-side connector and 3 male pins.
2. Cut off the old connector from the cable on your vehicle, if present.
3. Strip 1½"-2" of the outer insulation off exposing the three inner wires.
4. These wires should be stripped each about ¼".
5. Secure each terminal by crimping the large tabs around the insulation and the small tabs around the exposed wire.
6. After checking that your crimps are secure, insert the terminals into the correct holes in the connector as shown above.
7. For good, reliable connections between the cable system and the strobe tube head in various weather and contamination conditions, it is strongly
recommended that a dielectric grease be used on the connectors. It should be applied and into each terminal area where the connectors mate,
before joining the two connectors together. We have found this procedure to be effective even under the most extreme of conditions. Do Not
Seal The Connectors Using Silicon Or RTV.
PLITSTR133 REV. B 11/24/04
CK473
1. Enclosed you will find a kit containing 1 cable-side connector and 3 male pins.
2. Cut off the old connector from the cable on your vehicle, if present.
3. Strip 1½"-2" of the outer insulation off exposing the three inner wires.
4. These wires should be stripped each about ¼".
5. Secure each terminal by crimping the large tabs around the insulation and the small tabs around the exposed wire.
6. After checking that your crimps are secure, insert the terminals into the correct holes in the connector as shown above.
7. For good, reliable connections between the cable system and the strobe tube head in various weather and contamination conditions, it is strongly
recommended that a dielectric grease be used on the connectors. It should be applied and into each terminal area where the connectors mate,
before joining the two connectors together. We have found this procedure to be effective even under the most extreme of conditions. Do Not
Seal The Connectors Using Silicon Or RTV.
PLITSTR133 REV. B 11/24/04
CK473
1. Enclosed you will find a kit containing 1 cable-side connector and 3 male pins.
2. Cut off the old connector from the cable on your vehicle, if present.
3. Strip 1½"-2" of the outer insulation off exposing the three inner wires.
4. These wires should be stripped each about ¼".
5. Secure each terminal by crimping the large tabs around the insulation and the small tabs around the exposed wire.
6. After checking that your crimps are secure, insert the terminals into the correct holes in the connector as shown above.
7. For good, reliable connections between the cable system and the strobe tube head in various weather and contamination conditions, it is strongly
recommended that a dielectric grease be used on the connectors. It should be applied and into each terminal area where the connectors mate,
before joining the two connectors together. We have found this procedure to be effective even under the most extreme of conditions. Do Not
Seal The Connectors Using Silicon Or RTV.
PLITSTR133 REV. B 11/24/04
CK473
1. Enclosed you will find a kit containing 1 cable-side connector and 3 male pins.
2. Cut off the old connector from the cable on your vehicle, if present.
3. Strip 1½"-2" of the outer insulation off exposing the three inner wires.
4. These wires should be stripped each about ¼".
5. Secure each terminal by crimping the large tabs around the insulation and the small tabs around the exposed wire.
6. After checking that your crimps are secure, insert the terminals into the correct holes in the connector as shown above.
7. For good, reliable connections between the cable system and the strobe tube head in various weather and contamination conditions, it is strongly
recommended that a dielectric grease be used on the connectors. It should be applied and into each terminal area where the connectors mate,
before joining the two connectors together. We have found this procedure to be effective even under the most extreme of conditions. Do Not
Seal The Connectors Using Silicon Or RTV.
PLITSTR133 REV. B 11/24/04

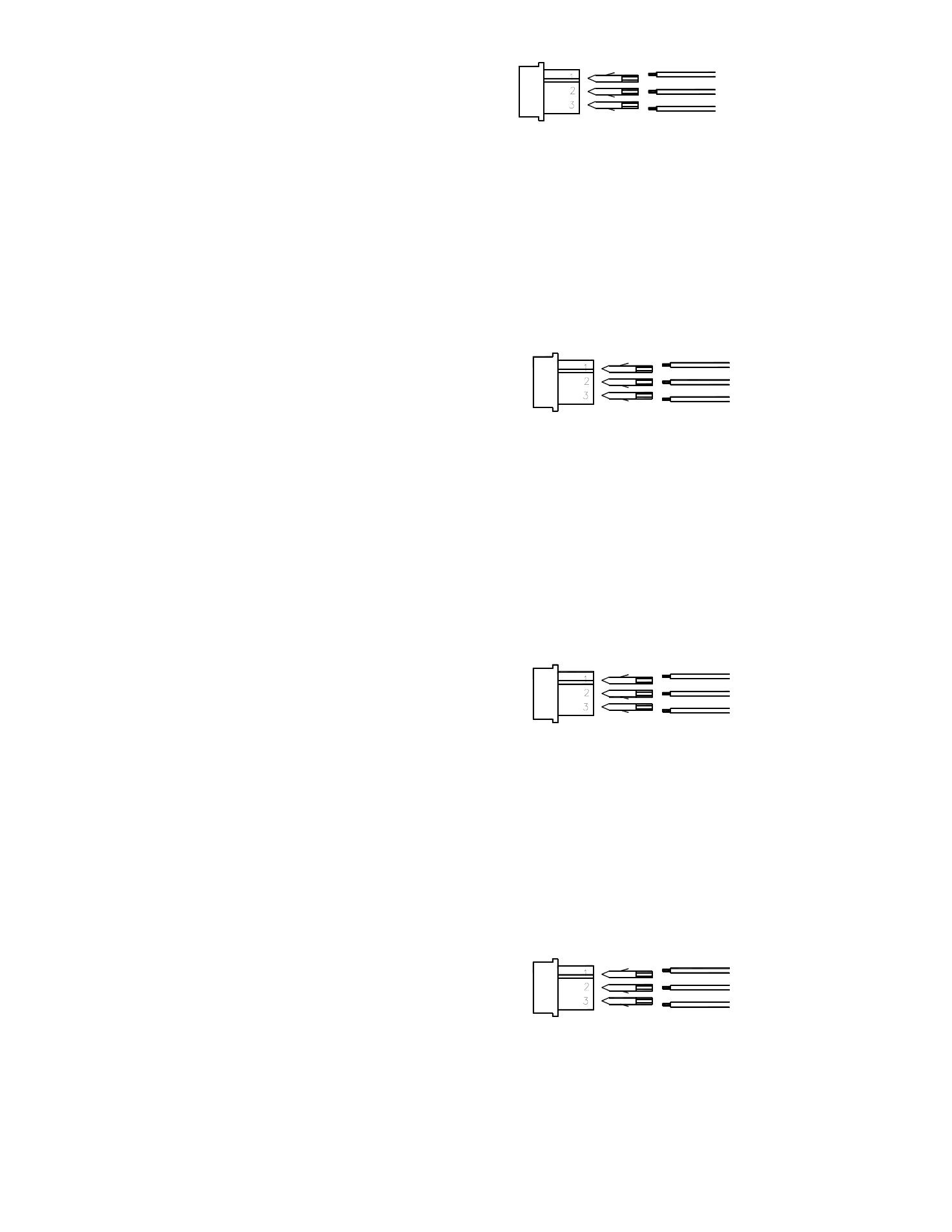

BLACK OR BLUE (GROUND)
WHITE (TRIGGER)
RED OR GREEN (HOT)
473
30042-16
FEMALE
CONNECTOR
MALE
TERMINAL
BLACK OR BLUE (GROUND)
WHITE (TRIGGER)
RED OR GREEN (HOT)
473
30042-16
FEMALE
CONNECTOR
MALE
TERMINAL
BLACK OR BLUE (GROUND)
WHITE (TRIGGER)
RED OR GREEN (HOT)
473
30042-16
FEMALE
CONNECTOR
MALE
TERMINAL
BLACK OR BLUE (GROUND)
WHITE (TRIGGER)
RED OR GREEN (HOT)
473
30042-16
FEMALE
CONNECTOR
MALE
TERMINAL
