Star Headlight & Lantern STAR-PA RSK996P - Manual (Page 11)

-9-
ENABLE
CONNECTOR
PLUGS
INTO
POWER
PAK
RED WHITE BLACK
BLUE
GOOD
CHASSIS GROUND
ON
OFF SW2

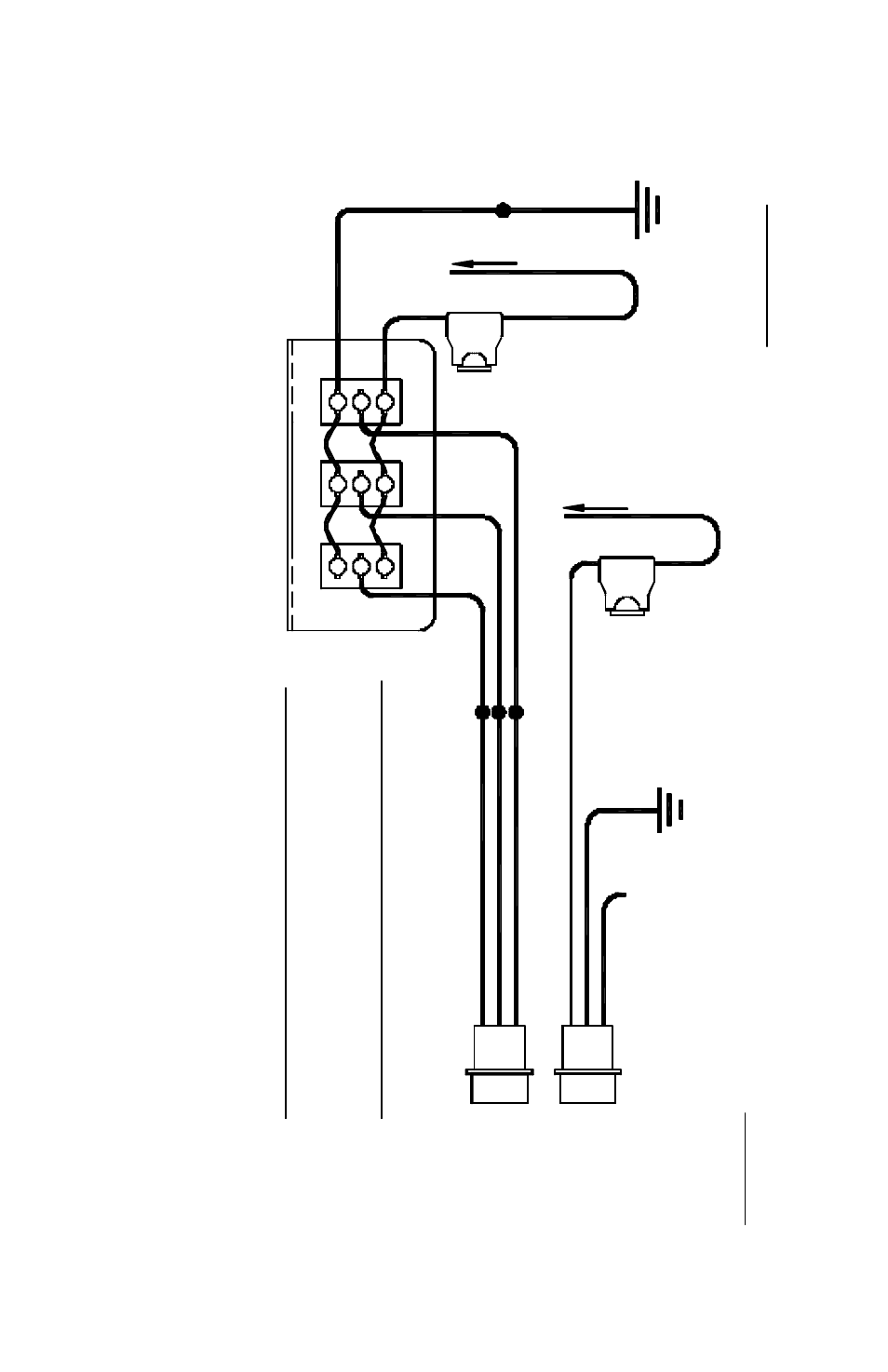

SP3860-3 LIGHTED SWITCH PANEL (REAR VIEW)
2
ORANGE
SW3
LOW/OFF
1 3
HIGH/ON
BLACK
2 1 3
OFF
ON
3 1 2
SW1
RED
POWER
CONNECTOR
GOOD
CHASSIS GROUND
Pattern Select: Touch and release to +12VDC to set pattern then tape off
PLUGS
INTO
POWER
PAK
BLACK WHITE RED
Two-Head/Four-Head Switching
(With High/Low Option)
CONNECT TO +12 VDC
15 AMP
FUSE
CONNECT TO +12 VDC
15 AMP
FUSE
Three-Pair Independent Switching
(High Power Only)
or
RP966/RP996
With the Jumper in the High /Low Option Position SW1 will enable heads 5 & 6 SW2 will enable heads 1, 2, 3, & 4 SW3 will switch between High and Low Power With the Jumper in the 3-Pair Head Select Position SW1 will enable heads 5 & 6 SW2 will enable heads 3 & 4 SW3 will enable heads 1 & 2
Please Note:
When the red POWER wire is connected to +12VDC the pack will draw a small current (50 mA). If your vehicle
will be sitting for extended periods of time (i.e. more than a few days), it is recommended that
all +12VDC wires
be routed through an ignition switched power source.
