-3-
Wiring
POWER Plug
The power plug is included with
your power pack and comes
complete with an 8-12” wiring
harness. This will be connected to
the outlet on your pack labeled
POWER.
ENABLE Plug
These strobe packs also utilize
another plug, identical to the Power
Plug, which plugs into the jack
labeled ENABLE. The connection
of the ENABLE wires will allow you
to set the pack up in a number of
different configurations. Here are
the different configurations you
may choose from when installing
the RP966 and RP996 packs:
•
All 6 Heads On and Off Together (High Power Only)
•
All 6 Heads On and Off Together (Low Power Only)
•
All 6 Heads On and Off Together (High/Low switching Option)
• 2-Heads/4-Heads Separate Activation (High Power Only)
• 2-Heads/4-Heads Separate Activation (Low Power Only)
•
2-Heads/4-Heads Separate Activation (High/Low Switching Option)
• 3-Pair Separate Activation (High Power Only)
Decide which configuration will work best for you, set your jumper accordingly (see next
page), and proceed to the appropriate section to connect the wires from the POWER and
ENABLE connectors.

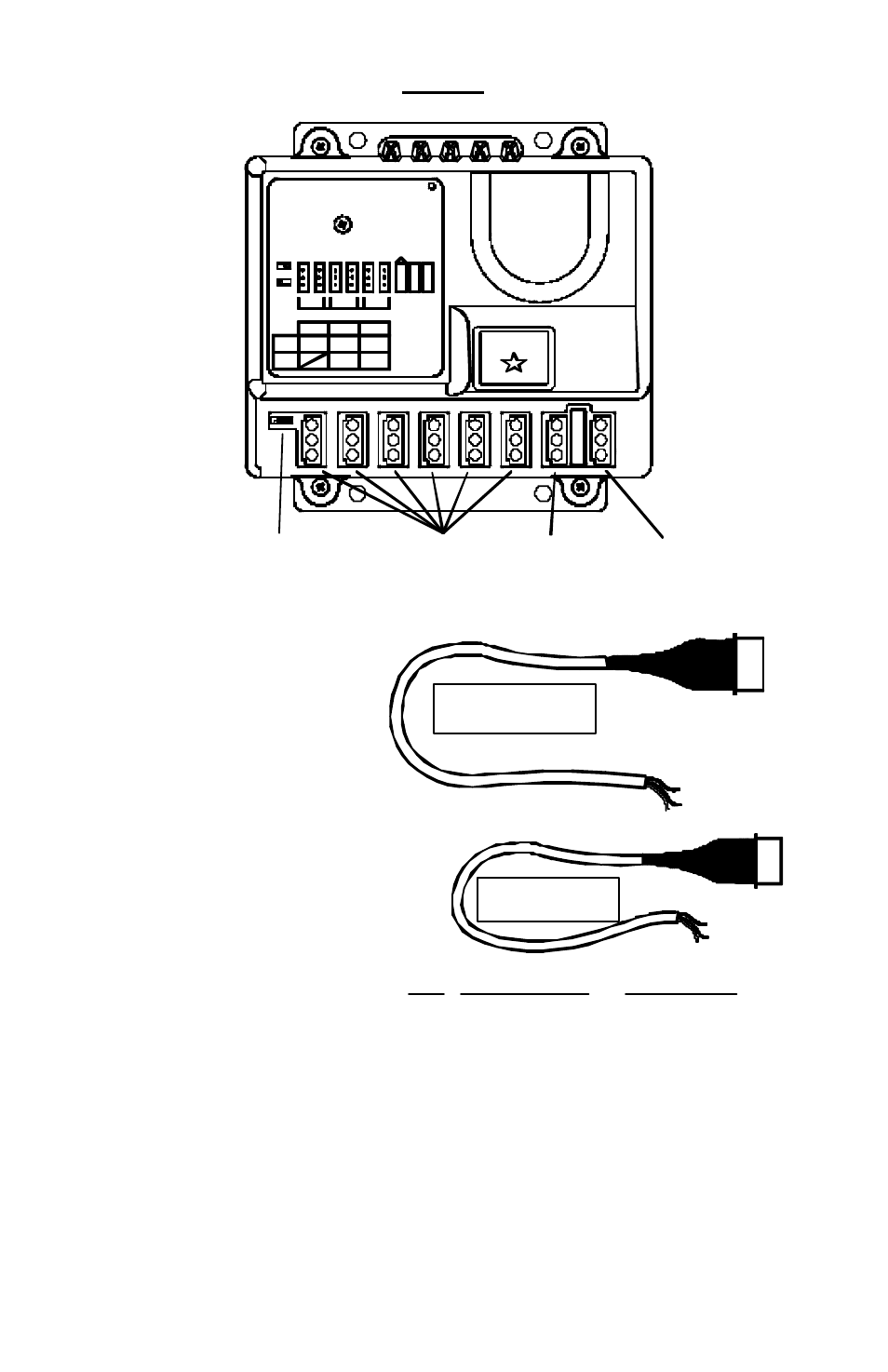

POWER
FUSE
ENABLE
STROBE HEADS
POS 2
POS 1 1+2 3+4 5+6
B
1 _4 5+6
A
LOW
H I
C
STATUS
PATTERN
SELECT
STROBE POWER SUPPLY
STAR-PAK
POS 2
POS 1
RP966/RP996
3-4 1-2 5-6
A
B
C
I
15
I
P
-
+
+
+
+
R
STROBE
OUTLETS
POWER
PLUG
ENABLE
PLUG
HIGH/LOW - HEAD
SELECT JUMPER
POWER PLUG FOR
RP966 AND RP996 Red = Power
Black = Ground
White = Pattern Select
POWER
PLUG
Red = Enable Heads 5 & 6 Enable Heads 5 & 6
Black = Enable Heads 3 & 4 Enable Heads 1, 2, 3, & 4
White = Enable Heads 1 & 2 High/Low Option Switching
ENABLE PLUG FOR
RP966 AND RP996
ENABLE
PLUG
Wire Jumper Set For Jumper Set For
Color 3-Pair Head Select High/Low Option
