Page 7: Enable connector power connector
-5-
All Heads On and Off Toge ther (High Power Only)
(This setup is typically used for most “On/Off” applications)
For this set up, only one On/Off switch (not included) is necessary.
1. Connect the black wire from the POWER connector to a good chassis ground.
2. Connect all three wires (red, black , and white) from the ENABLE plug and the red wire
from the POWER connector to a +12VDC power source through your On/Off switch.
3. The white wire from the POWER connector will be left unconnected for now. Once your
system is installed, the white wire will be used to program the flash pattern. Proceed to
the Pattern Selection section on page 8.
All Heads On and Off Together (Low Power Only)
For this set up, only one On/Off switc h (not included) is necessary.
1. Connect the black wire from the POWER connector and the white wire from your
ENABLE plug to a good chassis ground.
2. Connect the red and black wires from the ENABLE plug and the red wire from the
POWER connector to a +12VDC power source through your On/Off switch.
3. The white wire from the POWER connector will be left unconnected for now. Once your
system is installed, the white wire will be used to program the flash pattern. Proceed to
the Pattern Selection section on page 8.

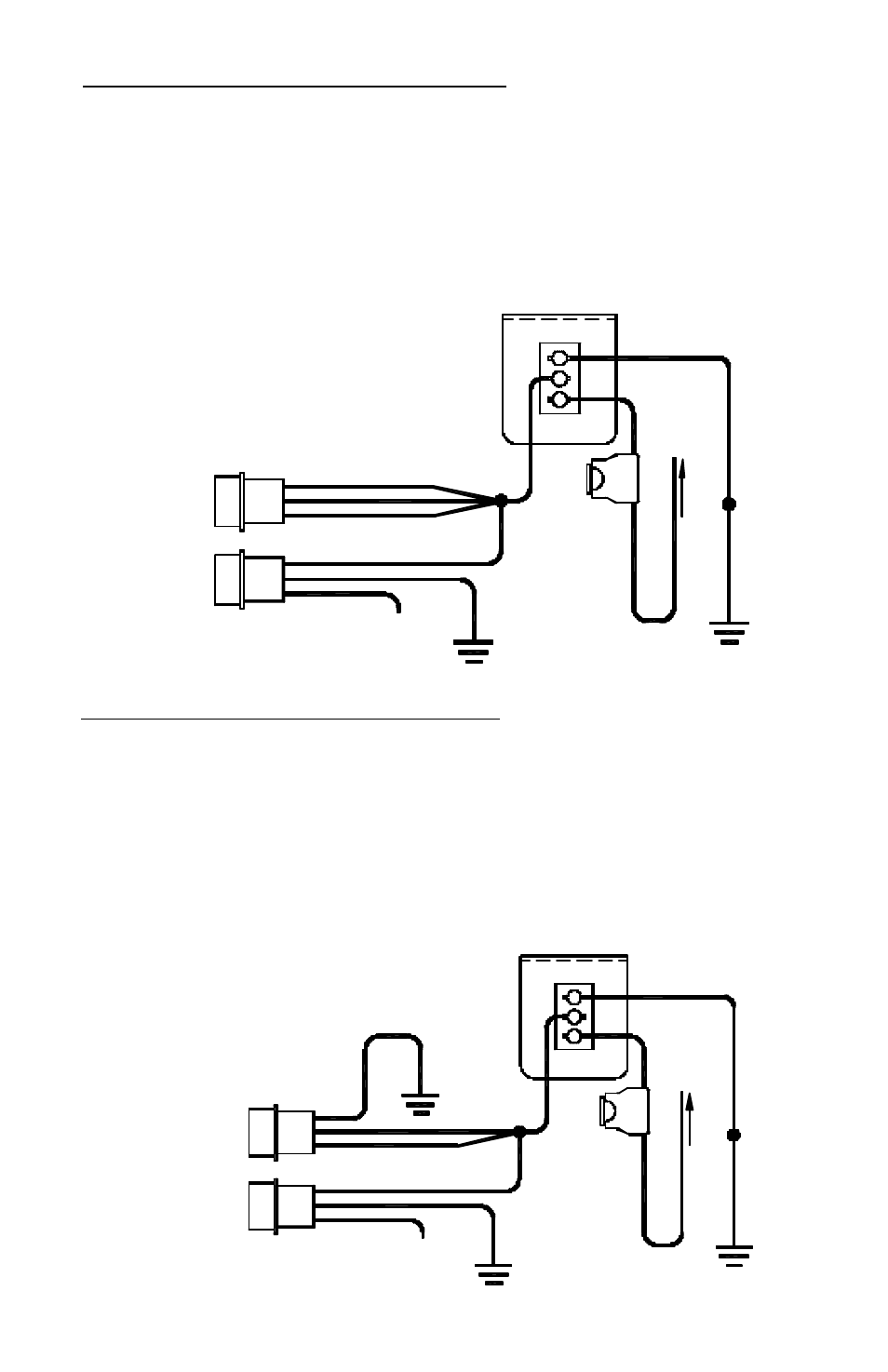

RP966/RP996
All Heads Activate Together
High Power Only
(Set Jumper in
High/Low Option Position)
WHITE
BLACK
1
SW1
OFF
RED
GOOD
CHASSIS
GROUND
BLACK
ON
2
3
2
1
3
CONNECT TO +12 VDC
PLUGS
INTO
POWER
PAK
RED
ENABLE
CONNECTOR
POWER
CONNECTOR
Pattern Select:
Touch and release to +12VDC
to set pattern then tape off
WHITE
BLACK
RED
PLUGS
INTO
POWER
PAK
GOOD
CHASSIS
GROUND
SP3860-1-15 LIGHTED SWITCH PANEL
(REAR VIEW)
15 AMP
FUSE
RP966/RP996
All Heads Activate Together
Low Power Only
(Set Jumper in
High/Low Option Position)
RED
PLUGS
INTO
POWER
PAK
ENABLE
CONNECTOR
WHITE
BLACK
PLUGS
INTO
POWER
PAK
POWER
CONNECTOR
WHITE
RED
BLACK
Pattern Select:
Touch and release to +12VDC
to set pattern then tape off
1
SW1
OFF
RED
GOOD
CHASSIS
GROUND
BLACK
O N
2
3
GOOD
CHASSIS
GROUND
2
1
3
GOOD
CHASSIS
GROUND
CONNECT TO +12 VDC
SP3860-1-15 LIGHTED SWITCH PANEL
(REAR VIEW)
15 AMP
FUSE
