Chapter 3: Configuring the 1794sc-IRT8I for ControlLogix/CompactLogix 3-7
User's Manual Pub. 0300242‐01 Rev. A
3. Configure the Generic Flex Module (i.e. 1794sc-IRT8I)
Section 3.4
Module
Configuration
The addition of the Generic Flex Module profile makes it possible to enter the
configuration data for the IRT8I module. The configuration tags for the IRT8I are
located under the controller tags. The following figure describes the tag structure
allocated by the Generic Flex Module profile.

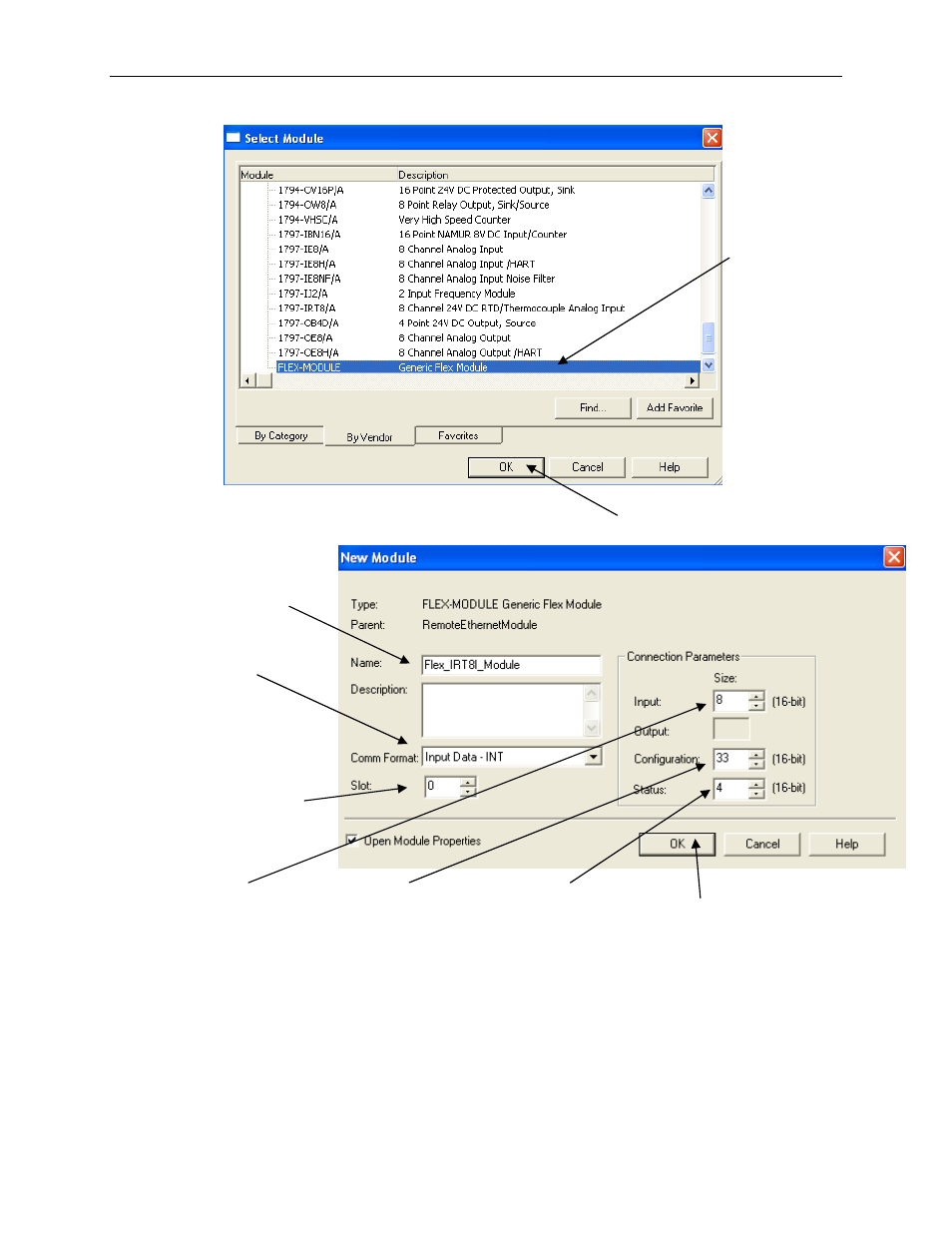

Name the module
Enter “Input Data – INT” for
Comm. Format
Enter module slot #
Enter the input size
(Always 8 for the IRT8I) Enter the config. size
(Always 49 for the IRT8I) Enter the status size
(Always 4 for the IRT8I)
Click OK
Select Generic Flex
Module
Click OK
