Ch 3 – Speck Electronics MicPre 5.0 User Manual

Page 30

The mix link connector
allows the mix section of
the MP 5.0 to be
combined with any
number of MP 5.0's to
form a fully integrated
mix section. The mix
link connector can also
be used to connect two
MP 5.0's for M-S (mid-
side) micing.

Refer to page 8 for mix
link pin-outs and pages 9 through 12 for examples of MP 5.0
interfaces.

This connector is available to provide a source of dual regulated
DC voltage to the Speck ASC equalizer and future Speck products.
An optional DC interface cable (p/n ASC-DCI) and instructions for
connection are available from Speck.

This power switch applies AC (mains) power to the MP 5.0. An
LED on the front panel will illuminate when the power is “On”.

This AC (mains) power inlet accepts a standard IEC power cord.
Before connecting the power cord, make certain that power cord
matches the operating voltage shown on the rear panel above the
power switch.

The 120 volt model (Model MP5.0-NA) is designed to operate
from 100 or 120 volts, 50/60Hz. The 230 volt model (Model
MP5.0-EU) is designed to operate from 220, 230, or 240 volts,
50/60Hz.

The ground pin of the power cord is internally connected to the
chassis. For safety reasons, do not lift the ground on the power
plug by using a ground lift adapter.

The AC power inlet has integral fuse holder that uses a
5mm x 20mm slow blow type fuse. To avoid the risk of fire,
always replace the fuse with the correct value fuse as marked on
the rear panel; .2 amp for the 120V model, or .1 amp for the 230V
model.

23. Aux DC output connector

25. AC power inlet

26. Fuse

24. Power switch

22. Mix link connector

Ground

+16 VDC

-16 VDC

PIN 1

PIN 1
PIN 2

PIN 2
PIN 3

PIN 3

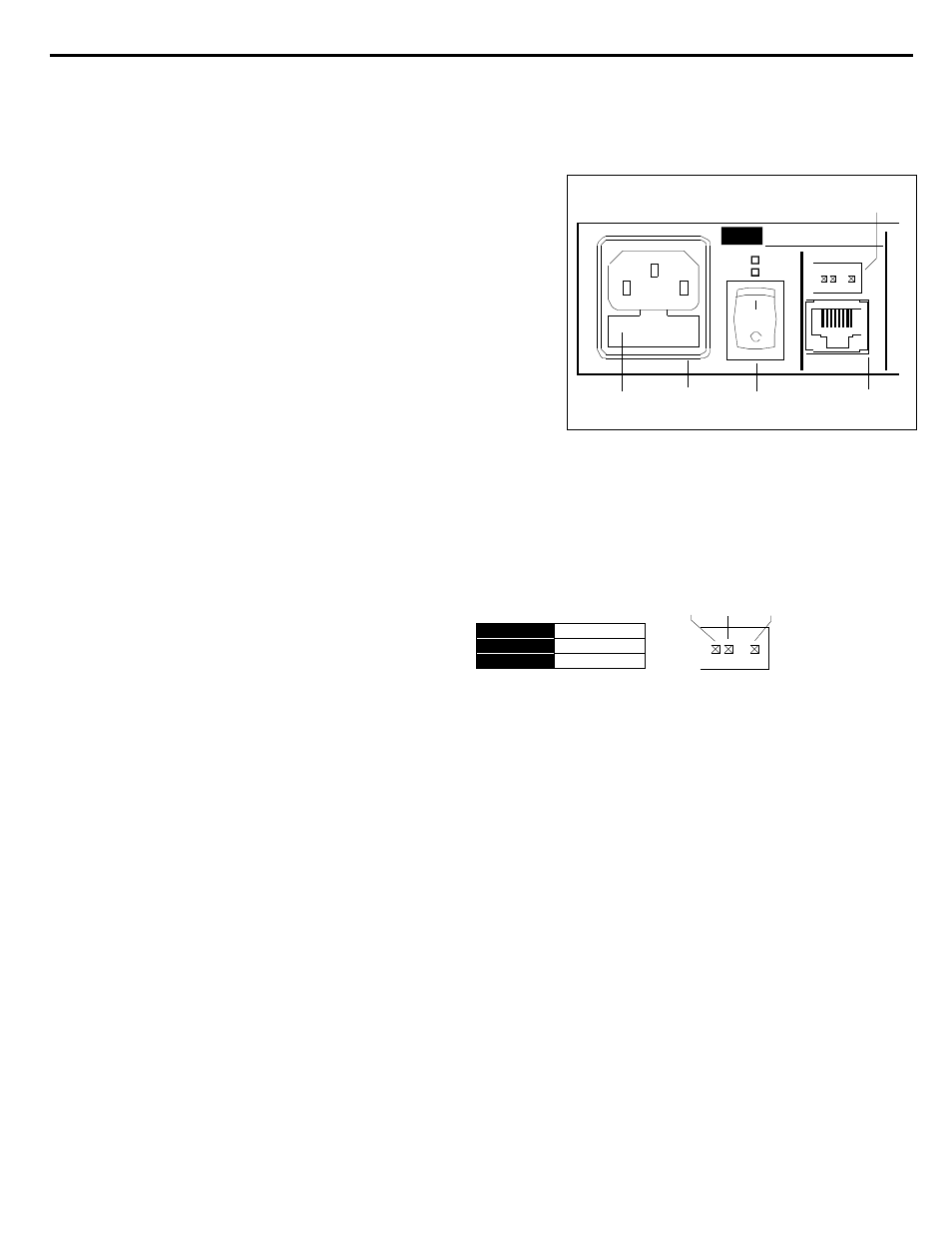

Figure 15. Pin-outs for Aux DC out

Chapter 3

Operation Section

MIX LINK

230V (.1A)

AUX DC OUT

CAUTION

115V (.2A)

RISK OF ELECTRICAL SHOCK - DO NOT

OPEN OR EXPOSE TO RAIN OR MOISTURE.
