With only a simple connection, three or more MP 5.0’s can be summed
together and operate like a multichannel mixer.
To link the MP 5.0's, an optional mix link cable is required. This link
cable has as many as eight RJ-45 modular plugs wired in a "daisy chain"
configuration. All of the plugs are a "clear" color except for a "red"
colored plug at one end. The MP 5.0 that receives the "red" plug is the
unit that will become the master.

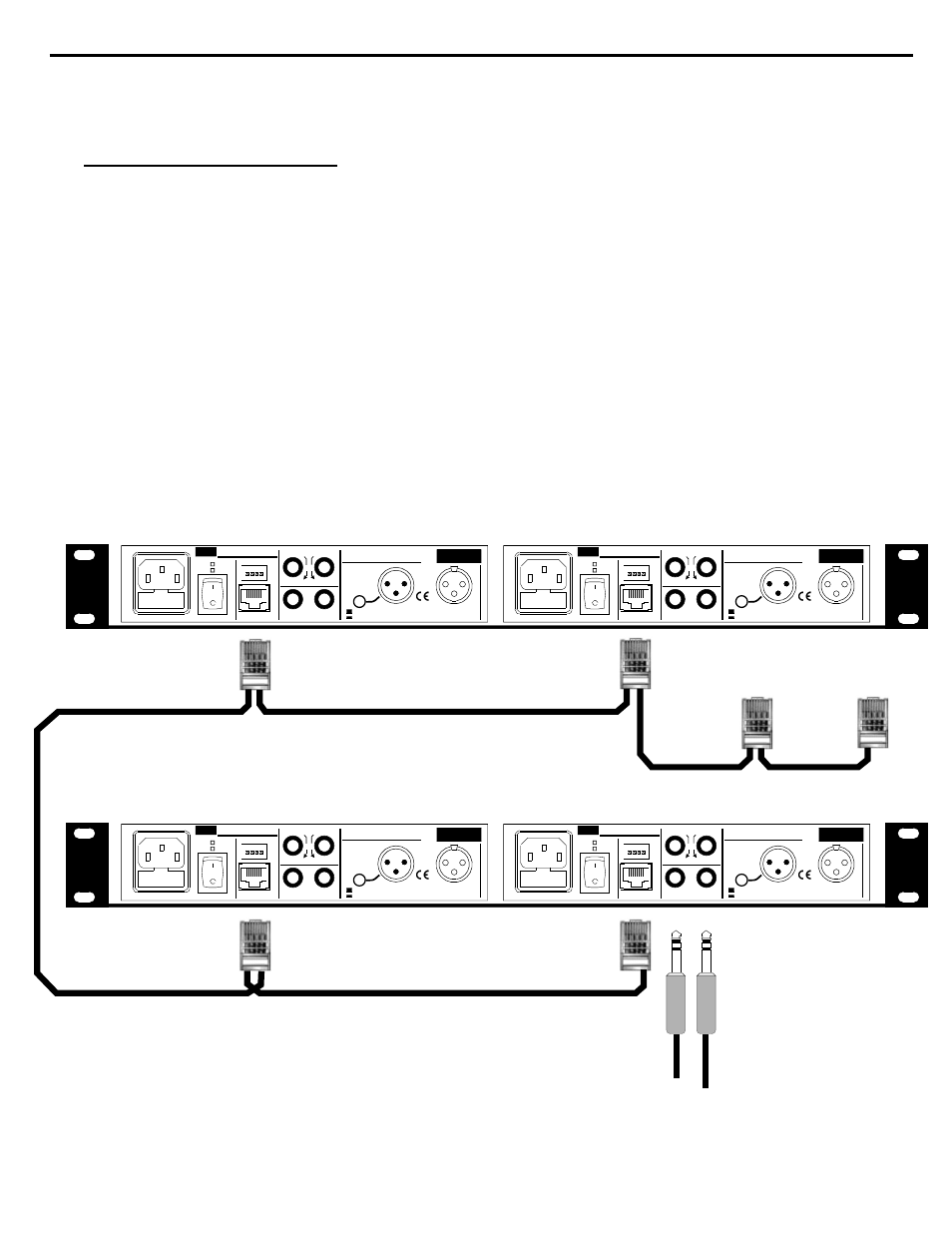

The illustration below shows how to link multiple MP 5.0's.
Linking more
than two MP 5.0's
Chapter 2 Installation Section 12
