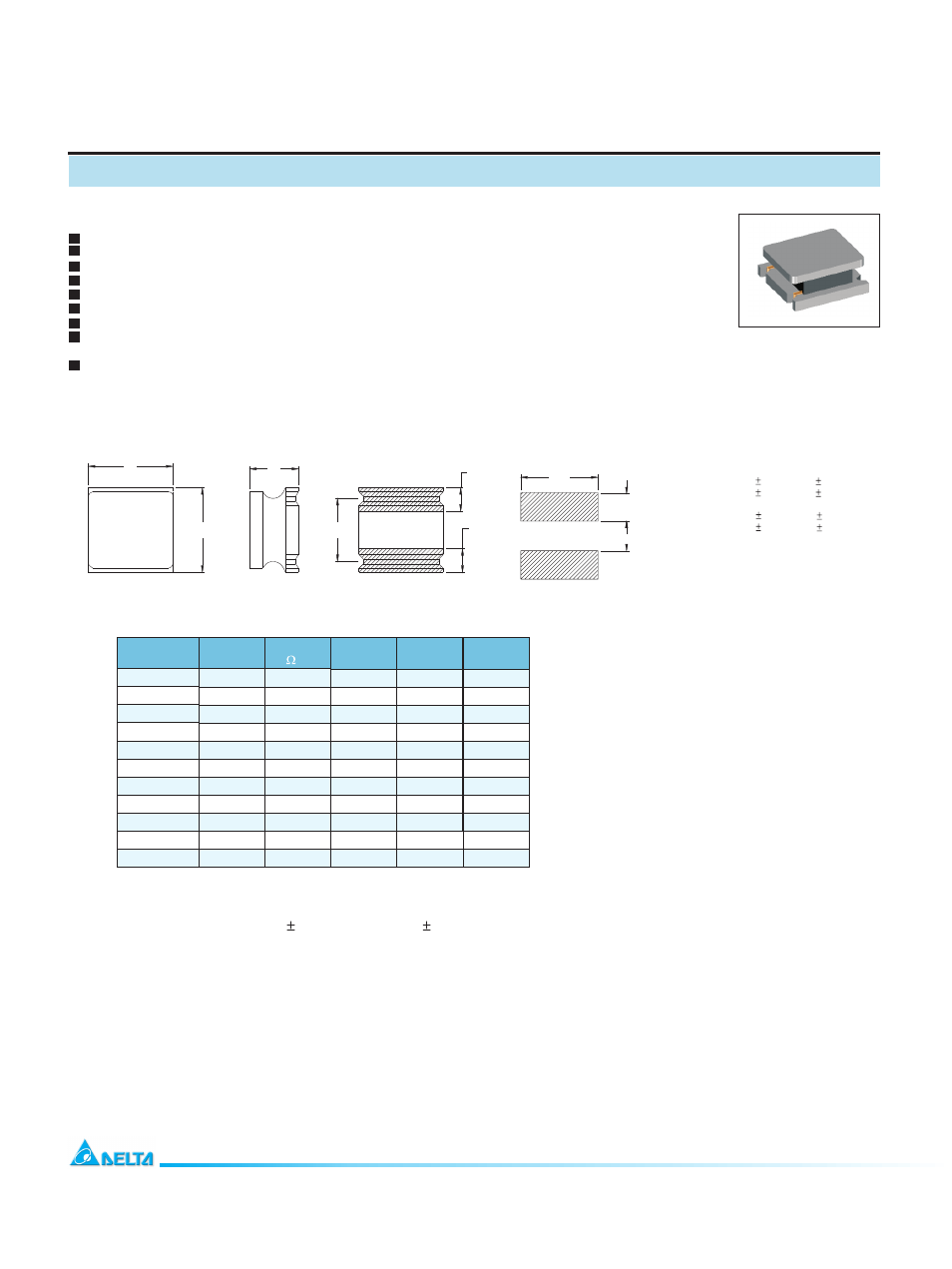

SMT Power Inductor

SIG3015 Type

RoHS compliant.
Halogen free compliant.
Low profile (1.5mm max. height ), SMD type.
Shielded
Self-leads, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor applications.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

25

: 100KHz, 0.1V

o

C

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com

23

DCR

(m ) Max.

Ir

(Adc)

3

Isat

(Adc)

2

L

(uH)

1

PART NO.

1. Tolerance of inductance: 30% for 1.0~1.5uH, 20% for 2.2~47uH.
2. Isat is the DC current which cause the inductance drop 30% typical of its nominal inductance without current.
3. Ir is the DC current which cause the surface temperature of the part increase less than 40

o

C.

o

o

4. Operating temperature: -25 C to 120 C (including self-temperature rise).

Mechanical Dimension:

UNIT : mm/inch
A = 3.00 0.1 / 0.118 0.004

C = 1.50 / 0.059 MAX.
D = 0.90 0.2 / 0.035 0.008
E = 1.90 0.2 / 0.075 0.008

RECOMMENDED PAD PATTERNS

2.2

0.8

2.7

D

B

C

A

D

E

B = 3.00 0.1 / 0.118 0.004

SELF-RESONANT

FREQUENCY

(MHz)Min.

SIG3015 - 1R0

1.0

32

2.10

2.10

100

SIG3015 - 1R5

1.5

48

1.80

1.82

87

SIG3015 - 2R2

2.2

72

1.48

1.50

64

SIG3015 - 3R3

3.3

96

1.21

1.23

49

SIG3015 - 4R7

4.7

144

1.02

1.04

40

SIG3015 - 6R8

6.8

192

0.87

0.88

36

SIG3015 - 100

10.0

276

0.70

0.71

28

SIG3015 - 150

15.0

432

0.56

0.56

23

SIG3015 - 220

22.0

624

0.47

0.47

20

SIG3015 - 330

33.0

1008

0.39

0.37

18

SIG3015 - 470

47.0

1609

0.32

0.30

17
