4590 Micro Reactors

P a r r I n s t r u m e n t C o m p a n y

26

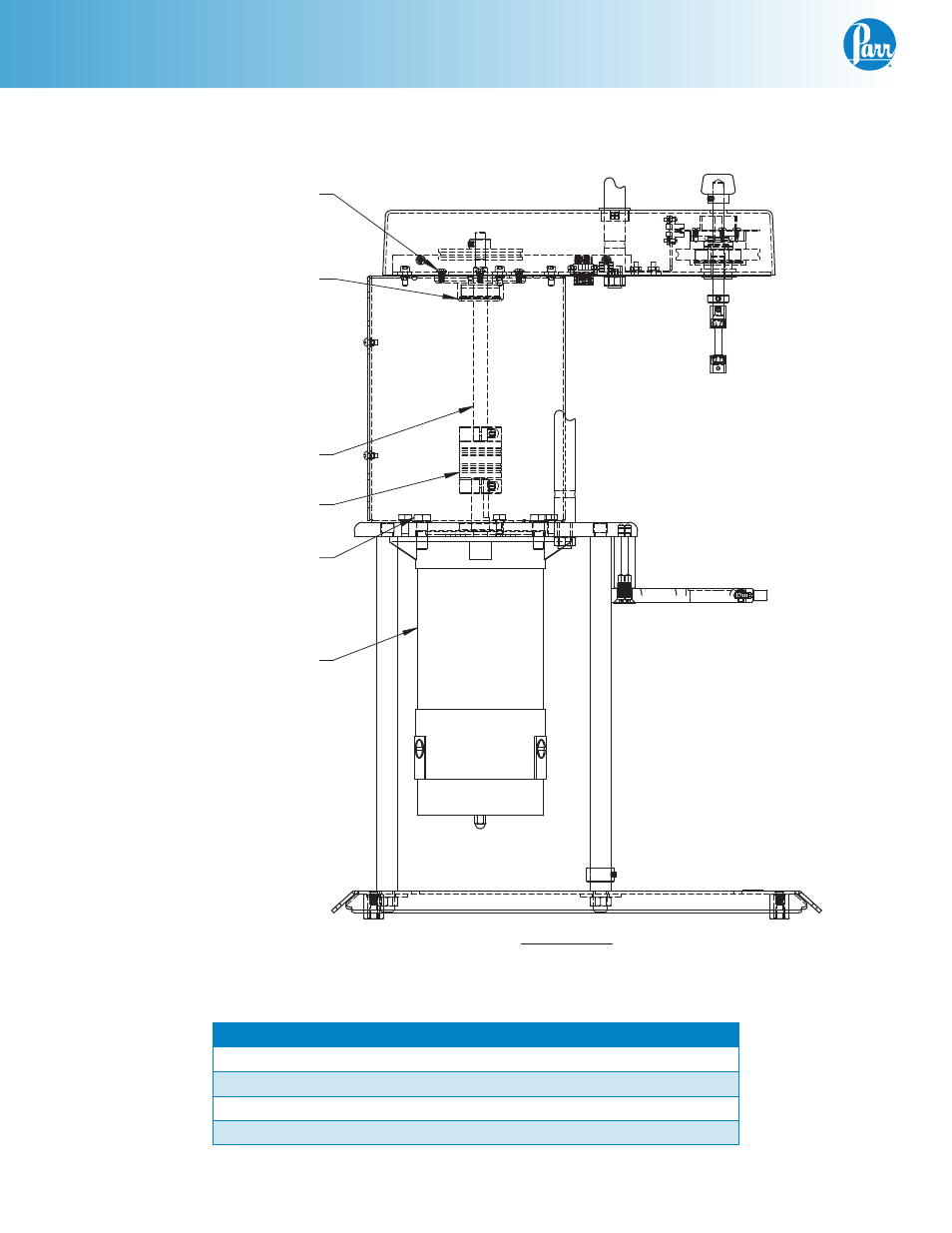

4591/4592 Micro Reactor with Variable Speed 1/4 HP and Explosion Proof Motors

(SEE MOTOR TABLE)

56C MOUNT MOTOR

3/8-16 X 1" HHCS

4X SB3716HX16

HOUSING, BEARING

4591/4592

4X SW37NL

2209HC

BEARING

2187HC

COUPLING, FLEXIBLE

SNAP RING

3/8 LOCK WASHER

4X SB1932BT06

10-32 X 3/8 BHSCS

2222HC

DRIVE SHAFT

4X TW19NL

LOCK WASHER

2226HC

A3443HC

BEARING HOUSING

ASSEMBLY (REF)

2221HC

HP

VOLTS

TYPE

PART NO.

1/4

90

VARIABLE SPEED

A388EES

1/4

90

VARIABLE SPEED, XP

A388EEQ

1/4

180

VARIABLE SPEED

A388EET

1/4

180

VARIABLE SPEED, XP

A388EER
