4590 Micro Reactors
w w w . p a r r i n s t . c o m 23

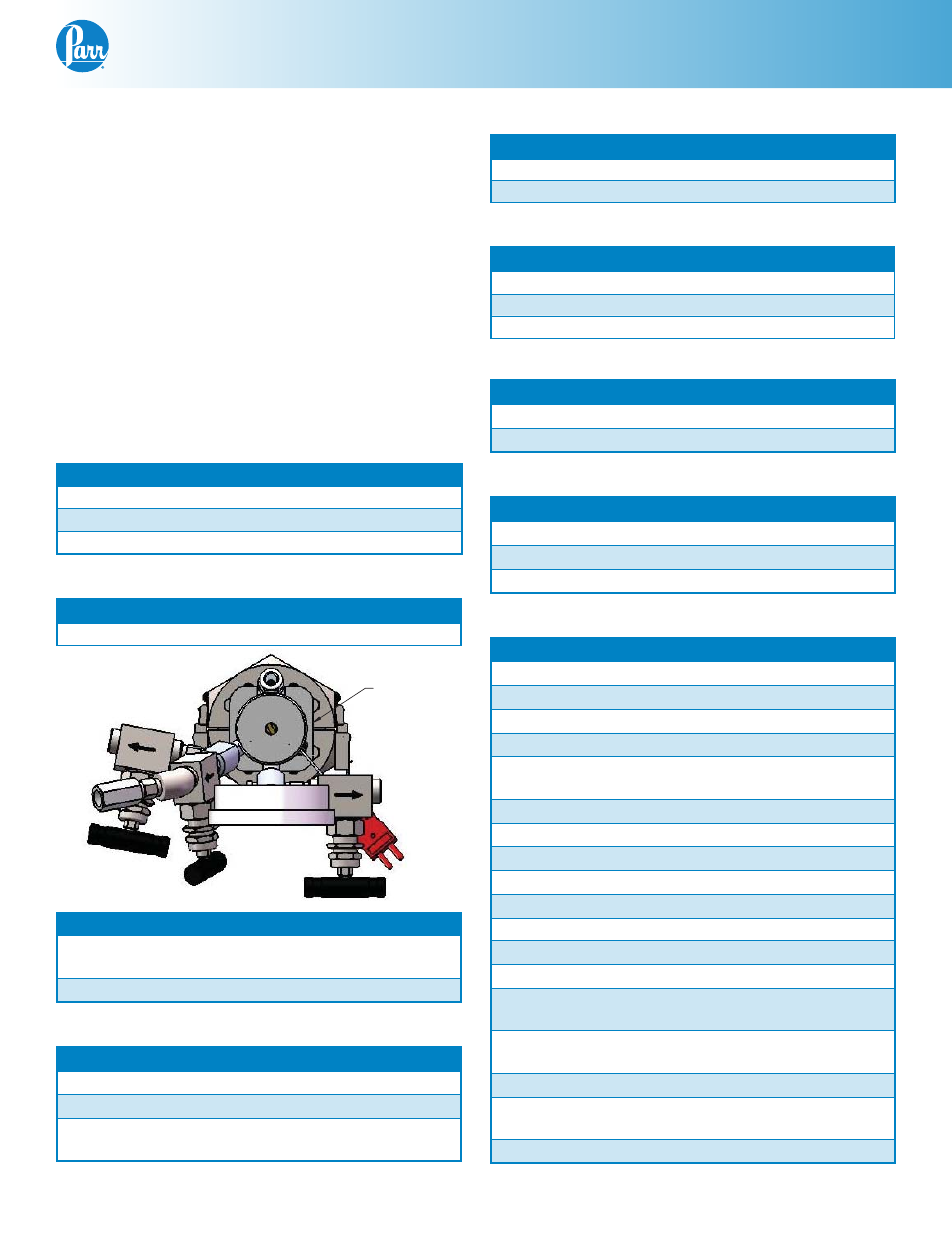

3340HC2
HEAD
High Pressure / High Temperature Reaction
Vessel Parts List
Consult the itemized list for your reactor provided
along with this manual. For purpose of reactor identi-
fication, the following abbreviation/codes are used:
FH - Fixed Head SR - Split Ring
FG - Flat Gasket
* For parts made from alternate materials use the
codes shown below as a suffix to the standard part
number.
CM - Alloy 400 CC - Alloy 20Cb3
CT - Alloy 600 CA - Titanium G2 or G4
CG - Alloy B-2 CH - Alloy C-276
CX - Zirconium
Cylinders*
Part No. Description Code
2430HC18 Cylinder, 25 mL (100 mL profile) SR FG
2430HC19 Cylinder, 50 mL (100 mL profile) SR FG
2430HC3
Cylinder, 100 mL SR FG
Heads*
Part No. Description Code
3340HC Head FH FG
Split Rings and Accessories
Part No. Description Code
A2345HC5 Split Ring, with six bolts,
captive compression ring SR FH
232HCF3DE Compression Bolt SR FH
Gaskets & Seals
Part No. Description Code
48HC Gasket, silver, mag drive
48HCFG Gasket, gold plated, mag drive
429HC2KL Flat Head Gasket, Flexible
Graphite
SR FG
Thermowell*
Part No. Description Code
A2067HC5 Thermowell, 25/50mL FH
A2067HC4 Thermowell, 100mL FH
Dip Tube*
Part No. Description
1443HC Dip Tube, 25 mL
1443HC2 Dip Tube, 50 mL
1443HC3 Dip Tube, 100 mL
Shaft/Impeller Assembly
Part No. Description Code
A1987HC5 Shaft/Impeller, 25/50mL FH
A1987HC6 Shaft/Impeller, 100mL FH
Gages
Part No. Description
593HCPG Gage, 3-1/2” 3000 psi/bar
593HCP40AD Gage, 3-1/2” 4000 psi/bar
593HCP50AD Gage, 3-1/2” 5000 psi/bar
External Fittings
Part No. Description
A176VB Straight Valve 1/4 NPTF-F
1452HC12 Adapter “A” x 1/4NPTM 1/4NPTF
35HC Compression Nut
40HC Bushing
1452HC13 Gage Adapter, ¼” NPT (top), (3) ¼” NPT
(side)
3366HC 1/8” Tube Seal Nut
3367HC 1/8” Tube Seal Ferrule
302VBAD Connector, 3/8 Tube – 1/4NPTF
1446HC Adapter, “A” ConeF – 1/4NPTM
1359HC* Nut for Thermowell ¼ T
1360HC* Ferrule for Thermowell ¼ T
A472E2 Thermocouple, SS, 9-1/2” L, 1/8” OD
A472E Thermocouple, SS, 7-1/2” L, 1/8” OD
A1357E2 Thermocouple, SS,1/16”, 9-1/2” L,
1/16”OD
A1357E4 Thermocouple, SS, 1/16”, 7-1/2” L,
1/16”OD
A2138E Thermocouple, SS, 1/16”, dual 7-1/2” L
A888HC2 Safety Rupture Disc Assembly (See
231M)
A1120HC6* Magnetic Drive Assembly
