4590 Micro Reactors
P a r r I n s t r u m e n t C o m p a n y 24
Vessel Heaters (Standard Stand Configuration)
Part No. Description
A3240HC9EB Heater Assembly, TW, 700W, 115V, 25/50 mL
A3240HC9EE Heater Assembly, TW, 700W, 230V, 25/50 mL
A3240HC6EB Heater Assembly, TW, 700W, 115V, 100 mL
or 25/50 mL w/ 100 mL profile for HP/HT
A3240HC6EE Heater Assembly, TW, 700W, 230V, 100 mL
or 25/50 mL w/ 100 mL profile for HP/HT
A511E2 Thermocouple for Heater, Type J
Motor
Part No. Description
A1554EES Motor w/ filter, 1/8 HP @ 130 VDC
(1/16 HP @ 90 VDC), VS
1355EES Motor, 1/8 HP @ 130 VDC
(1/16 HP @ 90 VDC), VS
A1393HC Air Motor, VS
A388EEQ Motor, 1/4 HP @ 90 VDC, VS, XP
A388EER Motor, 1/4 HP @ 180 VDC, VS, XP
A388EES Motor 1/4 HP @ 90 VDC, VS
A388EET Motor 1/4 HP @ 180 VDC, VS
NOTES:
1) Additional parts may be required to convert to other
sizes and types of motors.
2) Parr Controllers are set up for 90 VDC or 180 VDC.
Acronym Definitions
VS = Variable Speed
XP = Explosion Proof Rated
TW = Thermowell
HP/HT = High Pressure/High Temperature

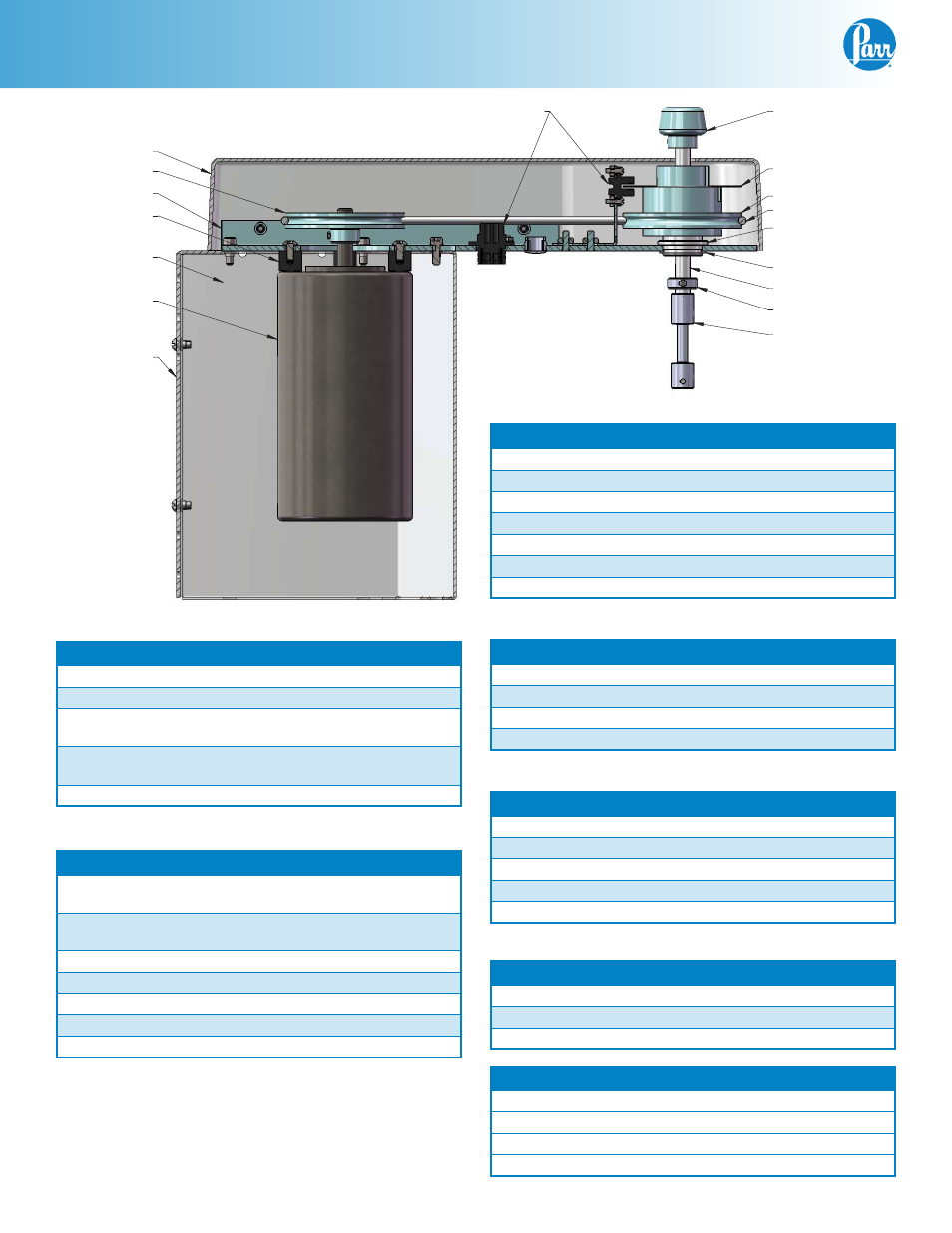

OVERARM PLATE
OPTICAL WHEEL
ENCASEMENT
MOTOR
RELEASE KNOB
DRIVEN PULLEY
BELT
HUB ASSEMBLY
SNAP RING
ISOLATOR
UPPER DRIVE SHAFT
COLLAR
UNIVERSAL COUPLING
BELT GUARD
DRIVE PULLEY
TACH SENSOR ASSEMBLY
BACK PLATE
Overarm and Stand Parts List
Driven Pulley Assembly
Part No. Description
A2179HC Driven Pulley Assembly includes:
839HC Ball Bearing
841HC Snap Ring, External .693”
842HC Snap Ring, 1.804”
858HC2 Pulley, Driven
862HC Support Hub
299HC2 Bushing, PTFE
Upper Drive Shafts
Part No. Description
A2223HC Upper Drive Shaft
2075HC Shaft Coupling .38
845HC2 Release Knob, .38 Shaft
863HC Collar
Drive Pulleys (Motor)
Part No. Description Belt
857HC Pulley 600 RPM 847HC8
857HC3 Pulley 800 RPM 847HC8
857HC4 Pulley 1000 RPM 847HC8
857HC5 Pulley 1700 RPM 847HC4
857HC7 Pulley, Air Motor 847HC8
Optional Tach Parts
Part No. Description
A2262E Optical Tach Package includes:
1564HC Optical Wheel
A1001E2 Tach Sensor Assembly (5.5”L)
