En

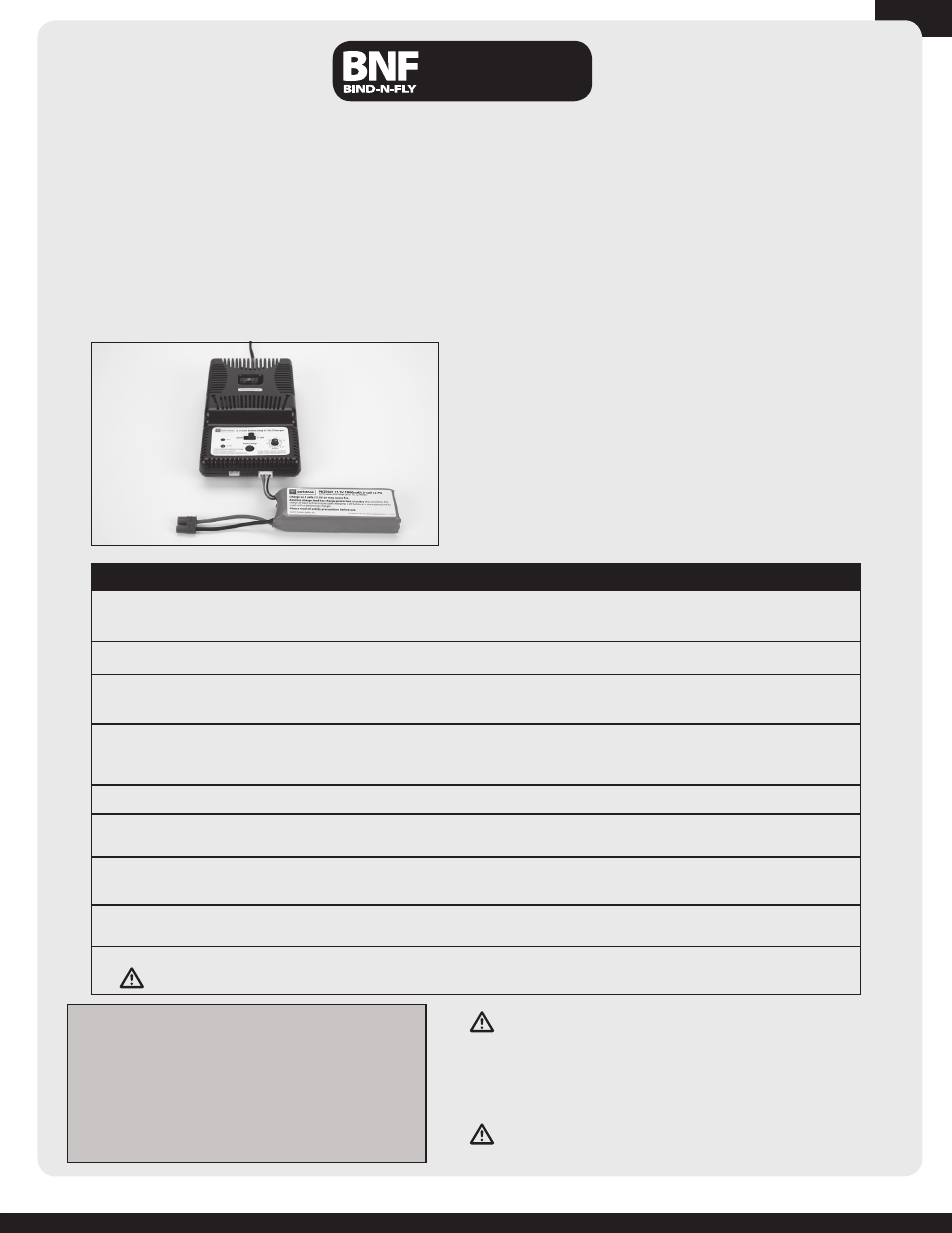

Charging the Flight Battery

ONLY

Battery Capacity

Maximum Charge Rate

300-400mAh

300mAh

500-1000mAh

500mAh

1000-1500mAh

1A

1500-2000mAh

1.5A

2000mAh +

2.0A

The Battery Charging Process

1. Charge only batteries that are cool to the touch and are not damaged. Look at the battery to make sure it is not

damaged e.g., swollen, bent, broken or punctured.

2. Attach the input cord of the charger to the appropriate power supply (12V accessory outlet).

3. When the Li-Po charger has been correctly powered up, there will be an approximate 3-second delay, then an

audible “beep” and the green (ready) LED will flash.

4. Turn the control on the Amps selector so the arrow points to the charging rate required for the Battery (see chart,

for example the Extra 300’s 2200mAh Li-Po battery will charge at 2.0 amps). DO NOT change the charge rate once

the battery begins charging.

5. Move the cell selector switch to 2-cell or 3-cell for your battery.
6. Connect the Balancing Lead of the Battery to the 2-cell (it has three (3) pins) or 3-cell (it has four (4) pins) Charger

port.

7. The green and red LEDs may flash during the charging process, when the charger is balancing cells. Balancing

prolongs the life of the battery.

8. When the battery is fully charged, there will be an audible beep for about 3 seconds, and the green LED will shine

continuously.

9. Always unplug the battery from the charger immediately upon completion of charging.

CAUTION: Overcharging a battery can cause a fire.

Your Extra 300 comes with a DC balancing charger and 3S Li-Po

battery. You must charge the included Li-Po battery pack with a

Li-Po specific charger only (such as the included charger). Never

leave the battery and charger unattended during the charge

process. Failure to follow the instructions properly could result

in a fire. When charging, make certain the battery is on a heat-

resistant surface. It is recommended to charge the battery pack

while you are assembling the aircraft. The flight battery will be

required to confirm proper aircraft operation in future steps.

DC Li-Po Balancing Charger Features

• Charges 2- to 3-cell lithium polymer battery packs

• Variable charge rates from 300mAh to 2-amp

• Simple single push-button operation

• LED charge status indicator

• LED cell balance indicator

• Audible beeper indicates power and charge status

• 12V accessory outlet input cord

Specifications

• Input power: 12V DC, 3-amp

• Charges 2- to 3-cell Li-Po packs with minimum

capacity of 300mAh

3S 11.1V 2200mAh Li-Po Battery Pack

The ParkZone 3S Li-Po battery pack features a balancing

lead that allows you to safely charge your battery pack

when used with the included ParkZone Li-Po balancing

charger.

WARNING: Failure to use the proper charger for a Li-Po

battery can result in serious damage, and if left charging

long enough, will cause a fire. ALWAYS use caution when

charging Li-Po batteries.

WARNING: Selecting a charge rate higher than 1x (one

times) the battery capacity may cause a fire.

®

4
