Note: The information on this page is for maintenance of the

Extra 300. Spinner, propeller and propeller adapter damage can

result from aircraft crashes.

CAUTION: DO NOT handle propeller parts while the

flight battery is connected to the ESC. Personal injury

could result.

1. Put collet of propeller adapter (PKZ5102) on the motor shaft

(PKZ5116).

Tip: Some force may be required to fully install the collet on the

motor shaft.

2. Put the swage plate of the propeller adapter (PKZ5102) on

the collet shaft.

3. Put the spinner backplate (PKZ5107) on the swage plate of

the propeller adapter.

4. Put the propeller (PKZ5101) on the collet of the propeller

adapter (PKZ5102).
Notice: The propeller (PKZ5101) side with the numbers for

diameter and pitch (for example 10.5 x 9) should face out from

the spinner backplate.

5. Put the hex nut of the propeller adapter (PKZ5102) on the

collet shaft.

6. Tighten the hex nut on the collet to hold the propeller and

propeller adapter on the motor (PKZ5116). A tool may be

required to tighten the nut. (Tool is not included).

7. Make sure spinner (PKZ5107) is fully seated on the spinner

backplate.

8. Install and tighten a screw in the spinner to hold the spinner

on the collet shaft.

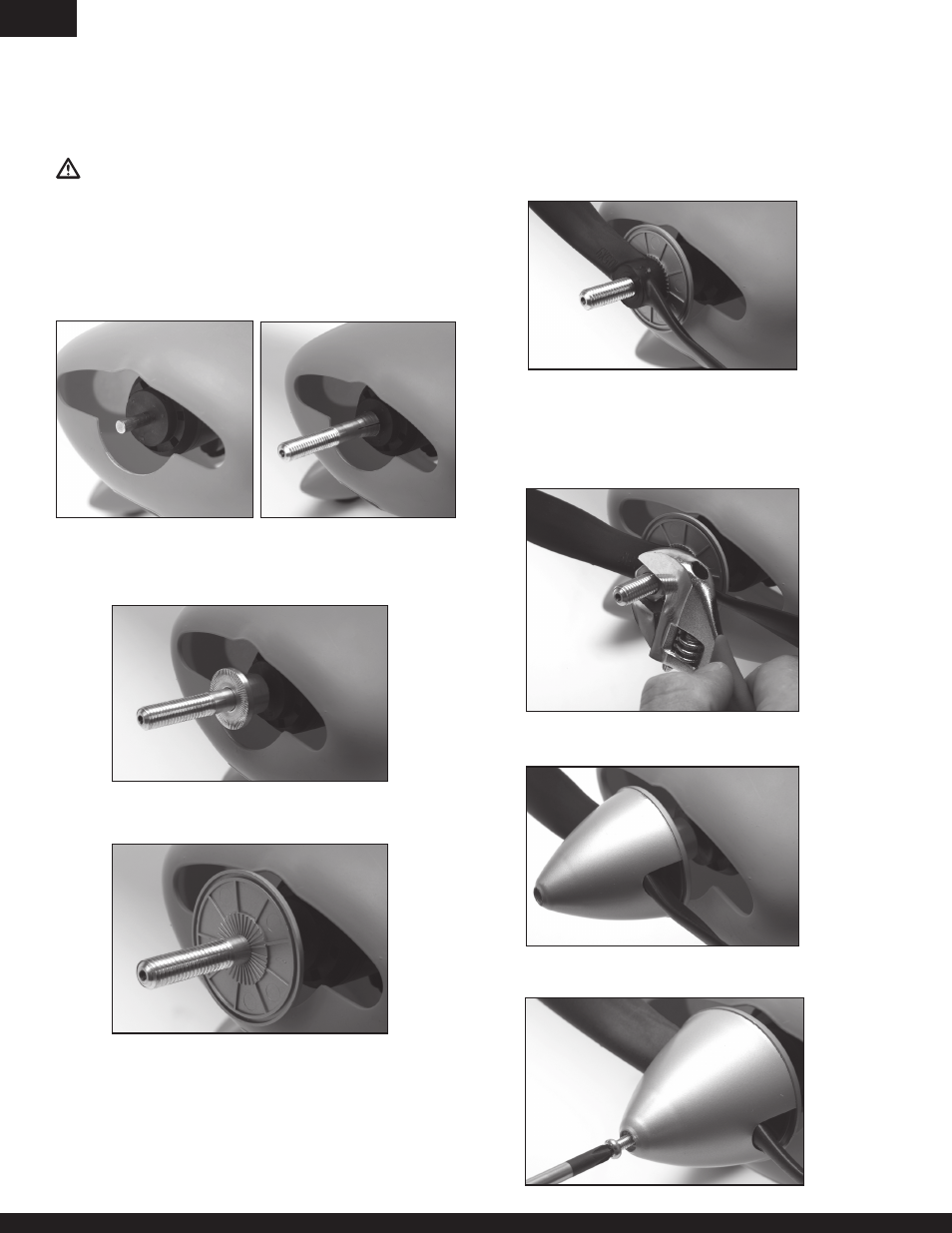

Installing Propeller Adapter, Propeller and Spinner

Note: The motor installed in the model may not look the same as the

motor in photographs.
