Page 7
2-3-4 Maintenance Bypass Operation

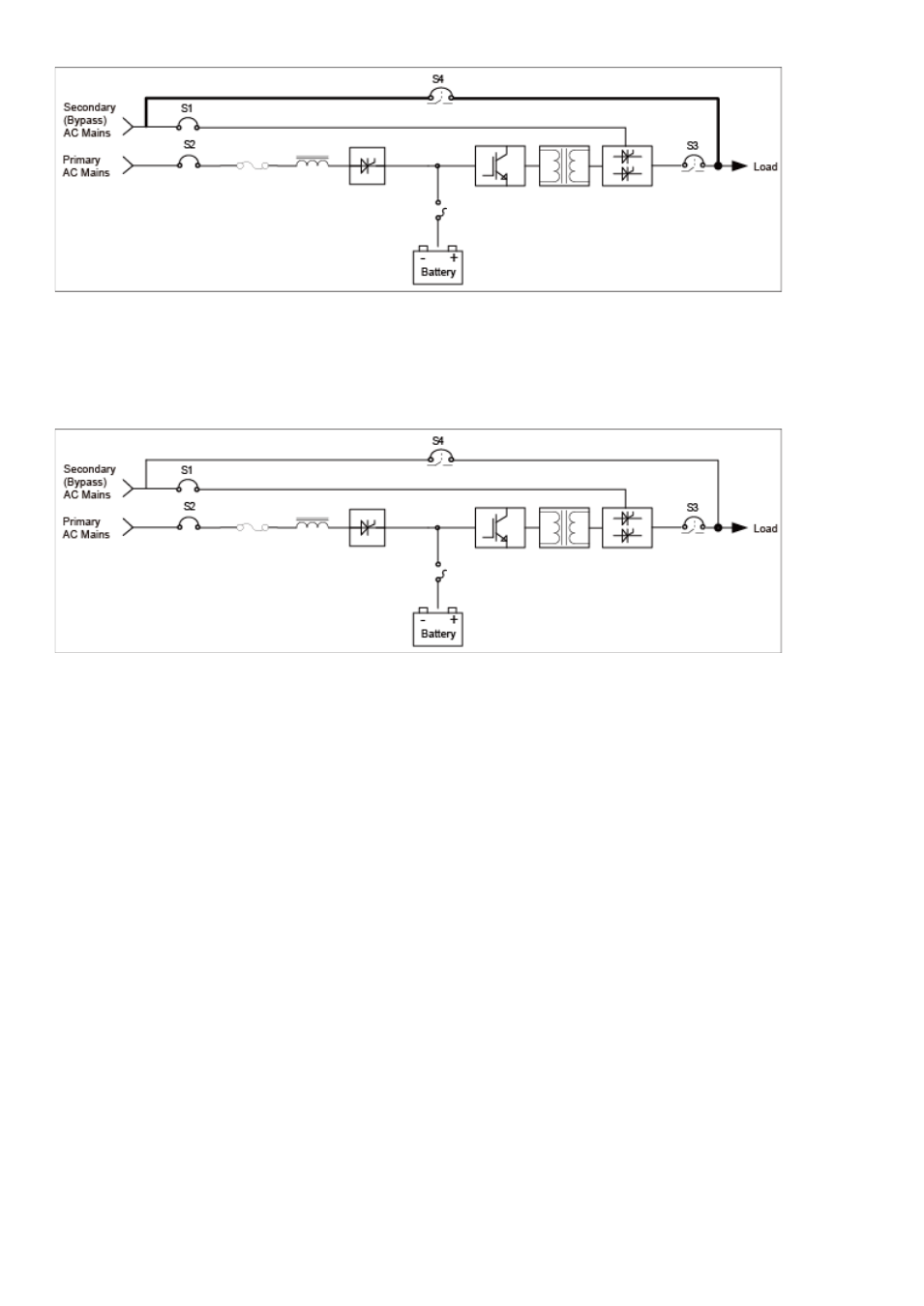

Fig. 2-3-4 Maintenance Bypass Operation
AC mains power goes through the maintenance bypass switch to the load. This mode is only for trained
professionals to do regular system and cleaning maintenance.
2-3-5 EPO Switch
Fig. 2-3-5 EPO Switch
UPS is going to be turned off and outputs no power in this mode for emergency.
