Mount the gauge so that no vibrations occur. The gauge
may be mounted in any orientation. To keep conden-
sates and particles from getting into the measuring
chamber preferably choose a horizontal to upright posi-
tion and possibly use a seal with a centering ring and
filter. If adjustment should be possible after the gauge
has been installed, be sure to install it so that the but-
tons can be accessed with a pin (
→  19).

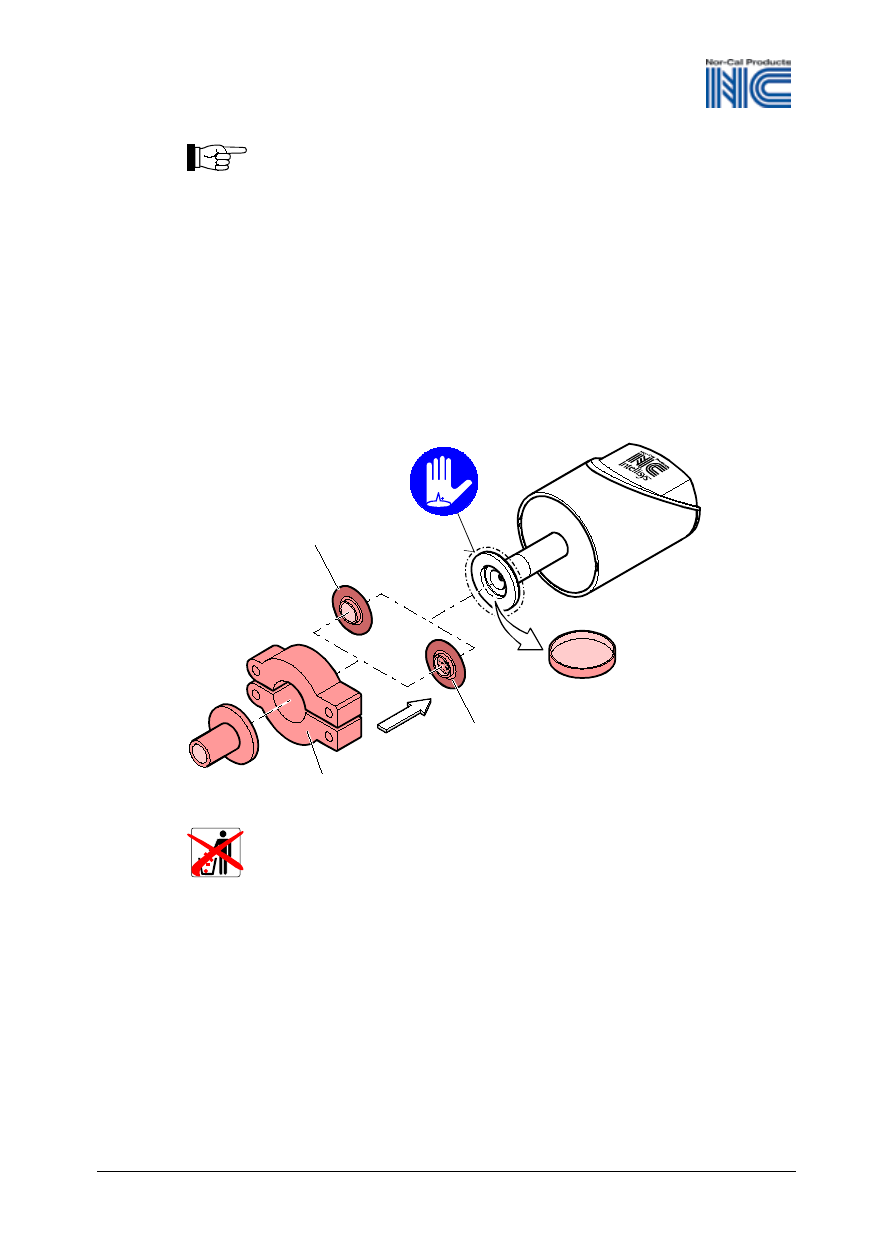

Remove the protective lid and connect the product to the vac-
uum system.
Clamp
Seal with centering ring
or
Seal with centering ring
and filter
Protective lid
Keep the protective lid.
