Mossberg 715T - Manual (Page 25)

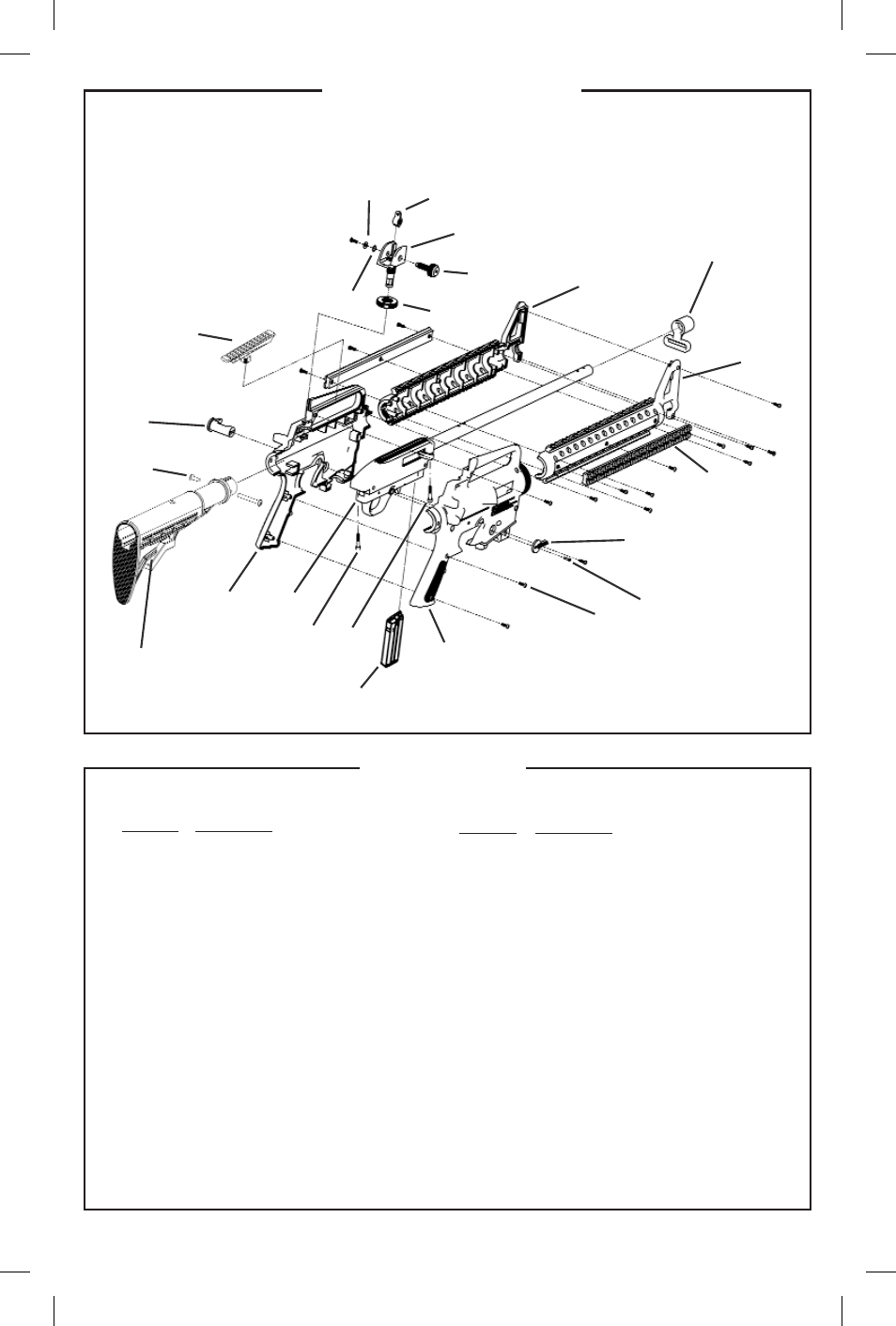

EXPLODED VIEW
702 With AR Shell
1
2
3
5
4
6
10
8
9
7
16
15
14
13
12
11
Item No. Description
1 Receiver shell right
2 Receiver shell left
3 Forearm right
4 Forearm left
5 Tactical stock assembly
6 Accessory rail (2 pieces)
7 Magazine release lever right
8 Magazine release lever left
9 Barrel band sling swivel
10 Rear sight elevation knob
11 Rear sight windage knob
Item No. Description
12 Rear sight elevation base
13 Rear sight aperture
14 Flat washer
15 Wave washer
16
Magazine Assembly
*17 Receiver and barrel assembly
18 Rear take down screw
19 Front take down screw
20
#2 Plastite TM screw
21 #4 Plastite TM screw (18 pieces)
22 Stock bolt (2 Pieces)
23 Scope mounting rail
PARTS LIST
Items marked with an asterisk (*) are reserved for qualified gunsmiths only.
17
18
25
19
21
20
22
23
EXPLODED VIEW
702 With AR Shell
1
2
3
5
4
6
10
8
9
7
16
15
14
13
12
11
Item No. Description
1 Receiver shell right
2 Receiver shell left
3 Forearm right
4 Forearm left
5 Tactical stock assembly
6 Accessory rail (2 pieces)
7 Magazine release lever right
8 Magazine release lever left
9 Barrel band sling swivel
10 Rear sight elevation knob
11 Rear sight windage knob
Item No. Description
12 Rear sight elevation base
13 Rear sight aperture
14 Flat washer
15 Wave washer
16
Magazine Assembly
*17 Receiver and barrel assembly
18 Rear take down screw
19 Front take down screw
20
#2 Plastite TM screw
21 #4 Plastite TM screw (18 pieces)
22 Stock bolt (2 Pieces)
23 Scope mounting rail
PARTS LIST
Items marked with an asterisk (*) are reserved for qualified gunsmiths only.
17
18
25
19
21
20
22
23
