14

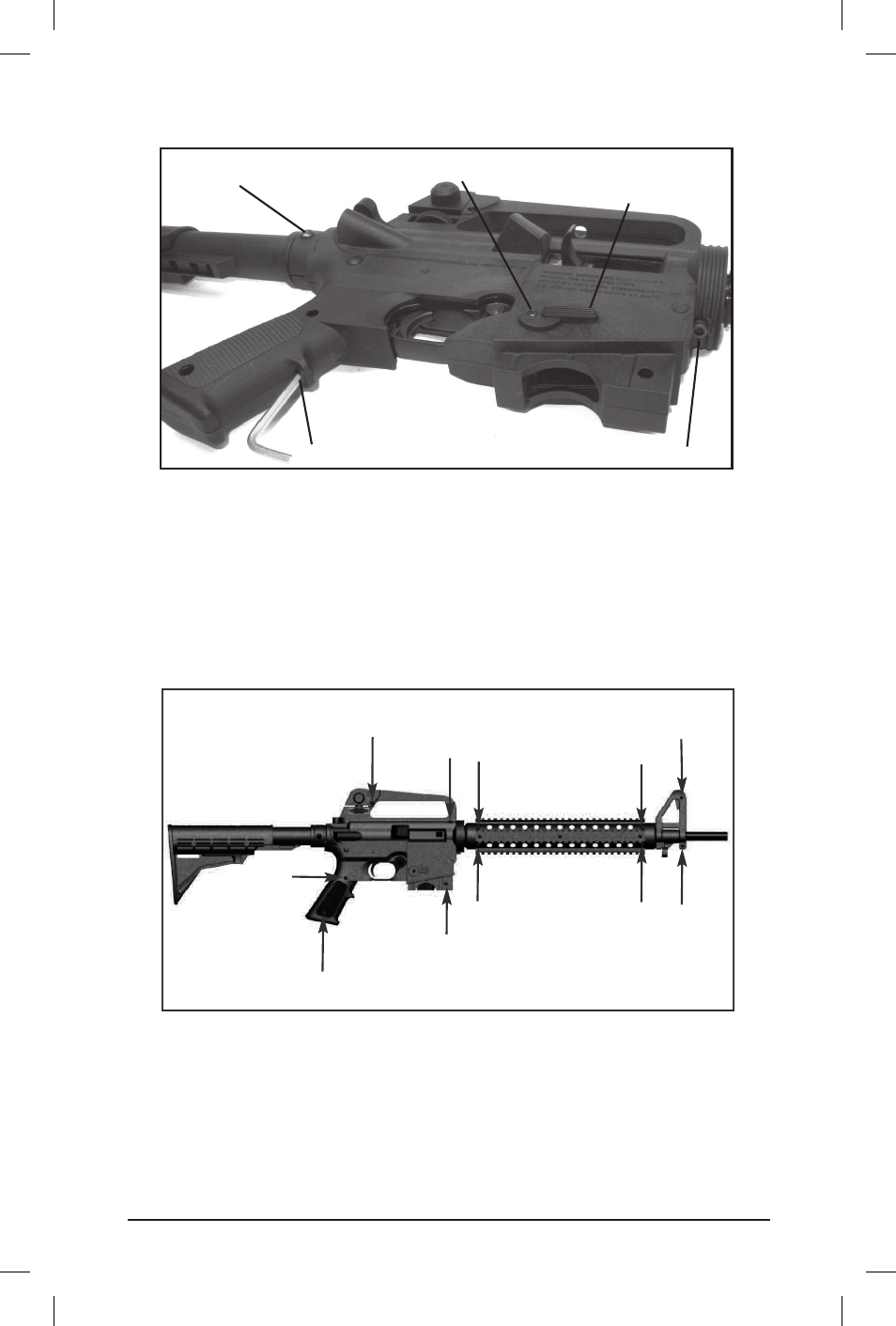

Fig. 10
Fig. 11
Remove the #2 Plastite TM screw and the right magazine release lever.
The left magazine release lever can now be removed. Remove the #4
Plastite TM screws from the right halves of the forearm and receiver shell.
(Fig. 11) Remove one side of the forearm, and then the other. The sling
swivel can be slid off of the barrel. Now separate the receiver shells
from one another. The action assembly can now be removed from the
receiver shell.
Rear Takedown Screw Front Takedown Screw
Stock Bolt
and engage with the heads of the takedown screws. (Fig. 10) Loosen the
takedown screws, but do not fully remove.
#2 Plastite
TM
Screw
Right Magazine Release Lever
14
Fig. 10
Fig. 11
Remove the #2 Plastite TM screw and the right magazine release lever.
The left magazine release lever can now be removed. Remove the #4
Plastite TM screws from the right halves of the forearm and receiver shell.
(Fig. 11) Remove one side of the forearm, and then the other. The sling
swivel can be slid off of the barrel. Now separate the receiver shells
from one another. The action assembly can now be removed from the
receiver shell.
Rear Takedown Screw Front Takedown Screw
Stock Bolt
and engage with the heads of the takedown screws. (Fig. 10) Loosen the
takedown screws, but do not fully remove.
#2 Plastite
TM
Screw
Right Magazine Release Lever
