Beta 1-8 LSC&
Beta 2-8 LSC&
11 Appendix
92
Version 04/2013, Rev. 1.1 of 16/12/2013 • sb
Translation of the original operating manual
Pos: 232 /20 0 Ch rist/3 61 G T-BA L abo r-Pilot (PROJEKTE)/Bet a 1 -8_ 2-8 LSCplus/ 110 An han g/0 110 -00 20 Ku rzbe dien ungs anleit ung Be ta @ 16\ mod _13 591 0672 756 6_6 8.d ocx @ 8084 0 @ 2 @ 1
11.2 Brief operating instructions

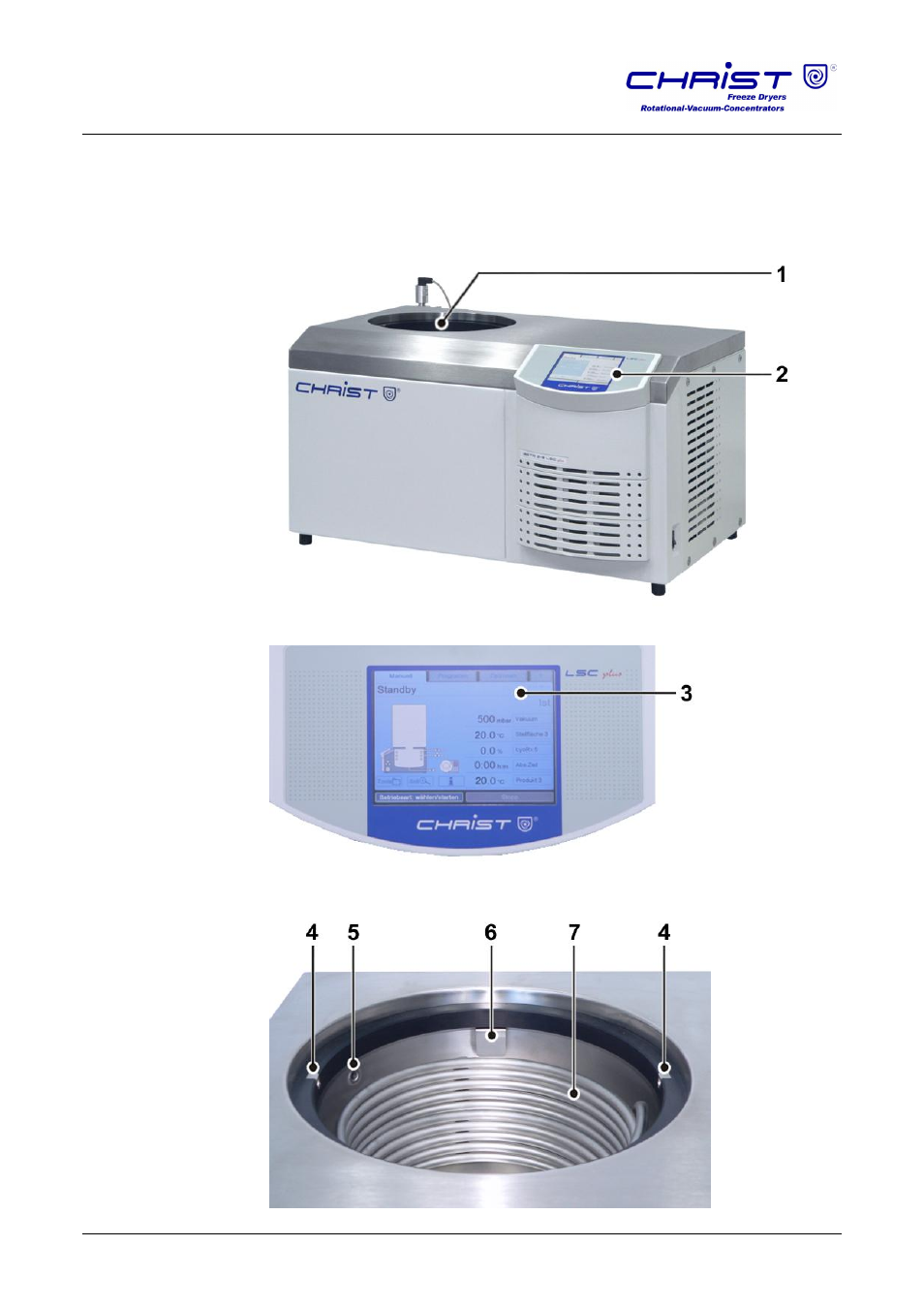

Functional and operating elements:
1
Ice condenser
chamber
2 LSC
plus
user interface
Fig. 75:
Total view of the freeze-
dryer
3
Touchpanel
Fig. 76:
User interface with touch
panel
4
Contact piece
5 Vacuum sensor
6 Pipe connection of the
vacuum pump (behind
the cover plate)
7 Ice condenser
Fig. 77:
Ice condenser chamber
