2 Layout and mode of operation
Version 04/2013, Rev. 1.1 of 16/12/2013 • sb
13
Translation of the original operating manual
11 Heat exchanger of the
refrigeration unit
12 Name plate (see
chapter 2.1.2 - "Name
plate")
13 Vacuum connection
14 Serial interface
15 Electrical connection of
the vacuum sensor
16 Connection of the
vacuum sensor
17 Power supply of the
pressure control valve
18 Power supply of the
vacuum pump
19 Option: USB port
20 Mains fuse
21 Mains cable
22 Equipotential bonding
screw

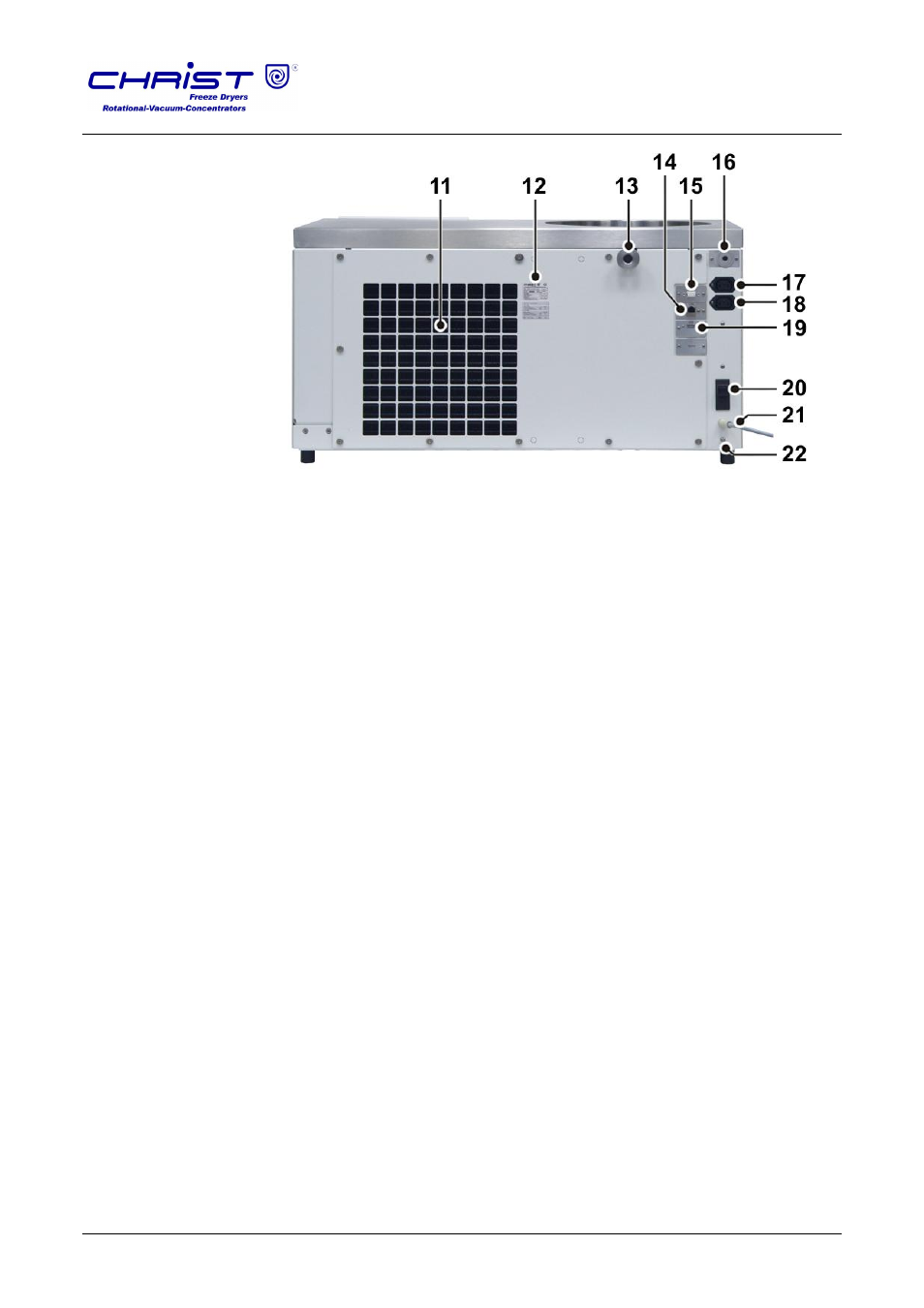

Fig. 6: Rear view of the
freeze-dryer
