4.3 Notes on transport
• Use suitable packaging for the transport, and if at all possible, the
original packaging.
• Install all transport safety devices (see chapter 4.5 - "Transport safety
devices").
• Over short distances, the freeze-dryer can be transported by a suitable
number of persons who reach under it from the sides.
• When lifting the freeze dryer, always reach under the freeze-dryer from
the side. Do not grab the unit at the plastic control panel (see figures
below).
correct incorrect

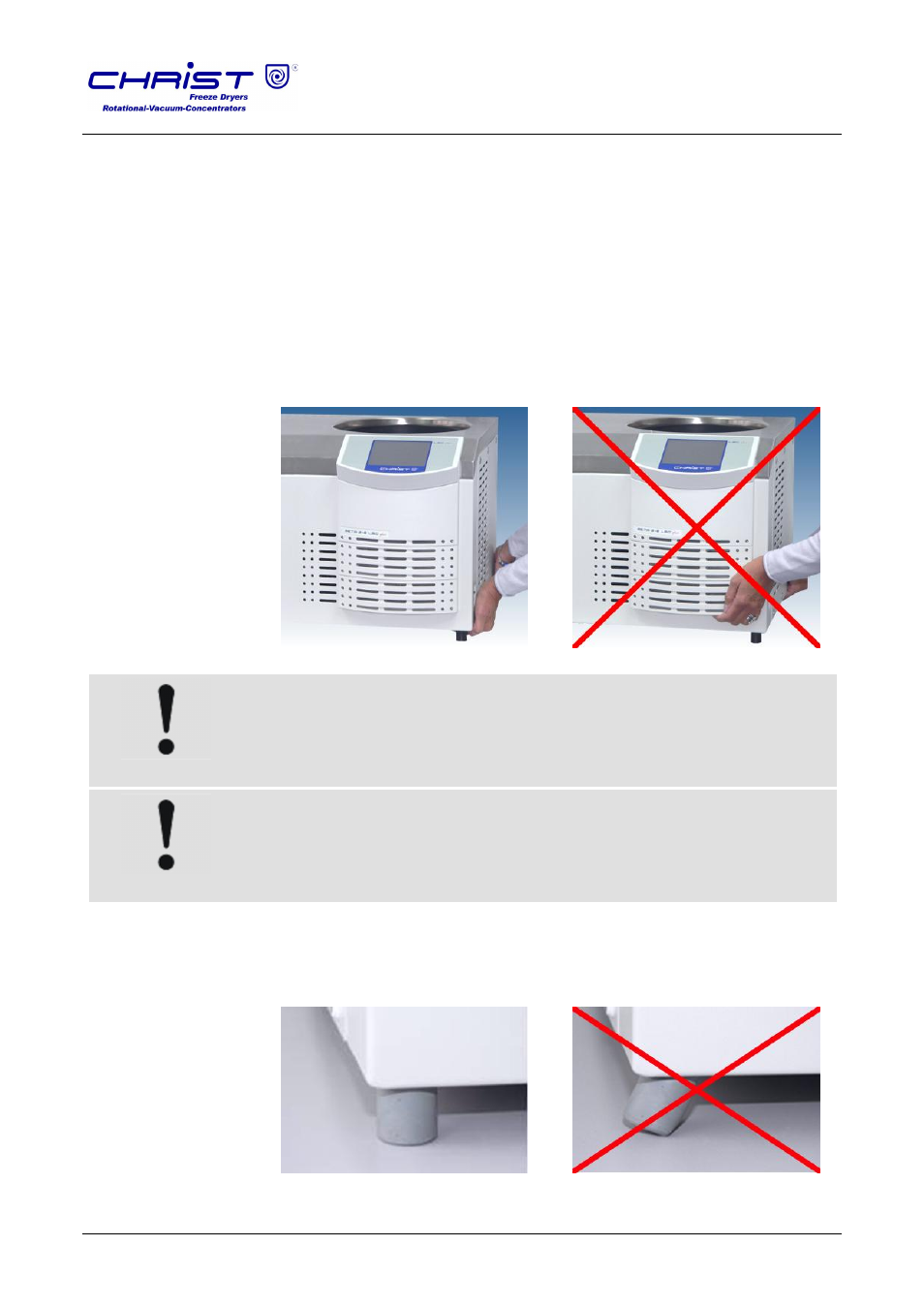

Fig. 13: Lifting the freeze-dryer
CAUTION
The freeze-dryer Beta 1-8 LSC
plus
weighs approx. 63 kg!
The freeze-dryer Beta 2-8 LSC
plus
weighs approx. 78 kg!
CAUTION
The centre of gravity of the freeze-dryer is off-centre!
• When setting the unit down, ensure that the feet are upright (see figures
below).
correct incorrect
Fig. 14: Unit feet
