Installer Guide
Installation
Unpack the shipping container. Save the container and packing materials incase they are needed
later. Place the VisionHDQ Video Processor on a component shelf and connect as described in the
Rear Panel section. The cooling vents must be clear of obstructions to provide for convection
cooling.
Install two AAA batteries in the remote control.
The following items should be included:
VisionHDQ Video Processor
Infrared remote control
External power supply
User manual
License agreement
Warranty card
RS232 null-modem cable for updating the VisionHDQ
Front Panel
NOTE:
The front panel LED does NOT stay on by default. To change the LED
function to stay illuminated to indicate “power-on,” see the “Front Panel
LED Function” section (page 26).
The front panel has an light-emitting-diode (LED) indicator, which will flash on to show command
activity (default). Alternately, the LED can be programmed by the user to remain illuminated
while power is on to serve as a “power-on” indicator. When the LED is set to “activity” it
illuminates for a short time after commands are received and then turns off to prevent it from
being an unwanted light source in the darkened theater. When the LCD light is set to “power” it
stays illuminated as long as the VisionHDQ is on, flashing off briefly when a command is
received.

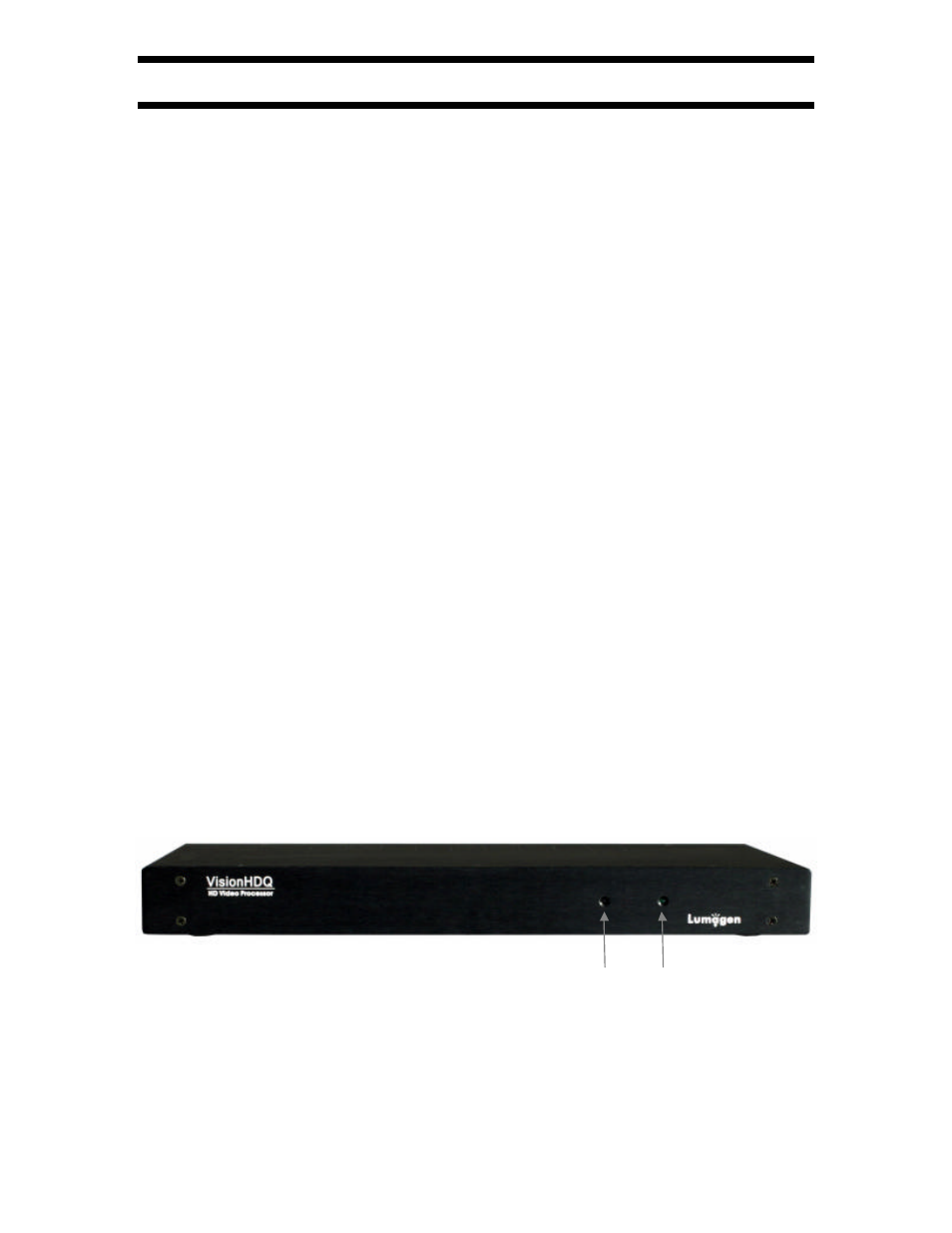

The front panel is shown below.
LED command
indicator IR sensor
