Lingenfelter L460015297 Lingenfelter LNC-001 Launch Controller v3.02 - Manual (Page 12)

Momentary
Pushbutton
Switch
Toggle Switch
Arms Linelock &
2-Step
Fuse
20 Amp
+12 Volts
Linelock
Solenoid
Ground

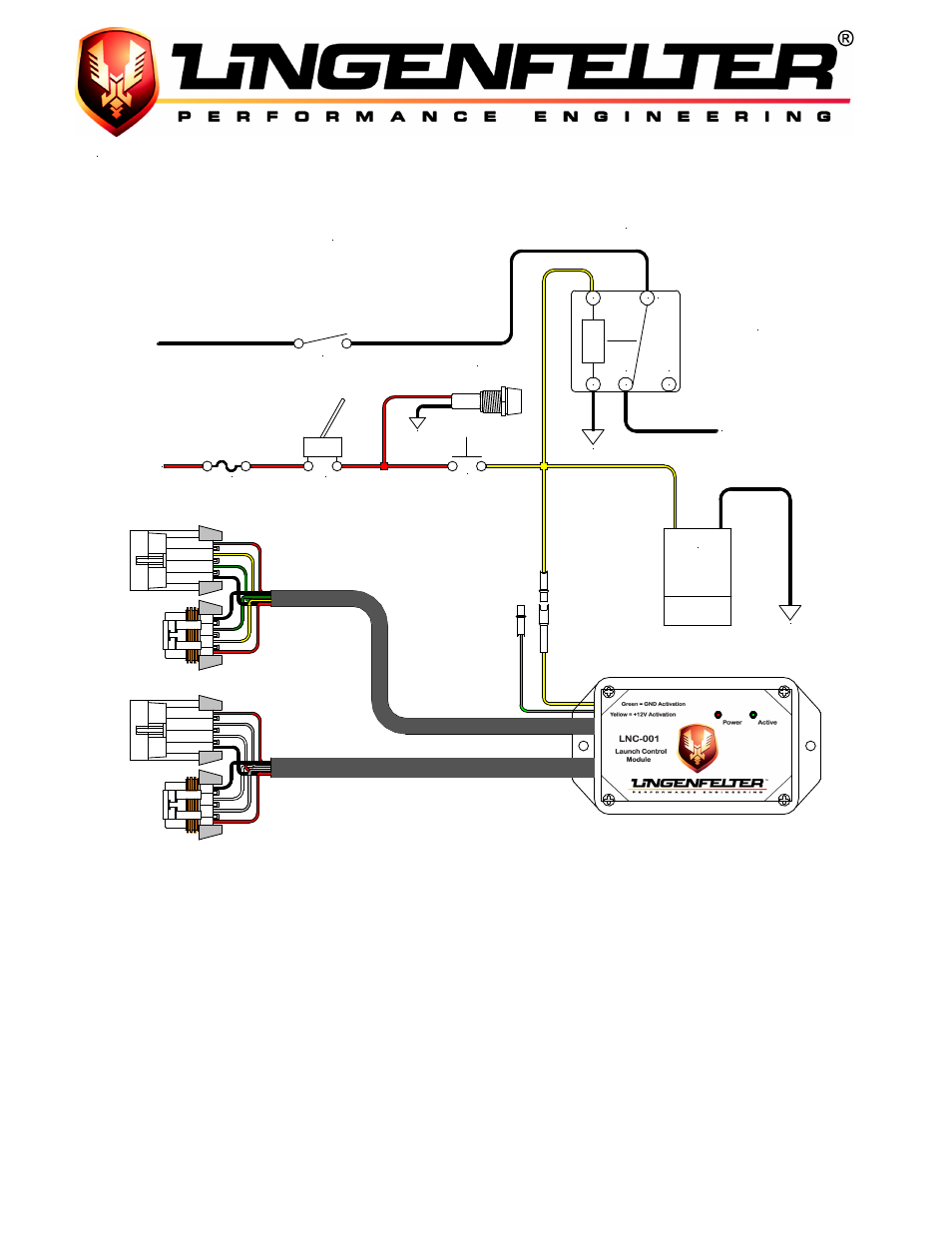

Automatic Transmission with Linelock and Nitrous
85
86
30
87 87a
C
NO NC
Ground
Wide Open Throttle
Switch
Nitrous Disable Relay.
The "Nitrous Disable Relay" is used to disconnect the
"Wide Open Throttle" switch from the Nitrous Relay.
This allows the throttle to go wide open while the
Linelock / 2-Step is Active and the Nitrous will
remain OFF until the Linelock is released.
Cut WOT Switch wire
and Install Relay as shown.
To Nitrous Relay
Ground
Optional LED, On when
Arming Switch is ON.
Page 11 of 13
