www.desatech.com 116200-01L 25
Installing 9-Volt Alkaline Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote
control unit.
2. Attach terminal wires to a 9-volt alkaline
battery (not included). Place battery into
battery housing.
3. Replace battery cover onto remote control
unit.
FIREPLACE INSTALLATION
Continued

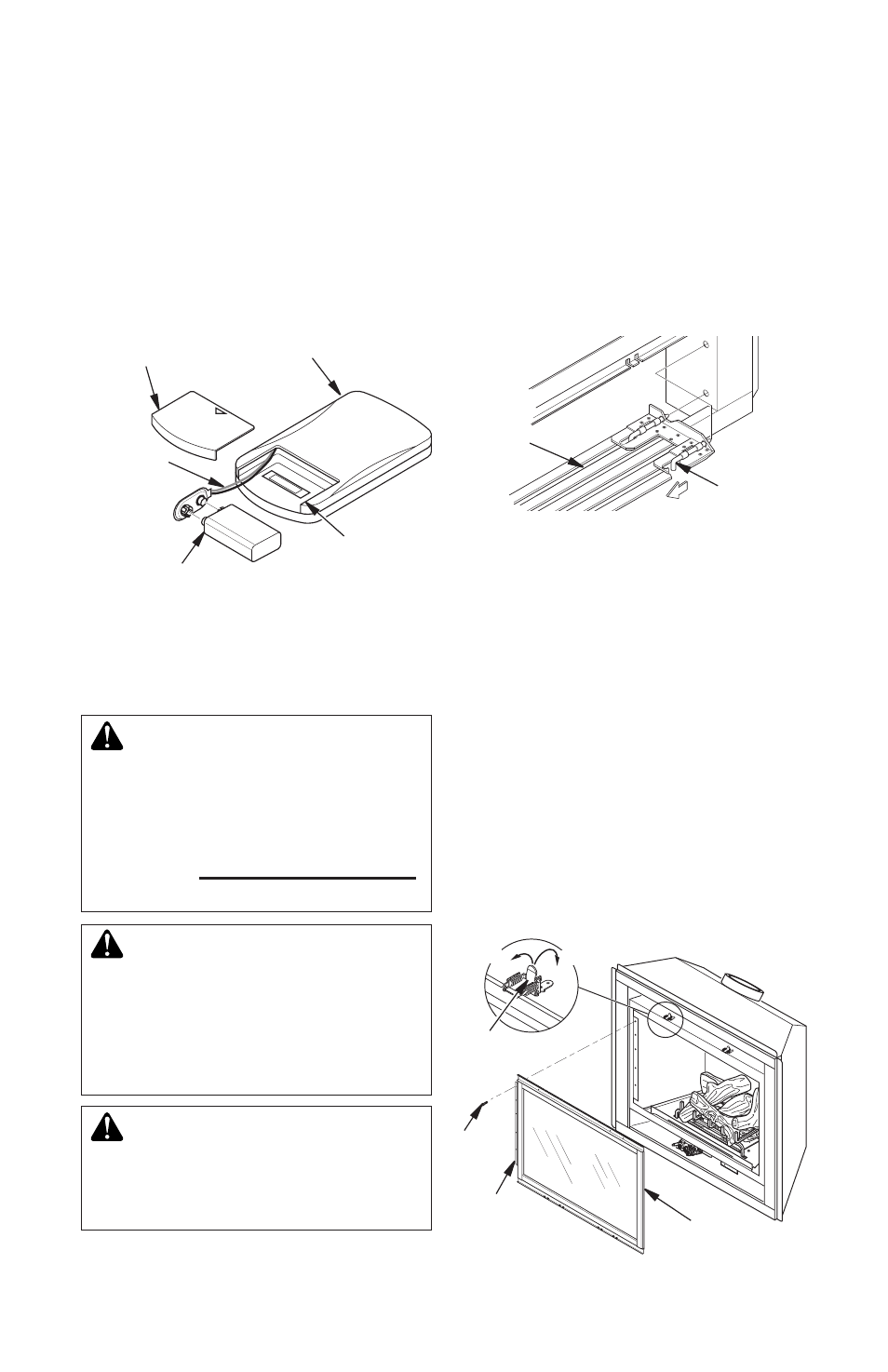

Figure 40 - Installing Battery in Hand-
Held Remote Control Unit
9-Volt
Battery
Battery
Housing
Battery Cover
Terminal
Wires
Remote Control Unit
REMOVING/REPLACING GLASS
DOOR
CAUTION: Do not operate
this fireplace with a broken glass
door panel or without the glass
door panel securely in place.
For replacement part informa-
tion see Replacement Parts,
page 37.
CAUTION: Wear gloves and
safety glasses while handling
or removing broken glass. Do
not remove if glass is hot. Keep
children and pets away from
glass.
WARNING: If fireplace has
been running, turn off and un-
plug fireplace. Let cool before re-
moving glass door or louvers.
Removing Louver Panels
Remove top and bottom louver panels by
simultaneously pulling both top end spring
latches towards center of appliance until
they are disengaged from locating holes
(see Figure 41). Repeat for bottom spring
latches and pull louvers outward. To install
or replace items removed, simply reverse
procedures above.
Figure 41 - Removing Louver Panel
Louver
Panel
Spring
Latch
Removing Glass Door
If replacement of glass is necessary, entire
assembly, glass and frame, must be replaced.
If glass is broken, wear gloves and tape re-
maining fragments onto frame.
1. Remove screen assembly by pushing rod
either left or right, then down and forward
to remove screen/rod assembly from
firebox. Set assembly aside.
2. Lift up on latches to unlock. There are
two on top of firebox and two below
firebox that hold glass door in place (see
Figure 42).
3. While holding glass door to prevent it
from falling and causing injury, remove 5
screws from hinge located on left side of
door frame assembly (see Figure 42).
Lock Unlock
Glass Frame
Assembly
Screw
Figure 42 - Removing/Replacing Glass Door
Hinge
Latch
