English – Konig Electronic Tone generator with amplifier probe User Manual
Page 2

2
ENGLISH
Tone generator and probe

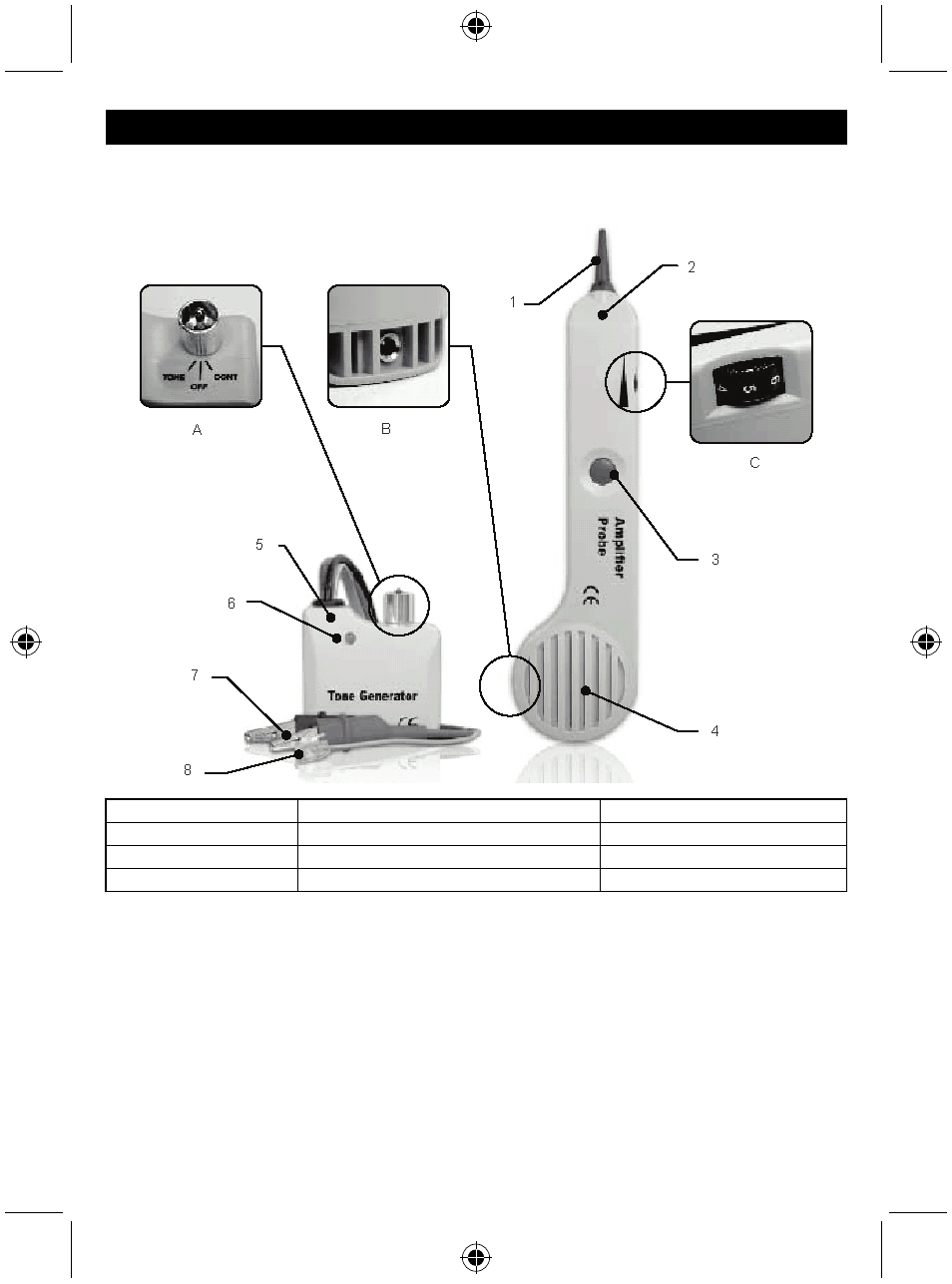

Device explanation:
1. Tip
5. Tone generator
A. 3 position toggle switch
2. Amplifier probe
6. DUAL COLOUR LED
B. Phone jack
3. Test button
7. Red and black test leads
C. Volume control
4. Speaker
8. 4 conductor modular cord and plug
Instructions:
• Overall
instructions:
1. Connecting the tone generator.
In terminated working cables:
Connect one test lead to a terminated wire and the other test lead to an earth or equipment
ground.
In unterminated or non-working cables:
Connect one test lead to an unterminated wire and the other test lead to another unterminated
wire.
2. Depress the round on/off button of the amplifier probe. The volume control switch can be
adjusted to suit the environment. Volume can be increased to overcome noise, or decreased to
reduce interference.
