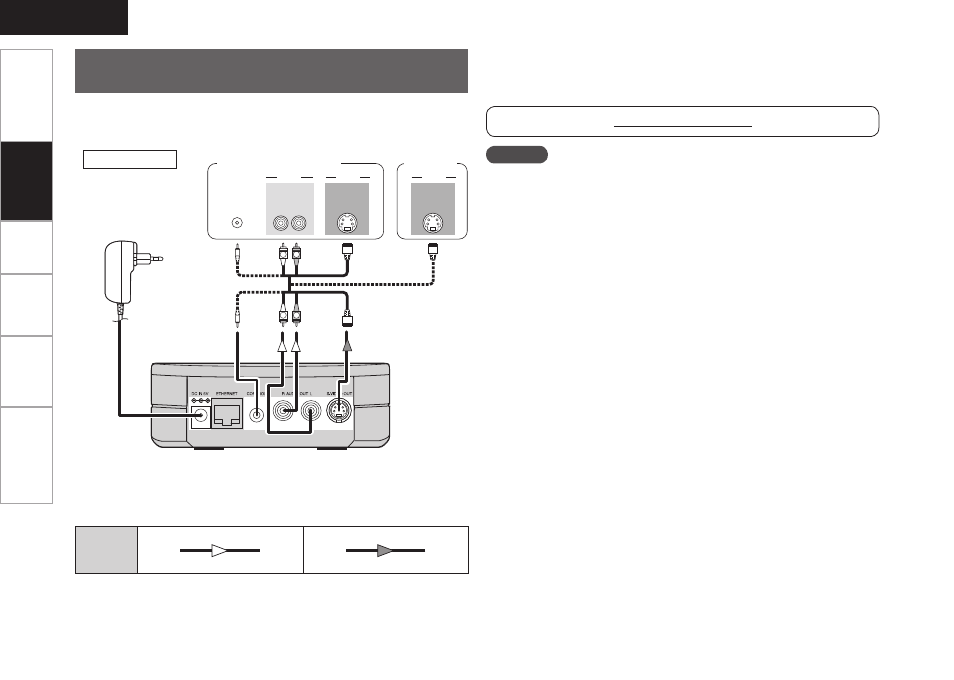

Connection to devices equipped with Dock
Control or LAN
b 2 ASD-3N can be operated from an amplifier or system device equipped with a
DOCK CONTROL terminal connected to the ASD-3N.
Features may be limited, depending on the device connected.
47*%&0
"6%*0 7*%&0
*/
"6%*0 %0$,
$0/530-
3 -
*/
R L
R L
47*%&0
7*%&0
*/
Monitor
Device equipped with
DOCK CONTROL terminal
AC 120 V, 60 Hz
(For U.S.A. &
Canada model)
AC 230 V, 50 Hz
(For Europe model)
AC outlet (wall)
b 1 When the AC adapter plug is inserted into the wall socket, this unit is powered.
At this time, the POWER indicator is illuminated, and after 15 ~ 20 seconds the
GUI screen is displayed in the monitor.
Latest compatible lists http://blog.denon.com/asd-3/.
Signal
direction
Audio signal
OUT IN
Video signal
OUT IN
NOTE
• When the DOCK CONTROL terminal is connected, the ASD-3N no longer
accepts remote control commands. To use the remote control unit, point it at
the remote control sensor on the connected device when operating it.
• Only connect equipment which is compatible with the DOCK CONTROL
terminal to the CONTROL terminal of the ASD-3N. Connecting non-compatible
equipment will result in a malfunction.
• While the AC adapter plug is inserted into the wall socket, this unit is in the
powered state. During absence or long periods without being used, please
withdraw the adapter plug from the wall socket.
or
Connections
The ASD-3N can be operated remotely using the supplied remote control. By
connecting to your existing equipment, you can play back your favourite music and
video files from your iPod or from over a network.
b 2 b 1
